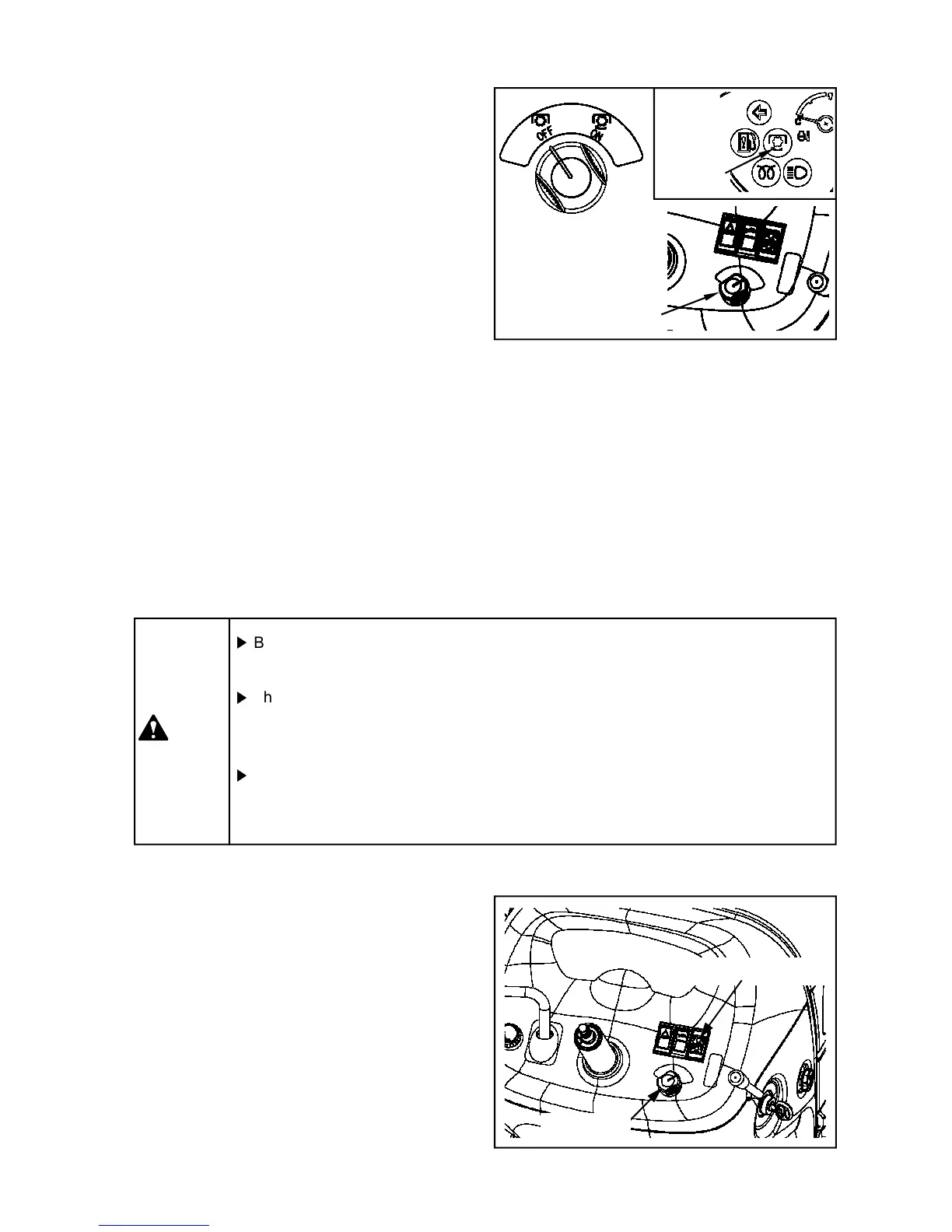

(15) PTO operation indicator
When the key switch is ON and PTO switch is
ON, this indicator will be ON.
PTO
operation
indicator
PTO switch
ON : PUSH AND TURN
OFF : PUSH
(16) PTO switch (Independent PTO)
The engine starts only when PTO switch is placed in OFF position for safety.
The engine starts only when PTO switch is placed in OFF position for safety.
After starting the engine, you must comply with the operation procedure of the PTO switch as follow.
1. Check the safety around the implement.
2. Turn the PTO switch to ON position to operate the PTO.
3. When the PTO is working, PTO operation indicator on the instrument panel shall be ON.
4. If you want to stop the PTO temporarily while operating, push the PTO switch to OFF position. The
PTO operation shall be OFF.
▶
Before attaching or checking the PTO driven equipment,
- Always place the PTO switch in OFF position.
▶
This independent PTO is working independently and has no relation with
movement or its speed of the tractor. This PTO speed changes with engine speed
and PTO gear lever (if fitted).
▶
Do not engage the PTO with the engine running at high speed. Sudden
engagement can cause damage to implement and tractor.
Engage PTO at low RPM, and then raise engine speed to high RPM.
Engage PTO at low RPM, and then raise engine speed to high RPM.
(17) PTO mode switch (if fitted)
If the upper side of the switch is pressed, it is
AUTO mode.
When the 3-point linkage is lifted, the PTO shaft
will be stopped automatically. If the 3-point
linkage lowered down, the PTO will rotate again.
If the down side of the switch is pressed, it is
Manual mode. When the PTO switch is ON and
PTO gear is engaged, the PTO shaft always
rotates.
PTO switch
PTO model switch
