BACKHOE INSTALLATION
⑤ Seat plate
⑥ Hardware
STEP 3.

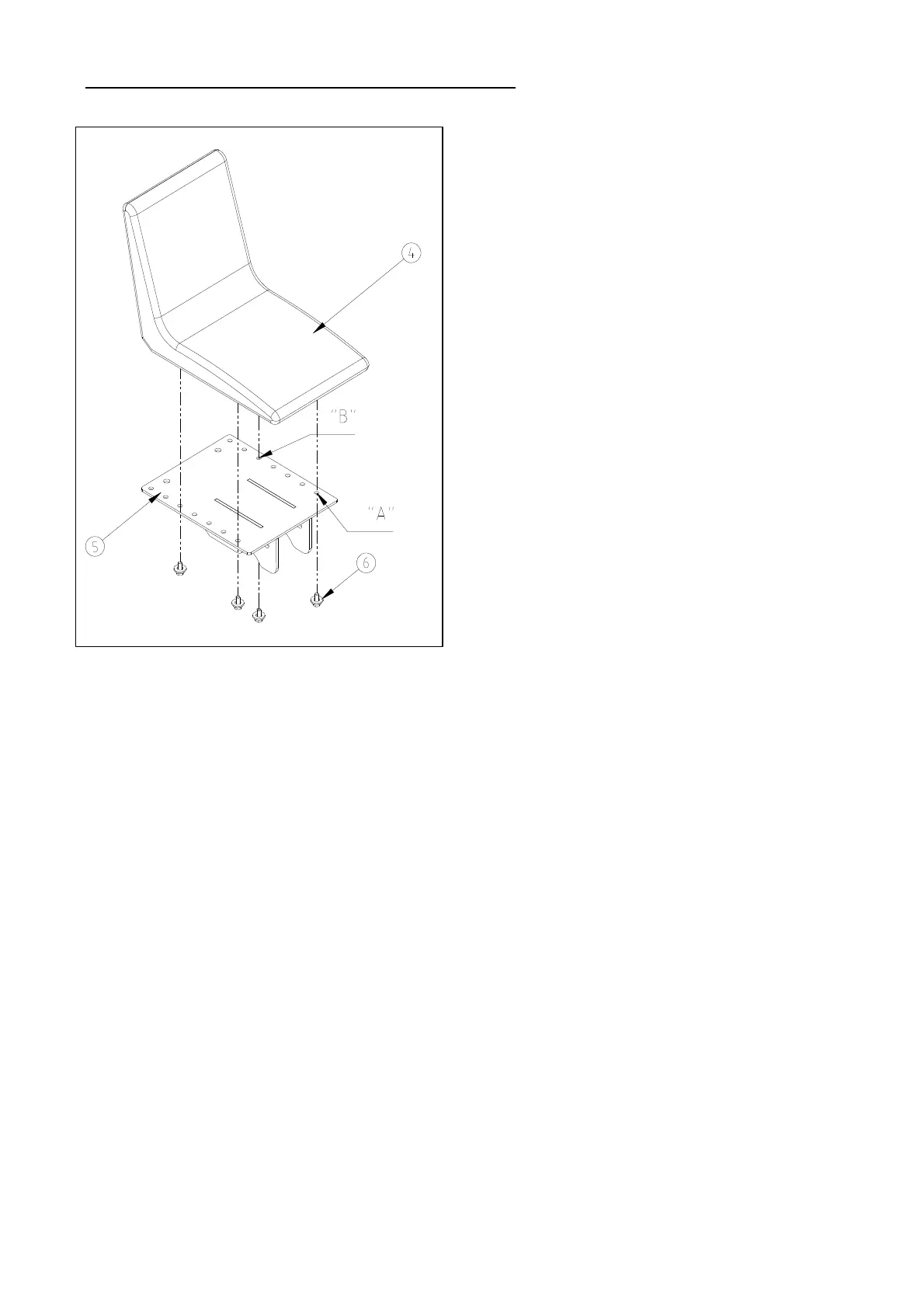

Assembl the Seat(④) and Seat plate(⑤) with packed hardware(⑥) as shown in drawing.
④ Seat
※ If the seat(②) not assembled at "A" and "B" holes it will interference with tractor.
- 29 -
