BACKHOE OPERATION
CAUTION :
CAUTION :

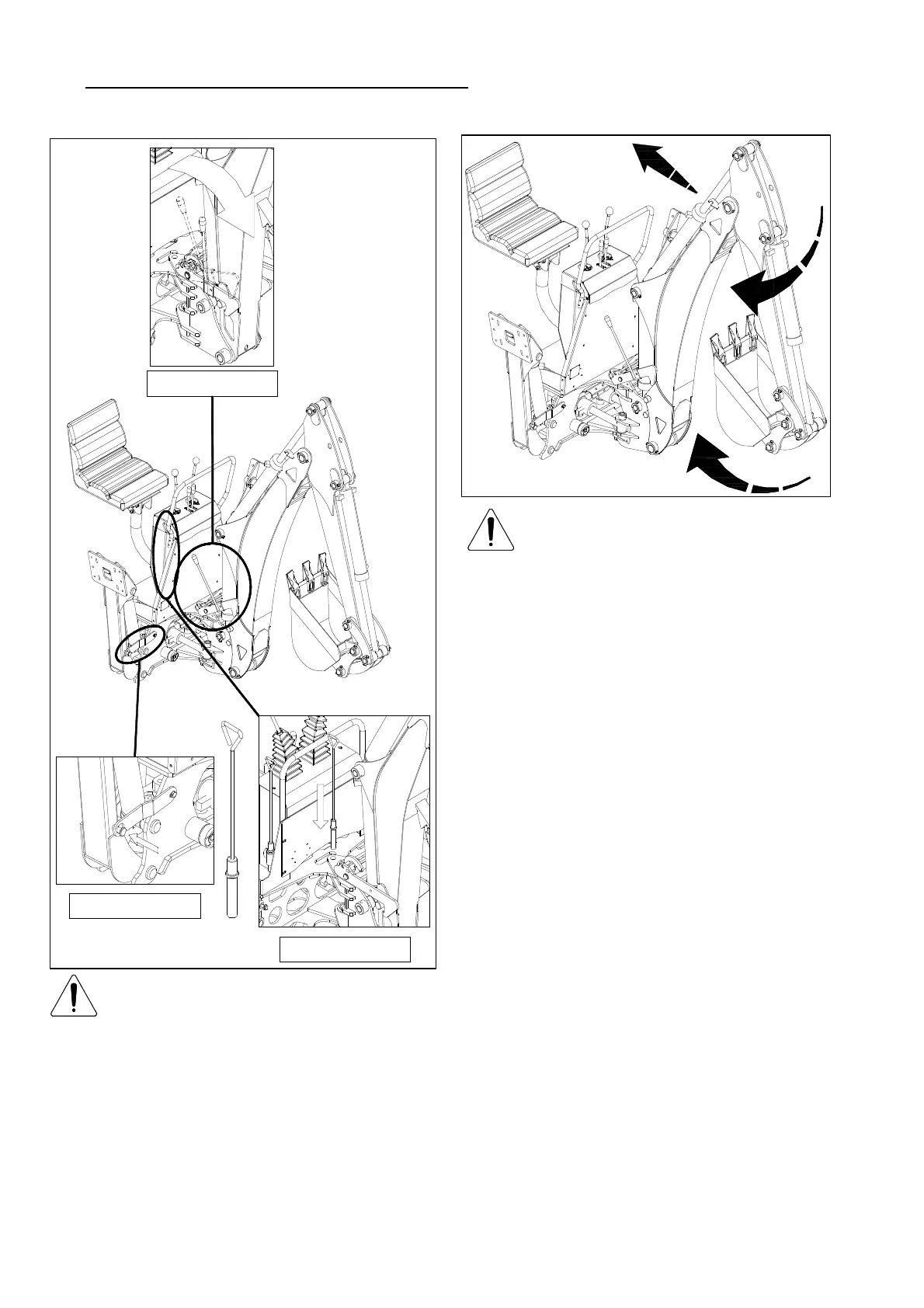

Swing Lock and Boom Lock
When transporting or detaching backhoe,
engage the stabilizer, boom and swing locks.
Always keep locking the stabilizer, boom and swing
locks while driving or using loader.
Transporting
Before transporting the machine, position
boom straight back and engage the boom lock lever
in boom. Swing backhoe to position in the middle of
swing and drop the pin through holes in swing frame.
When not in use, pull back boom lock lever and store
pin in hole provided on swing frame.
Boom Lock
Swing Lock
Stabilizer Lock
- 21 -
