HOW TO CONNET HYDRAULIC LINE
PART 4. Backhoe Hydraulic
STEP 1.
※ Hydraulic Line

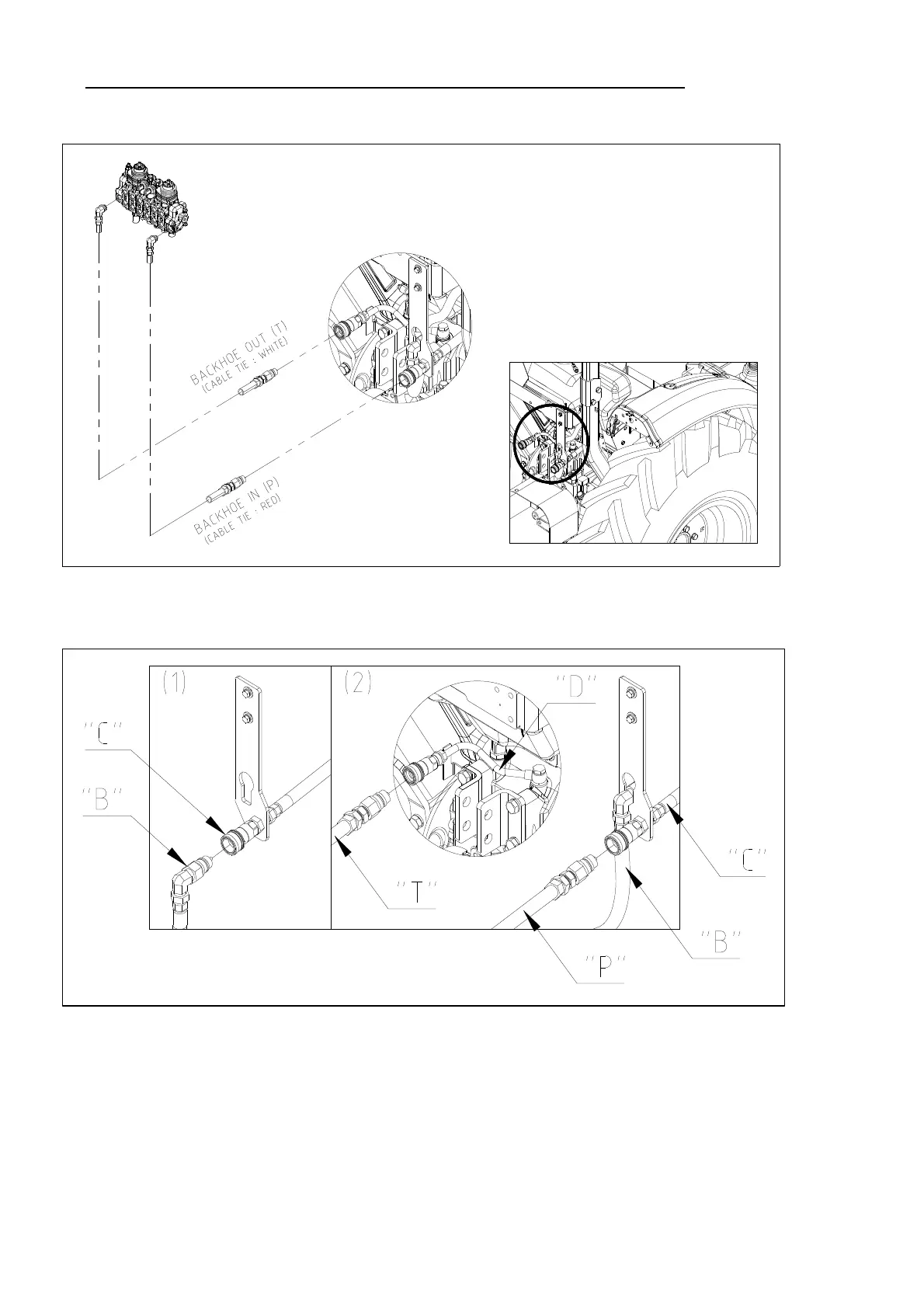

Connect the Backhoe hydraulic hoses P and T as shown in drawing.
- Loader only : Connect B to C.
- Loader and Backhoe : Disconnect B from C and make free hose B.
Connect backhoe P to C and connect backhoe T to D.
