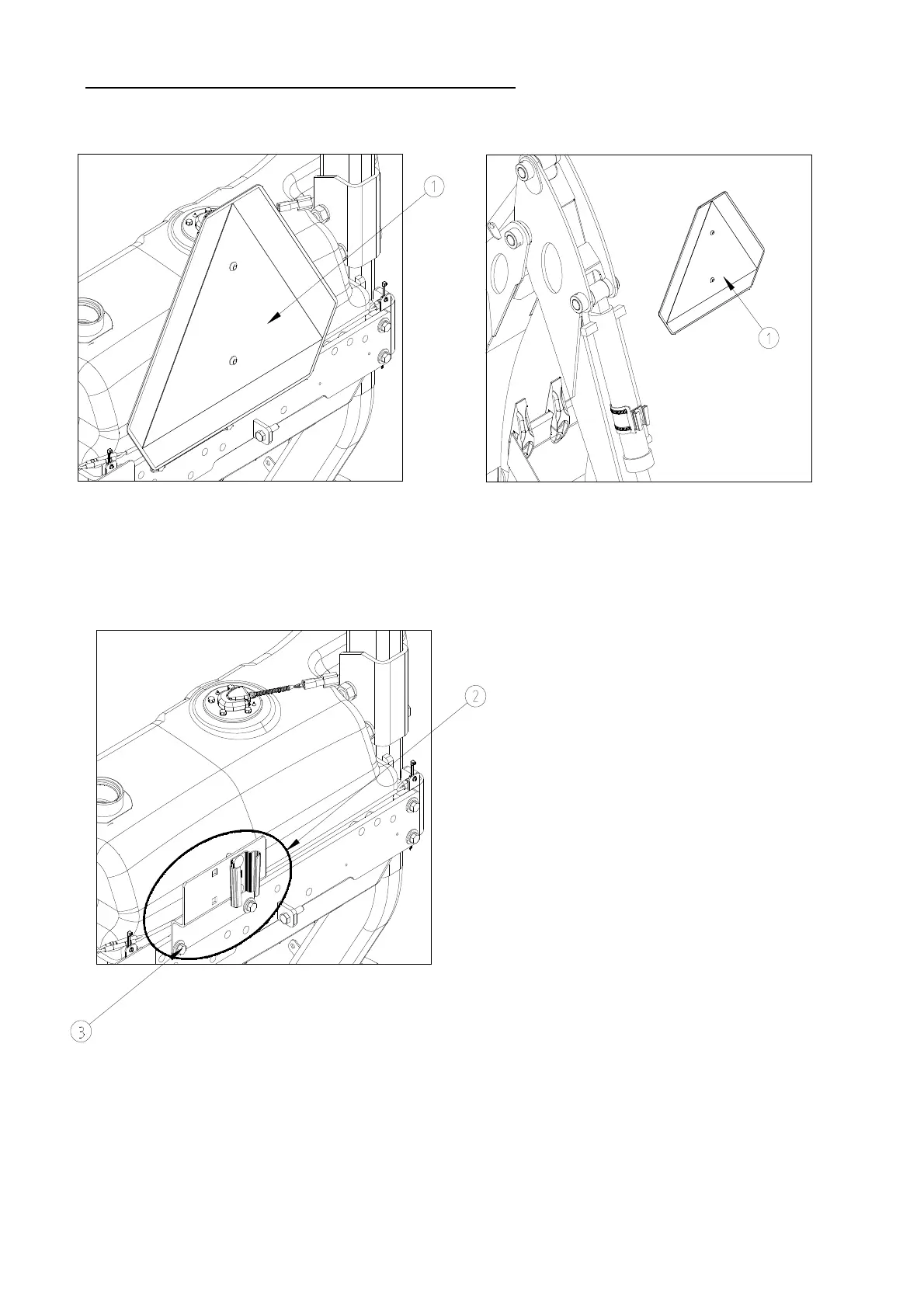

BACKHOE INSTALLATION
- MT345E/MT350E/MT355E
STEP 1.
② SMV bracket
③ Hardware
STEP 2.
① SMV Sign
Remove SMV sign(①) from rear of the tractor. This SMV sign should re-install to the
Remove Hardware(③) and SMV bracket(②) before install the backhoe.
※ If SMV bracket (②) not removed it will interference with backhoe.
- 28 -
