BACKHOE INSTALLATION
Important :
STEP 6.
Release the parking brake of the tractor, drive the
tractor backward slowly until the backhoe be pushed
slightly to the backward and set the parking brake of
the tractor.
STEP 8.

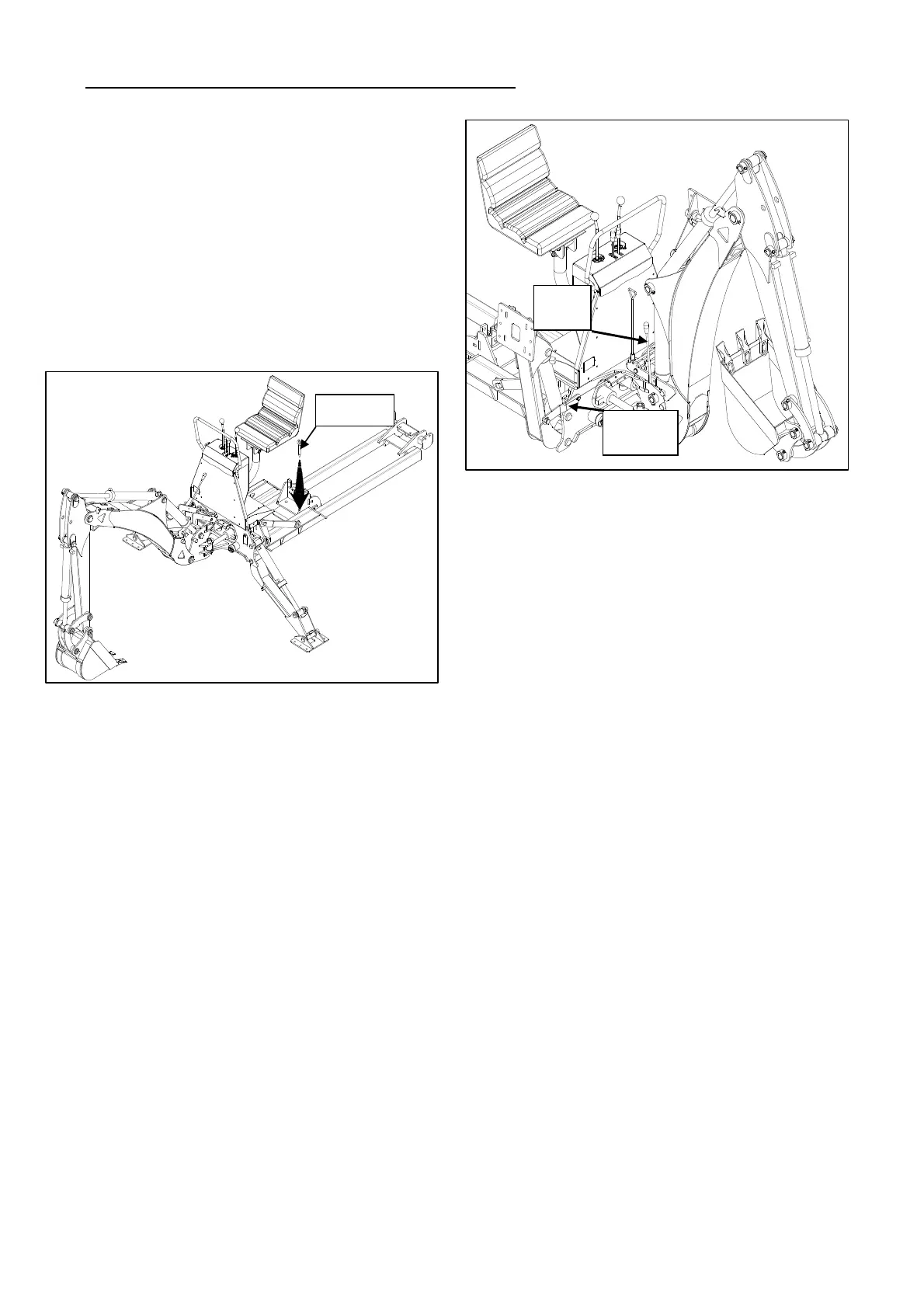

Make sure that the sub-frame installed correctly as
shown in below figure. If yes, Insert lock pins to lock
the sub-frame and install the ring pins to the lock
pins. If no, return to STEP 6.
STEP 9.
Raise the stabilizers and boom. Engage the boom
lock and stabilizer lock bars.
STEP 10.
Move the machine to an open area and cycle all
backhoe functions. This will check their operation and
flow oil back through the system, filtering it and
refilling each circuit. Check the hydraulic oil level
before putting the backhoe into full operation.
Grease at all grease nipples before operate the
backhoe as refer to "Lubrication and Maintenance"
section of this operator's manual.
Boom
Lock
Stabilizer
Lock
Lock Pin
- 27 -
