LSA Statement - Rear Panel Overview

L S A fàtàxÅxÇà I nt e g r a t e d A mp l if i e r

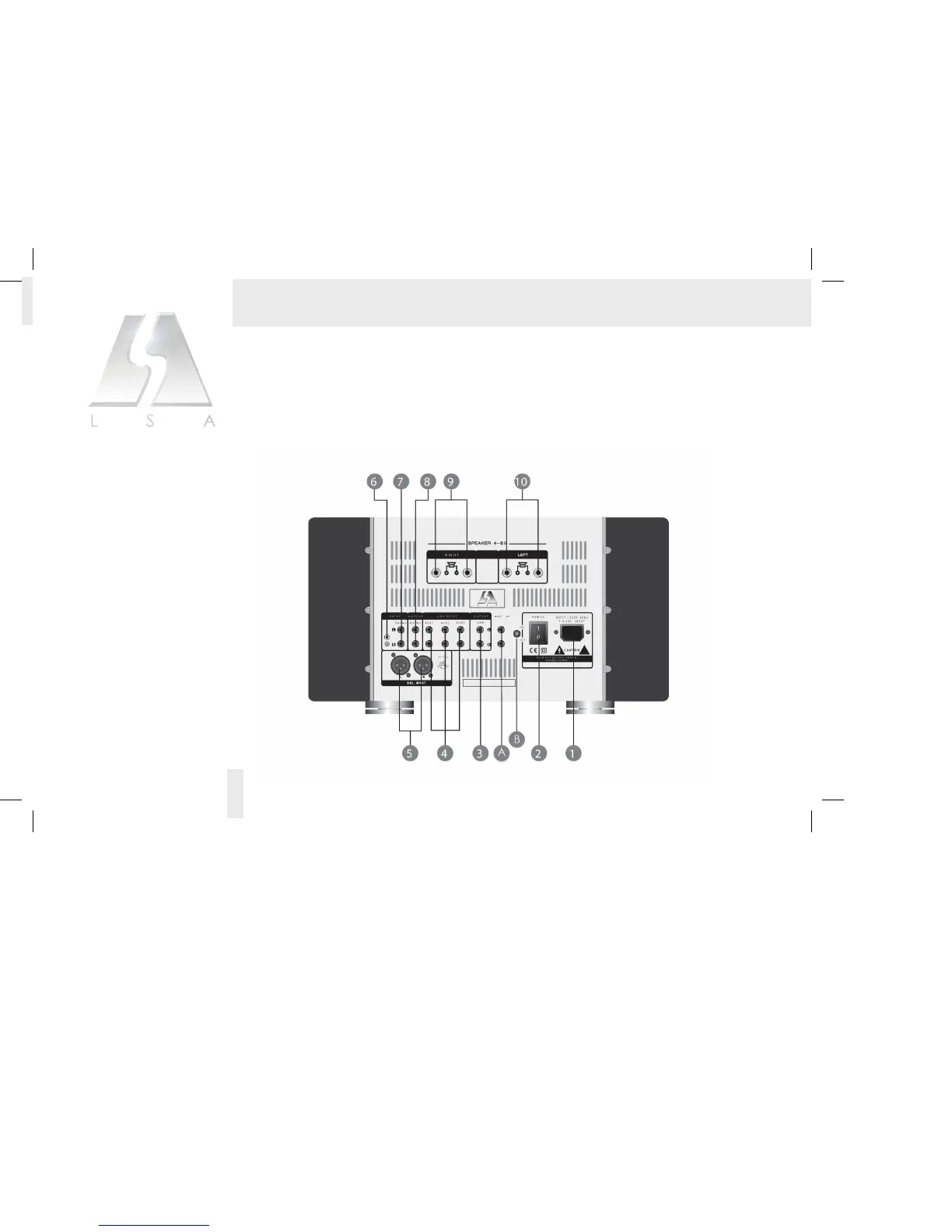

Rear Panel:
1. AC power input
2. POWER ON/OFF
3. LINE OUT
4. AUX1, AUX2, AUX3 INPUTS
5. BALANCED INPUT
A. POWER AMP INPUT (optional)
6. PHONO GROUND
7. PHONO INPUT
8. PHONO OUTPUT
9. SPEAKER OUT (right)
10. SPEAKER OUT (left)
B. INT/EXT PREAMP SWITCH
(optional)*
5
Note:
Make all connections before
turning on the power. Engage
STANDBY before turning off
the master switch
*Toggle switch
to up position
for integrated
amp use. Tog-
gle down to
connect exter-
nal preamp to
power amp
input.
