4

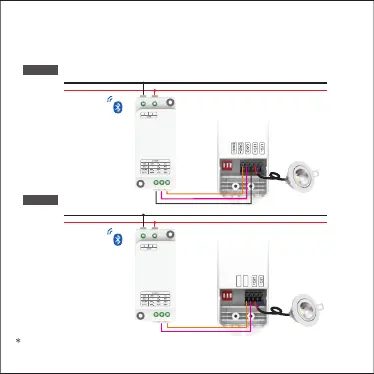

Wiring Diagram
DMX
Null line(N)
Live line(L)
DALI
Please confirm the output signal before you begin wiring(Default output signal is DMX). If you need
to change the output signal type, please connect the device to the network first using the APP, then
switch to the desired output signal (refer to Page 7 for details), and finally start your wire connection.
Null line(N)
Live line(L)
DA
DA
This module has the integrated DALI bus power supply.
DMX Driver
DALI Driver
CG-DA M-PRO
CG-DA M-PRO
