3. Safety Manual
3.1
Installation
Mount the pump firmly against the wall or on the flat stand or board. Use M8 screws and mount the pump
firmly with three screws. Anti-vibration rubber is recommended when the pump is exposed to vibration.
3.2
Wiring

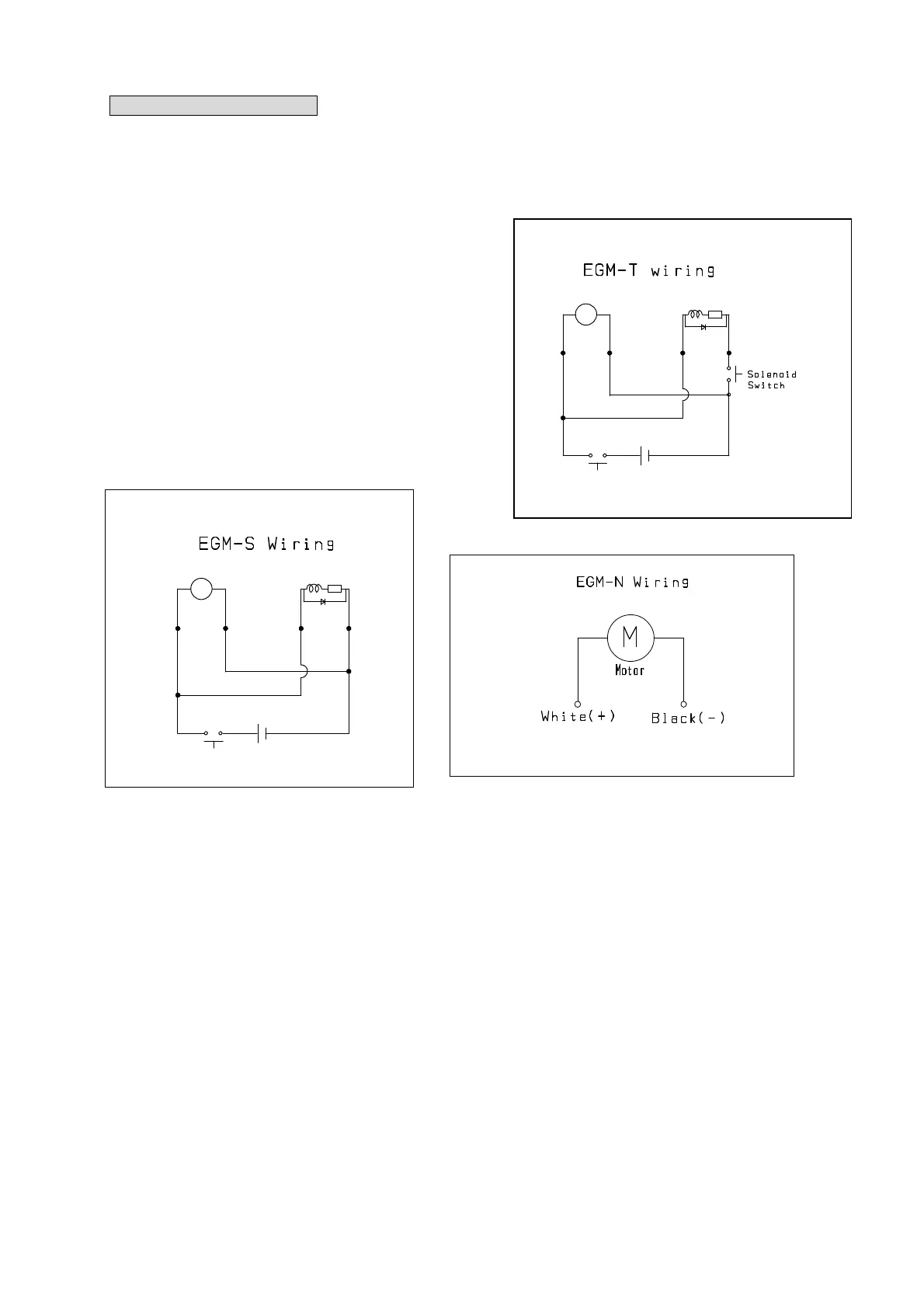

Wire Connection
1) Solenoid and motor (DC24V) have polarity (+, -).
Please pay attention to the color of the leads when
wiring. White (+), Black (-)
2 )When the wires may touch the machine body and /or
human body, please use insulated wires.
3.3
Tubing to the Discharge Port.
Connect tubing to the discharge port with a proper torque and make sure that there is no
grease leaking.
3.4
Grease to be Use and Refilling
(1) Grease to be Used
Use only grease cartridge specified in 2.1.
The use of the other grease could cause trouble with pump and/or clogging.
(2) Refilling - Cartridge Type
When the end of the cartridge comes down to the low level, please replace the cartridge.
Cartridge is NOT recyclable. Never refill grease into the cartridge. Cartridge may burst.
Please refer to 3.8. Replacement of the Cartridge and make sure that no air and/or
foreign particle is introduced into the pump during replacement.
M
（＋）
Black（－）
White（＋）
Black（－）
Motor
Solenoid
Main Switch
ＤＣ２４Ｖ
M
White（＋）
Black（－）
White（＋）
Black
Motor
Solenoid
Main Switch
ＤＣ２４Ｖ
To Next Page
