363-205-401 Power Up: DLP-505
Issue 7, March 1997 Page 3 of 6

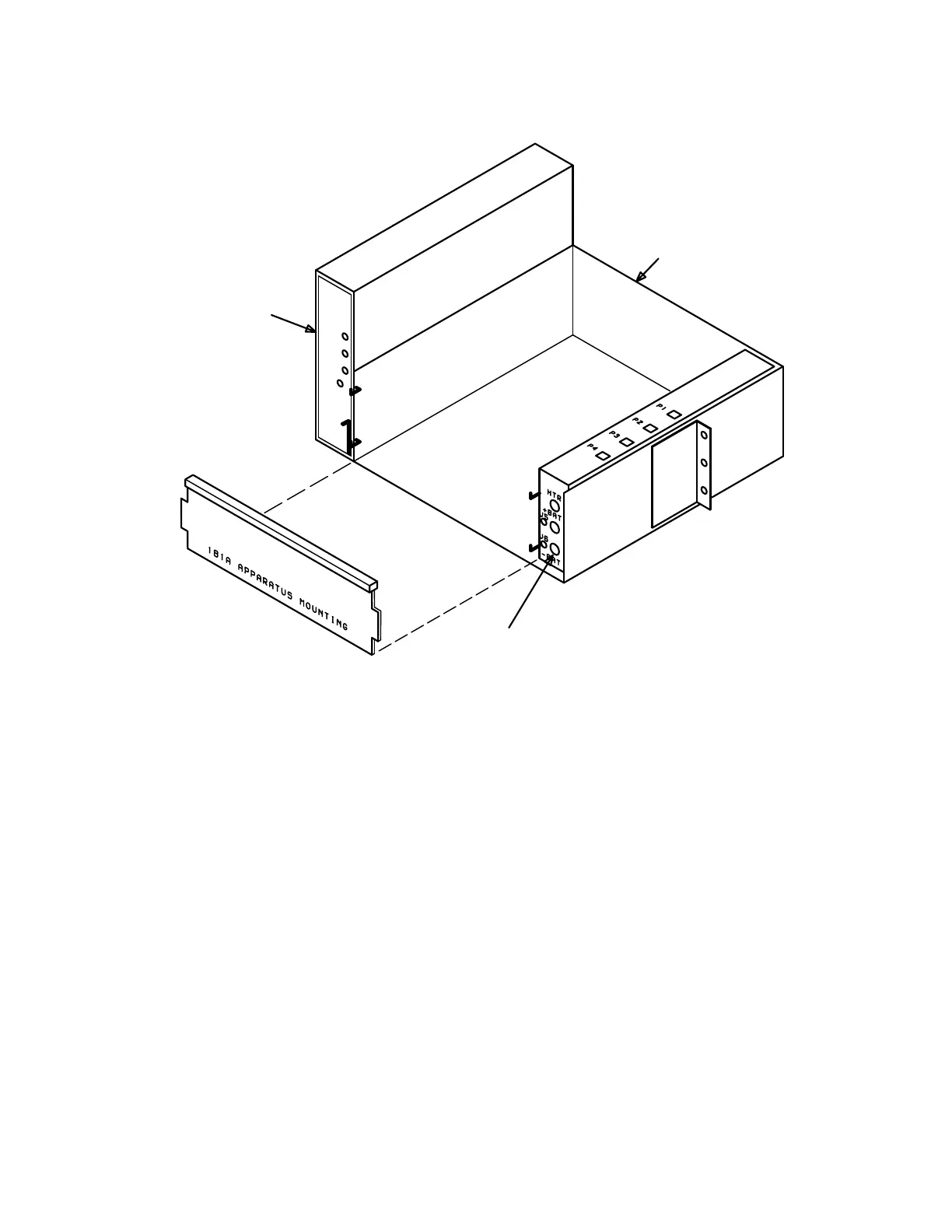

Figure 3 – Battery Shelf
7. Does DMM indicate between −42 and −56 volts?
If
YES,
then proceed to Step
20.
If
NO,
then continue with Step
8.
8. Check wiring between battery shelf being equipped with
BATTERY
CHARGER
and the power shelf. (Refer to SD-7C119-01.)
9. Is wiring present and properly connected?
If
YES,
then proceed to Step
11.
If
NO,
then continue with Step
10.
FUSES
MOUNTING
APPARATUS
181A
CHARGER
BATTERY
337A
