Lucent Technologies SLC 5 Series - Page 150

363-205-401 Power Up:
Issue 7, March 1997 Page 1 of 2
DLP-515
Add 336A Rectifiers to Existing J1C182BA Power
Shelf
1. Get required number of
336A RECTIFIER
s and inspect for possible physical
damage.
2. Verify that fuse on
336A RECTIFIER
(s) (Figure 1) is not blown.
3. Insert one
336A RECTIFIER
into first vacant
RECT
slot (counting right to left)
in power shelf.
4. Is another
336A RECTIFIER
to be installed?
If
YES,
then repeat from Step
2.
If
NO,
then
STOP. YOU HAVE COMPLETED THIS PROCEDURE.

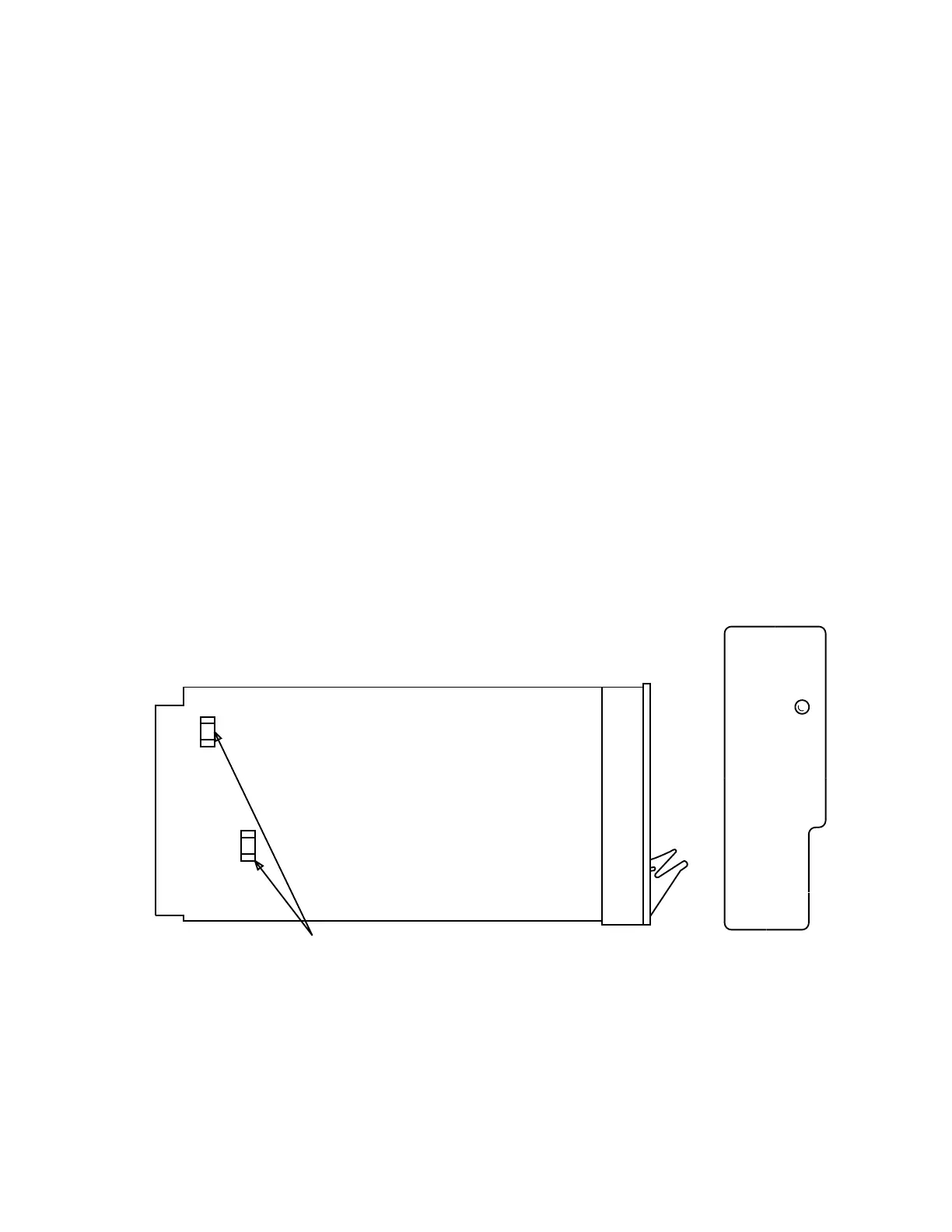

Figure 1 – Location of Fuse on 336A RECTIFIER
ALARM
336A
RECTIFIER
FUSES
Lucent
