Lucent Technologies SLC 5 Series - Page 170

Power Up: DLP-522 363-205-401
Page 2 of 8 Issue 7, March 1997

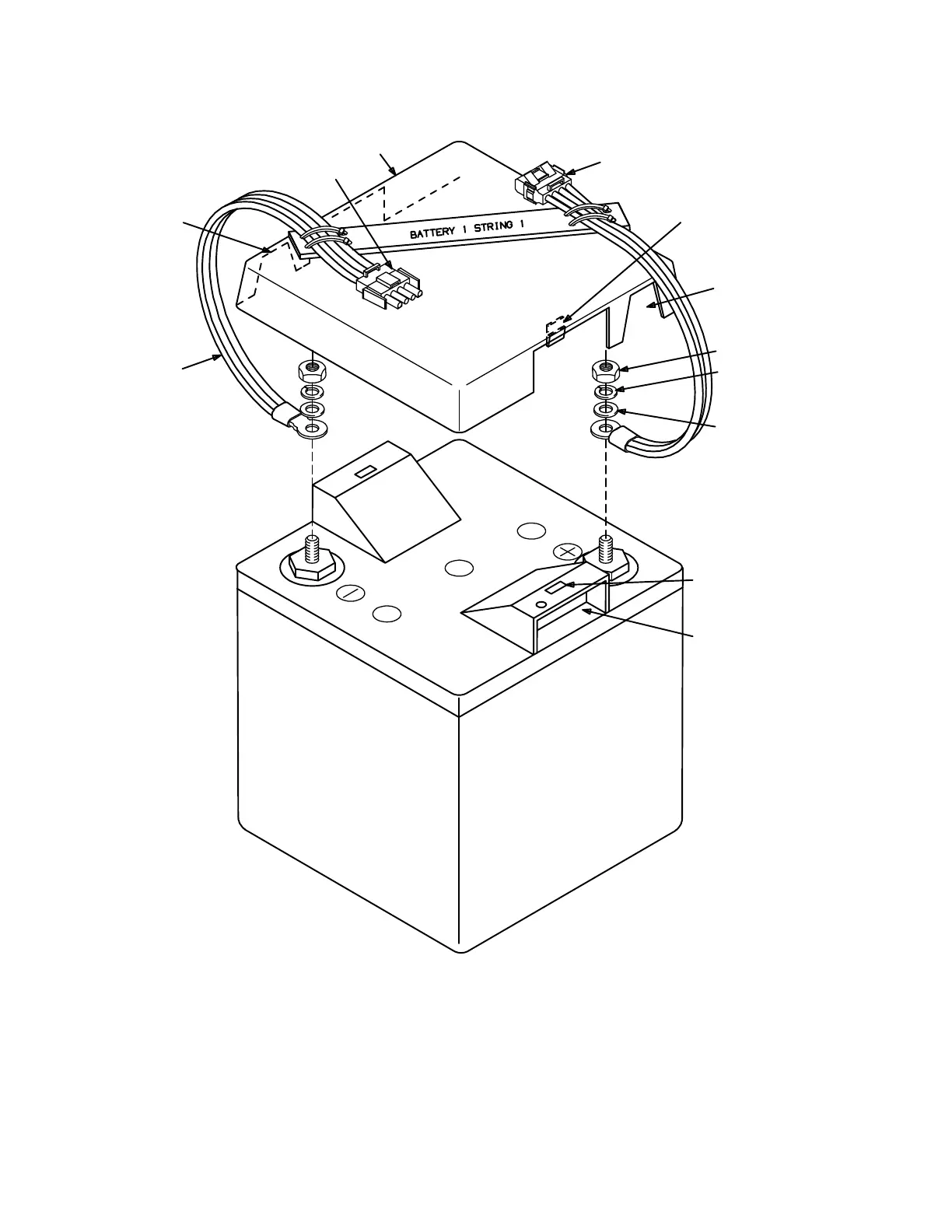

Figure 1 – Detail of Chloride Batteries and Cable Assembly
HARDWARE
TERMINALS AND
CABLE LUGS, BATTERY
OR EQUIVALENT TO
PETROLEUM JELLY
NOTE: APPLY
BATTERY
CHLORIDE*
RELEASE
ACCESS TO
COVER LATCH
SLOT FOR
COVER LATCH
CABLE
CUT-OUT
FOR CABLE
ASSEMBLY
ASSEMBLY
LOCK WASHER
CUT-OUT
SPRING
ASSEMBLY
FOR CABLE
NUT
FLAT WASHER
LATCH
COVER
BAT (+)
COVER
BAT(-)
