Lucent Technologies SLC 5 Series - Page 39

363-205-401 Acceptance: DLP-503
Issue 7, March 1997 Page 1 of 2
Visually Inspect AC Powering, Grounding, Copper
Termination, and Fiber Termination at 900A1 Distant
Terminal
1. Verify that 900A1 distant terminal (DT) closure, network interface unit (NIU),
and AC power outlet have been properly mounted to wall of structure (Figure
1).

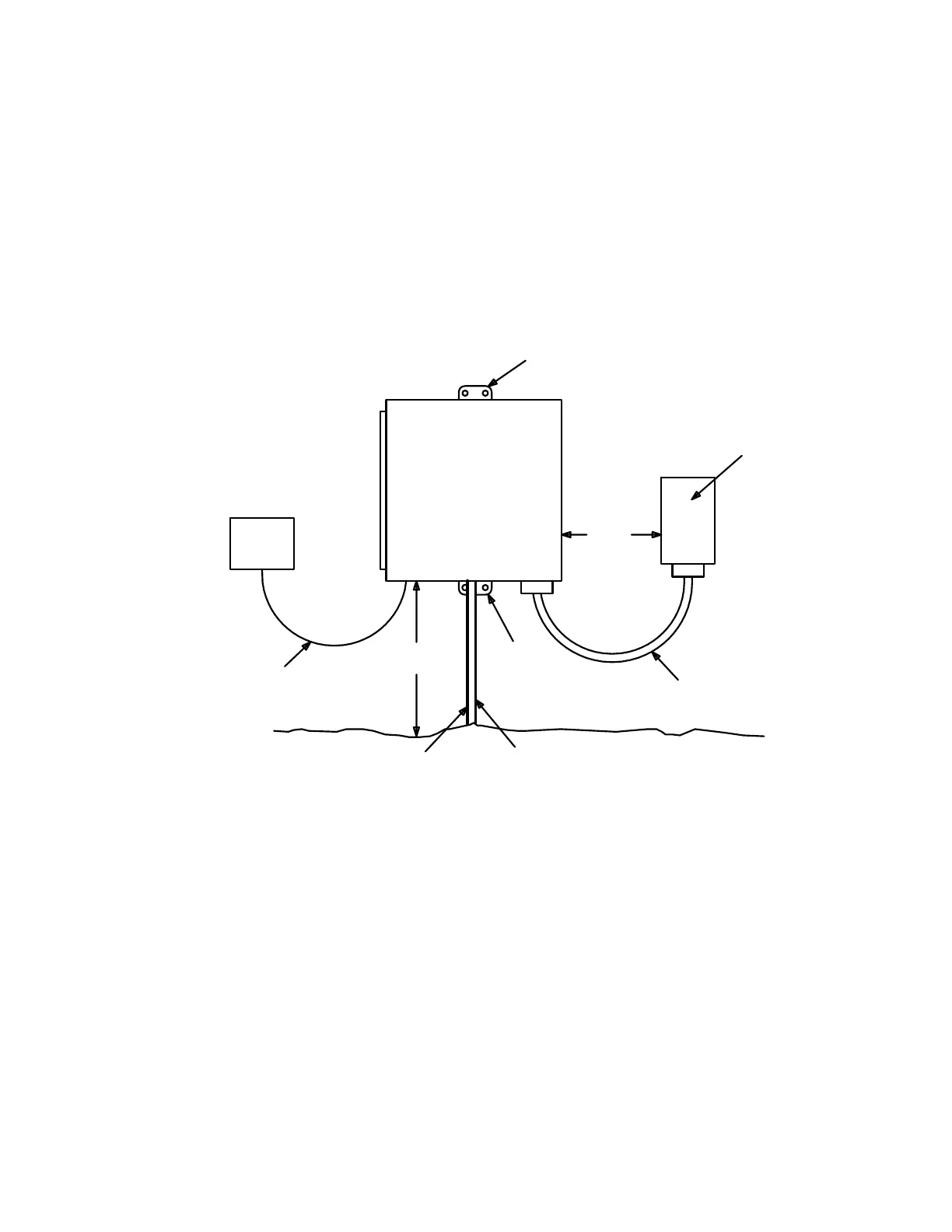

Figure 1 – DT Equipment Arrangement
Station
4 1/2 - 5 FT.
Tab
Mounting
Bottom
6 IN.
cord (3 FT.)
AC Power
Top Mounting Tab
(Preferred)
NIU
Outlet
AC
Ground WireFiber Only Drop
Wire
Approx.
DT
