363-205-401 Power Up: DLP-502
Issue 7, March 1997 Page 3 of 6

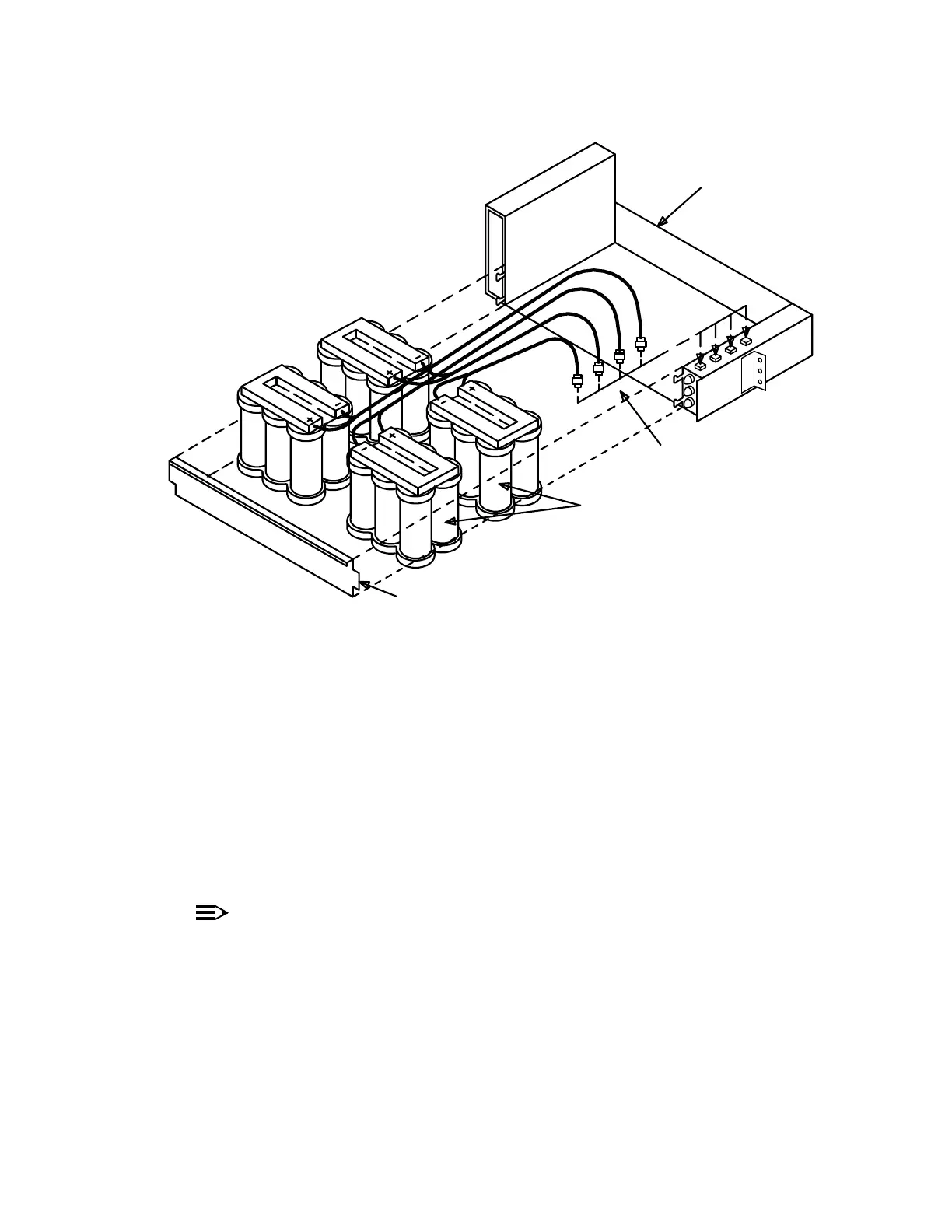

Figure 2 – Battery Placement and Connections
6.
NOTE:
Four battery lead jacks can be plugged into any of four plugs on battery
shelf, in any order.
Connect four battery lead jacks to four plugs (
P1, P2, P3,
and
P4
) on battery
shelf being equipped and dress battery cables.
7. Reinstall front cover on battery shelf.
SHELF
BATTERY
FRONT COVER
BATTERIES
KS-21906, L4
LEAD JACKS
BATTERY
ED7C678-( )
