363-206-285 Circuit Order: NTP-029
Issue 2, February 2000 Page 17 of 22
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED . . . . .FOR DETAILS, GO TO
23. At Node 1, remove optical splitter output from MAIN 1 IN and
connect optical fiber from Node 2 MAIN 2(P) OUT to Node 1
MAIN 1 IN. (See Figure 13.)

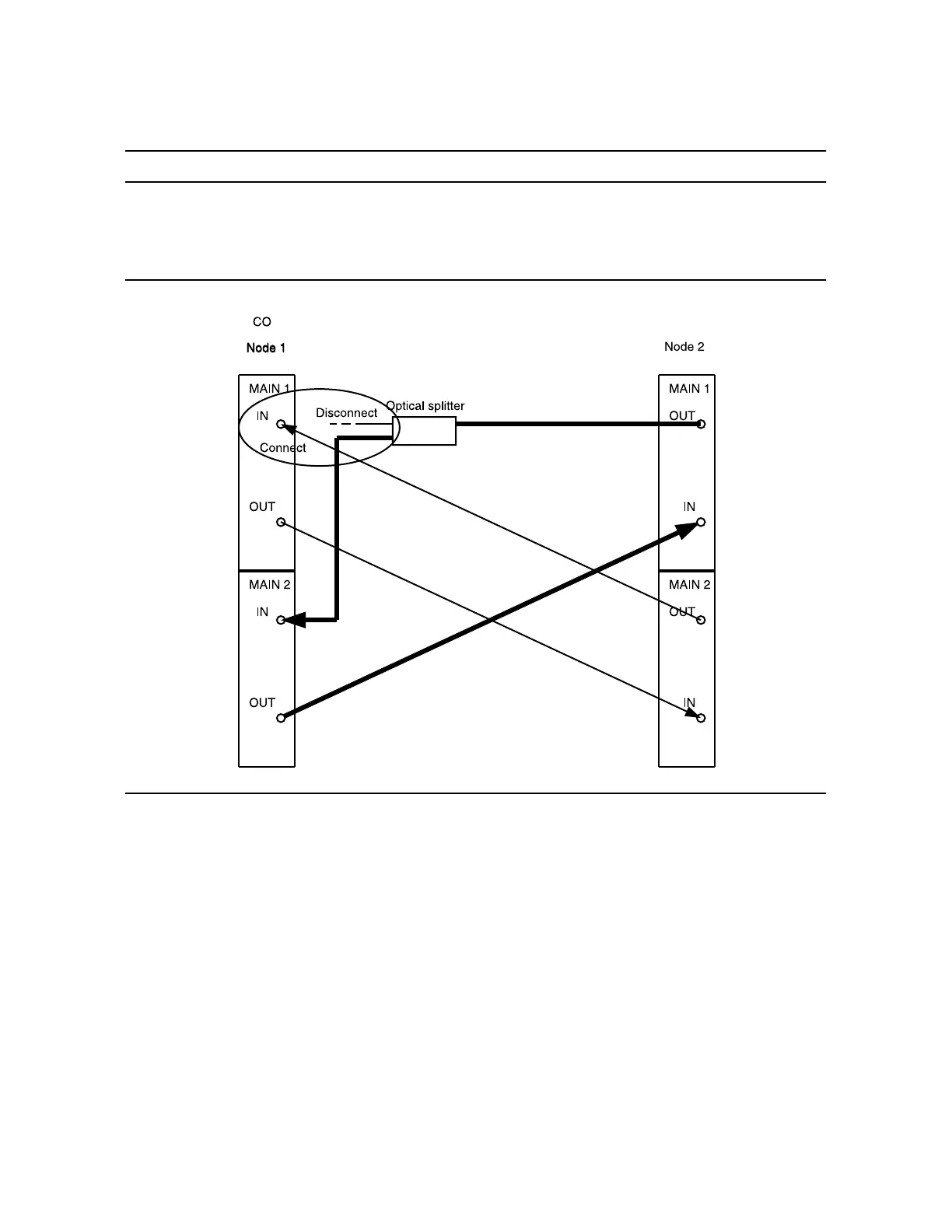

Figure 13 – DDM-2000 OC-3 Point-to-Point to Ring Upgrade
To Next Page
