Assembly Instructions
DO NOT plug in the fan before assembly. This misting fan comes in 2 separate boxes. Carefully remove
all packaging materials and retain for future storage/use. Make sure there is no residual foam left in any
of the components. A screwdriver and wrench will be required to assemble this misting fan.
Step 1: Assembling the Stand Pole

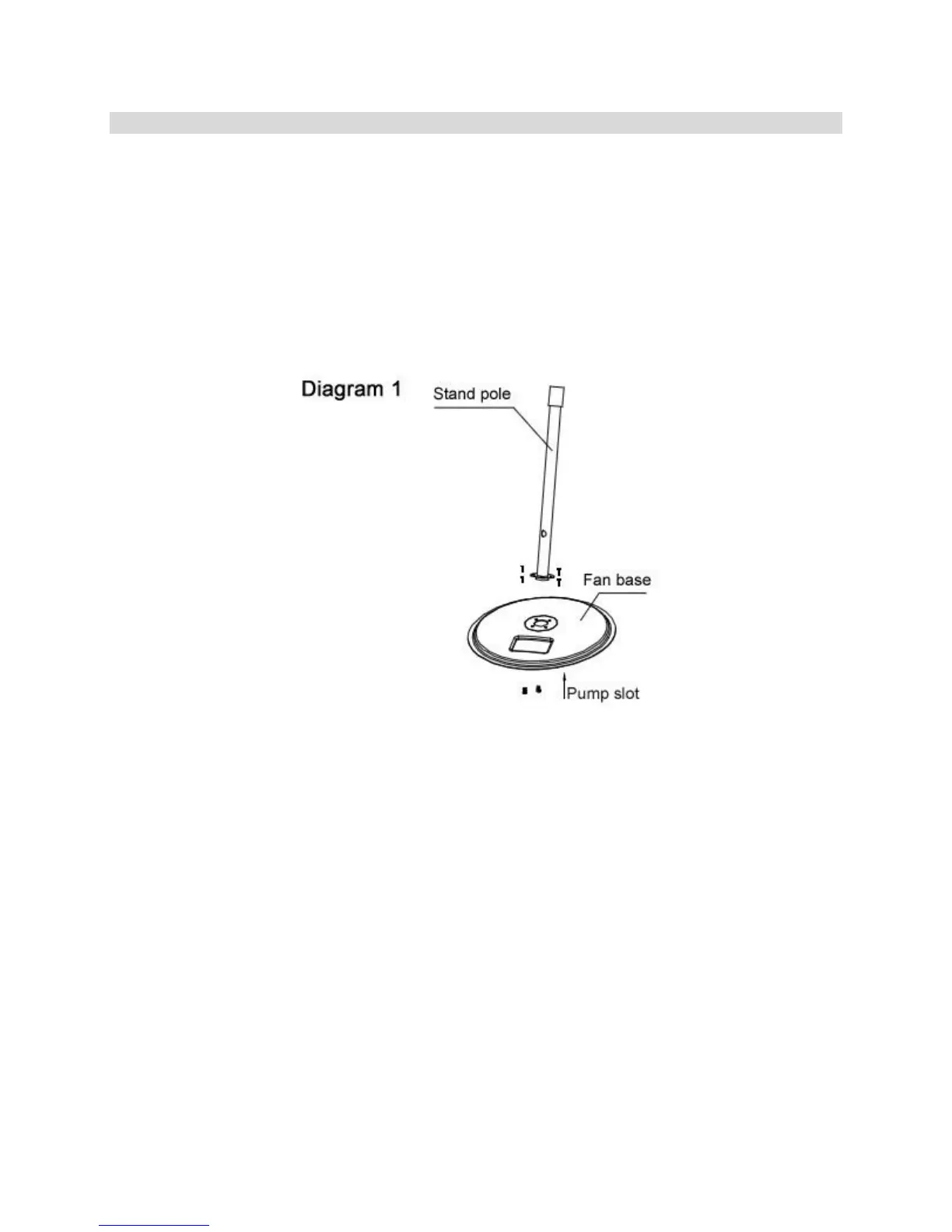

a. Refer to diagram 1 below. Remove the following parts from the fan’s base and set them aside:
four (4) M6x16 screws, large washers, small washers and nuts.
b. Place the stand pole on the fan base, align the screw holes and secure the pole in place using
the screws, washers and nuts. Make sure the hole located near the bottom of the stand pole is
facing the square shaped pump slot.
