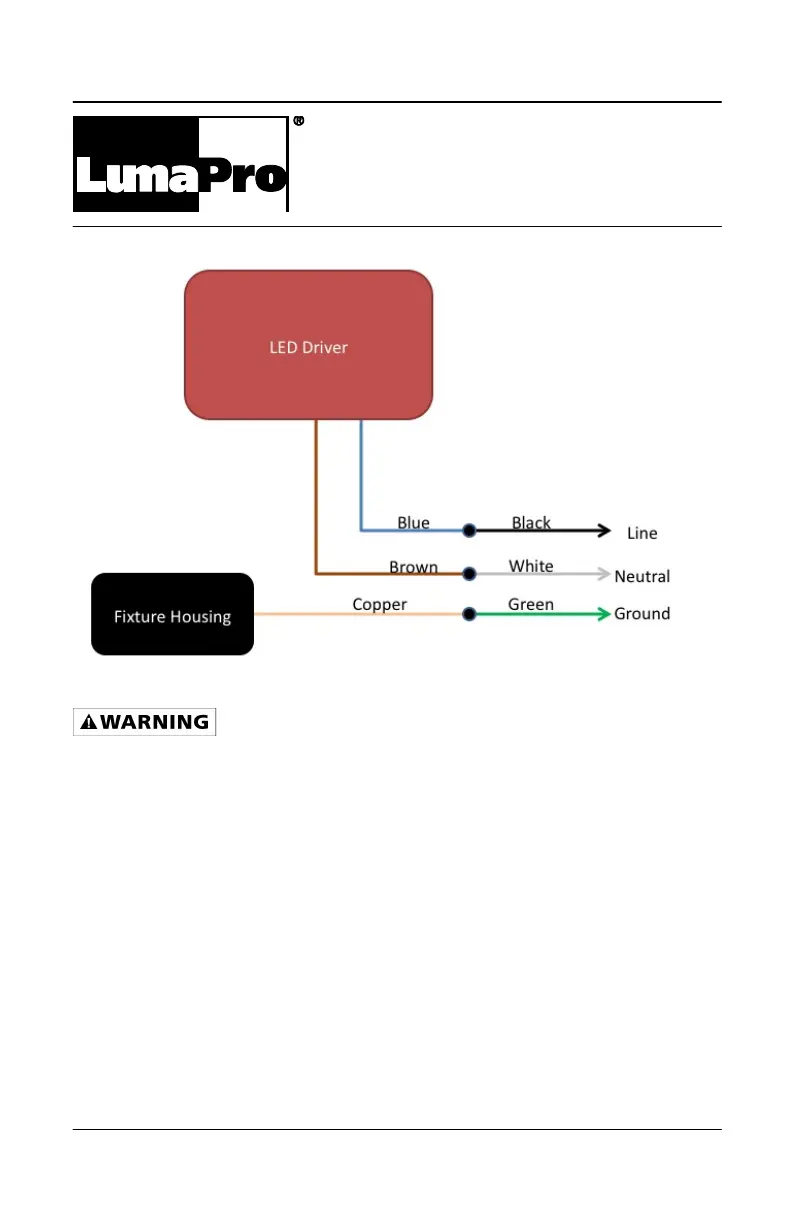

Wiring Diagrams
Installation & Operation:
Disconnect the power by turning off the circuit breaker or by
removing the appropriate fuse at the fuse box. Turning the power off using the light
switch is not sufficient to prevent electrical shock.
1. Use ½ NPT fitting on yoke connect feed power lead through weatherproof Junction Box cover
(not supplied).
2. Cut and strip lead to proper length.
3. Connect supply wires to quick connect supplied Black/Hot supply with black wire.
White/Neutral supply with white wire. Connect ground wire with green wire.
4. Confirm connections are secured.
5. Mount fixture with Junction Box cover to junction box.
6. With Phillips screwdriver, loosen yoke screws on both sides to aim fixture.
7. When finished, tighten screws to keep flood light in position.
Warranty
LIMITED FIVE-YEAR WARRANTY
Should this product fail to perform satisfactorily due to a defect or poor workmanship within
FIVE YEARS from the date of purchase, return it to the place of purchase and it will be replaced,
free of charge. Incidental or consequential damages are excluded from this warranty.
