DIRECT/INDIRECT
L
H

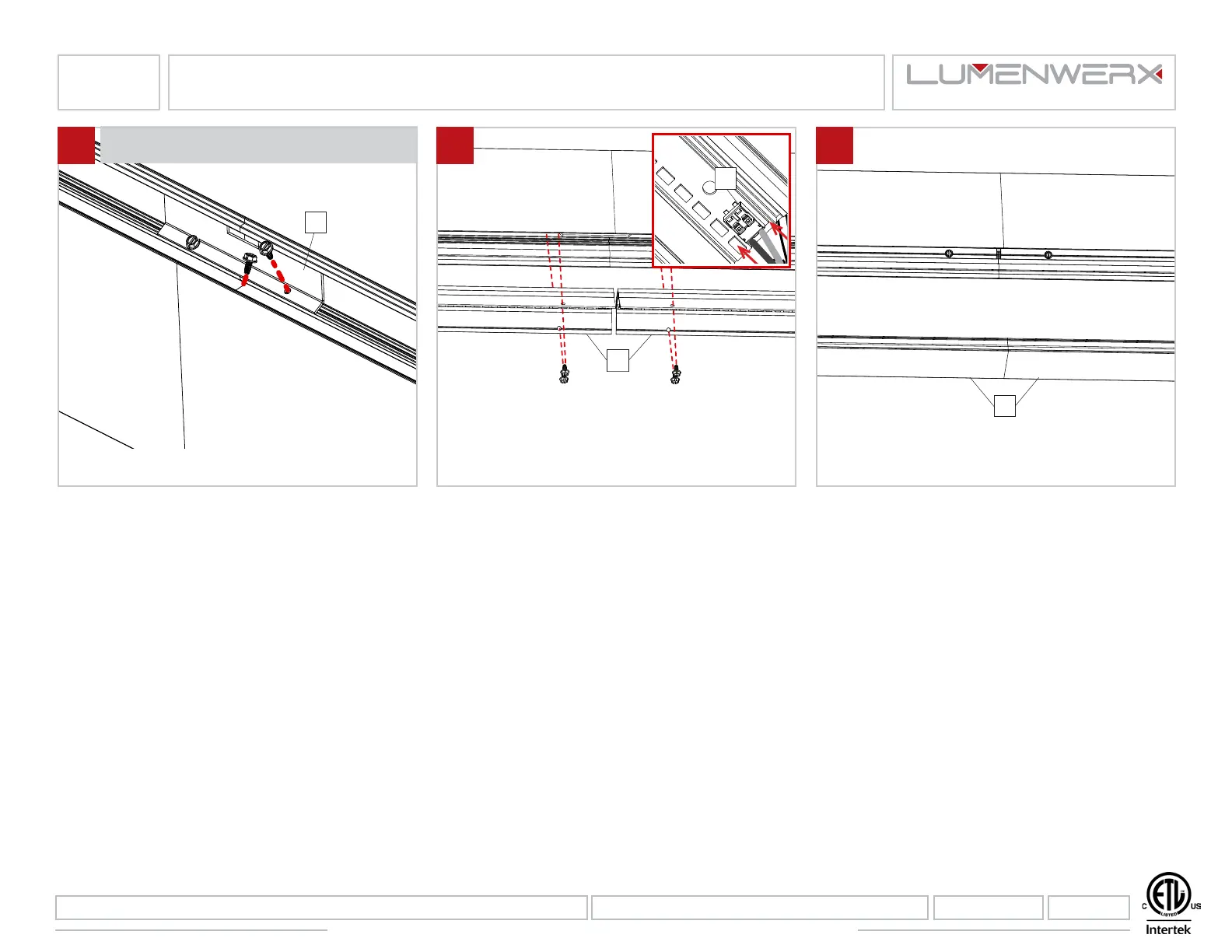

Reinstall the cartridge (H) and reconnect the LED
molex connector (G). NOTE: connect black wire
into the negative (-) terminal and the white wire
into (+) positive terminal. Make sure that the wires
are not hiding any LED diode. Screw the cartridge
back in place.
G
F
Put the lenses (F) back in place.
Secure the top joiner (L) with screws. Repeat
on both sides.
WWW.LUMENWERX.COM
13
14
15
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC. FILE NAME:VIA2-WALL-MOUNT-INST November 15, 2019 Page: 3 / 3
LumenWerx ULC. reserves the right to change or modify product specifications without notification
WALL MOUNT - INSTALLATION INSTRUCTIONS
VIA 2
