LUMINELL DL Series User Manual

DJI M210 PWM for DL series Manual v.1.1
Page 2 of 6
Luminell AS Myrabakken Næringssenter Bygg 2, NO-6010 Ålesund - Org.nr 915 014 348 - +47 70 10 10 70
www.luminell.com

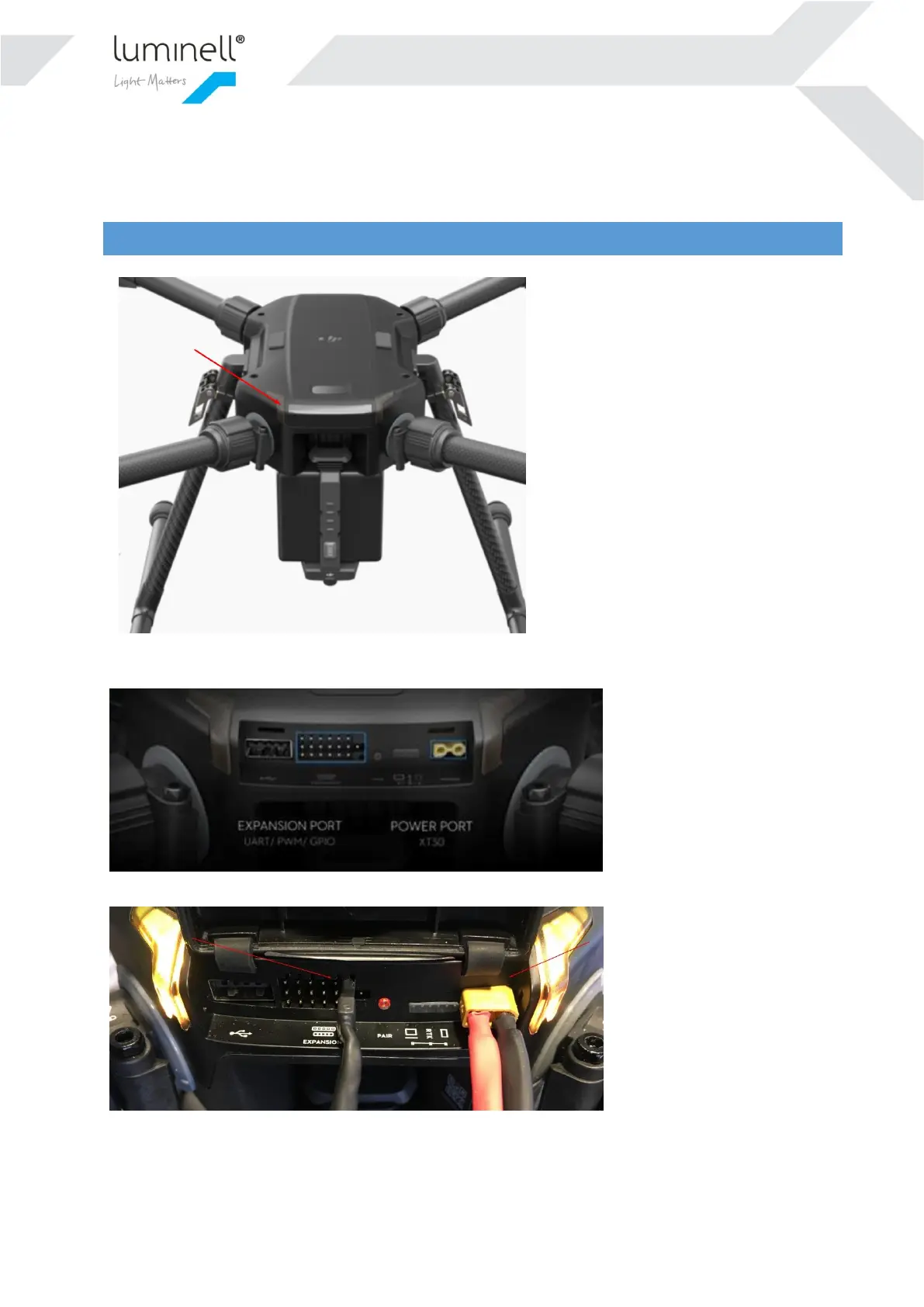

CONNECTING
On the back side of the drone, there is a little plastic lid; open it to access the power and PWM connectors.
Connect the XT30 plug on the cable harness, and the PWM plug in Port 1. (counts from the right side)

LUMINELL DL Series Specifications

General

Brand	LUMINELL
Model	DL Series
Category	Control Unit
Language	English
