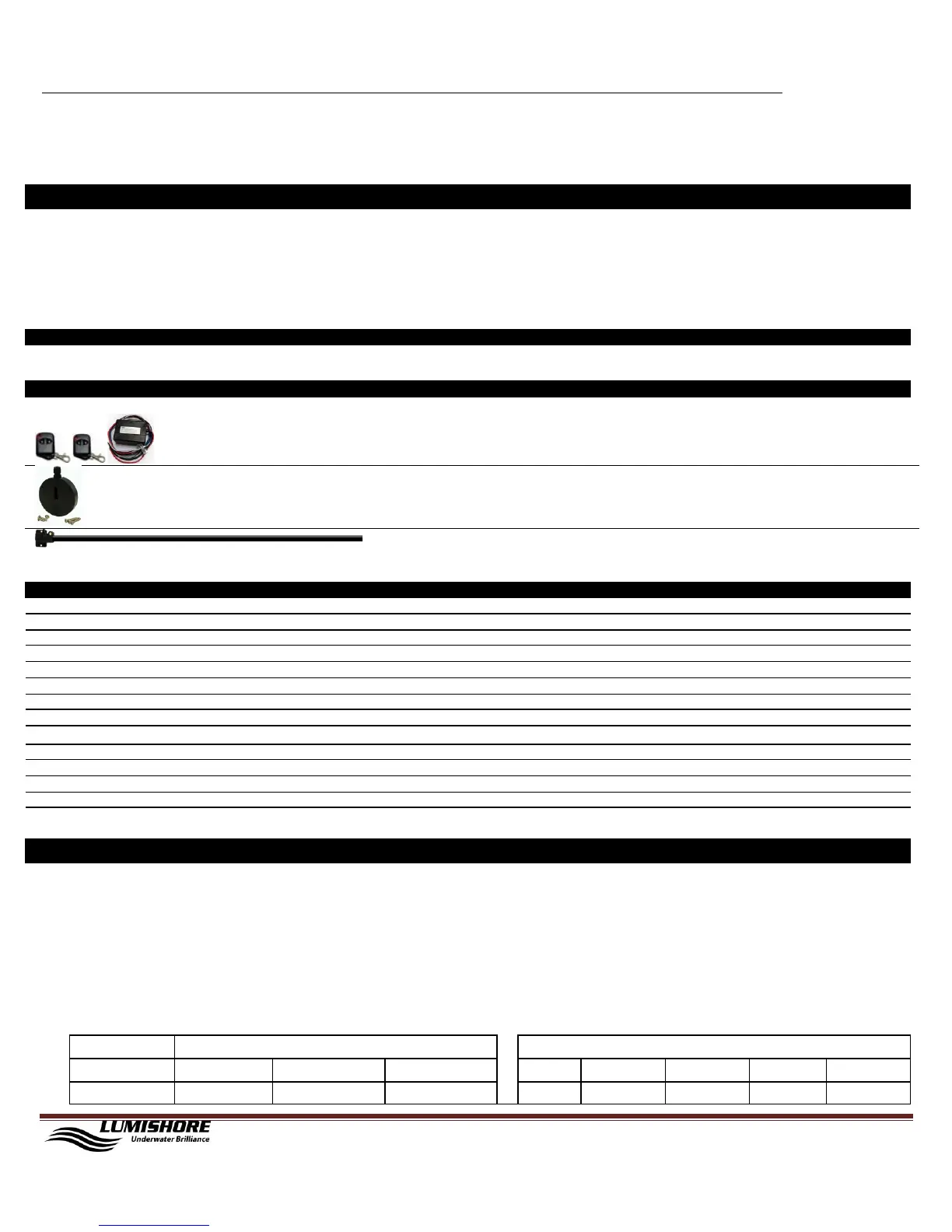

Surface Mount e-lites Page 2
Congratulations! You have purchased a LUMISHORE advanced LED technology underwater lighting system. Every care has been taken to ensure your Surface Mount e-lite
system arrives in perfect condition, so please enjoy the ultimate experience in underwater lighting.
Please read the following pages to ensure a complete understanding of the LUMISHORE LED lighting system before installation.
Adding underwater lighting to your vessel has never been easier. To mount a LUMISHORE Surface Mount e-lite underwater LED light, one small cable hole and three
mounting screws is all it takes. Compact, with a very slim profile and available in a wide variety of colours and power levels, the Surface Mount e-lite operates above or
below the water line, at your berth, on dock or underway, thanks to the LUMISHORE Active Thermal Rollback (ATRB) feature.
• Suitable for transom, hull-side, engine room, internal, and external mounting
• Corrosion-proof advanced aluminium, polymer coated over-molded body (bottom paint and bonding is not needed)
• Over voltage/current and reverse polarity protection
• LUMISHORE Active Thermal Rollback (ATRB) manages the light output depending on ambient temperatures
• 90° wide, even beam for superior underwater effects
• Best overall life: 50,000+ hours, approximately 20 years with normal use
Your box should contain the following items: One Surface Mount e-lite, three stainless steel Number 8 screws , and one Installation and Operating Guide.
If any items are missing, e-mail or call LUMISHORE using the contact information listed in Section 5 (Product Support) of this guide.
RM-12 (12 Volt systems only)
Wireless remote light controller (two remotes and one wireless receiver/relay).
DLX-KIT
Dock light adapter kit. Allows SMX21 and SMX51 mounted on transom without drilling cable hole or
used as a dock light
DLX-ARM
Used with the DLX-KIT when installed as Dock Light. Allows the light fixture to be lifted out of water for
cleaning
Selecting gauge cable (Conductor Size Tables)
Optional RM-12 wireless remote light controller
The light can be installed above or below the water line.
For best underwater illumination, LUMISHORE recommends installation 4” to 12” (10 0-300mm) below the water line.
Choose a location:
o The light must be mounted on a flat (not curved) surface. For underwater installs mount on transom or side hull only.
o A hole will be drilled to allow the cable to be inserted; care must be taken to ensure there is unrestricted access (including inside the hull for underwater
installation).
o When installing three or more lights, equal spacing 2.5’- 3’ is recommended to give a consistent light pool.
o The light is temperature sensitive and must not be located close to the exhaust outlet or other heat source.
o The e-lite series operates on both 12V and 24V DC systems; never connect a light directly to the mains AC voltage.
o Each light should be individually fused and the serial number recorded. Please use the tables below.
