73
12 VOLT ROOF MOUNTED
EXTRACTOR FAN
The fan is a double glazed rooflight. Its side
operating mechanism allows a completely
free central opening with built-in fixed
ventilation when closed.
AWNING/ROOFLIGHTS/ANTENNA

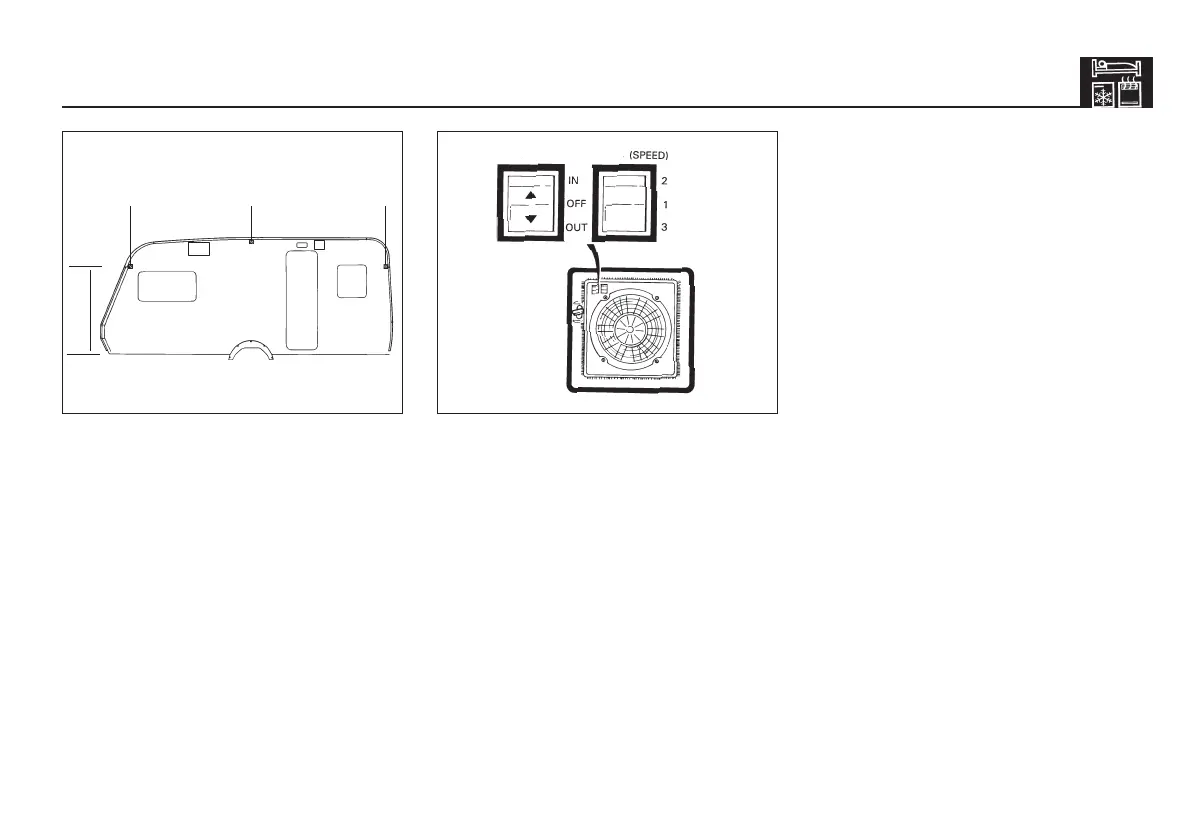

AWNING FIXING POINTS
In all Venus Caravans fixing blocks for the
awning brackets are now fitted as per the
diagram (position A). The centre block is
determined from centre of wheel arch and
just below awning rail.
The end fixing points are just above window
height front and rear, approximately 60mm
long x 40mm, 1528mm above the underside
of the floor (i.e. from top of skirt).
Care must be taken when fixing the
brackets and a suitable sealant used.
A
AA
1528 mm
→
→
TILT & SLIDE ROOFLIGHT
To open - turn the handles to release the
rooflight. Push it upwards and slide it towards
the front of the caravan.
Before travelling ensure the rooflight is in the
fully closed and locked position.
A fully adjustable flyscreen and black out
screen are built into the frame.
STATUS TV ANTENNA
1. Switch ON the Power Pack and the red
LED will illuminate.
2. Check the gain control switch is set to the
normal 'NML' position.
Turn on your television set and tune in. This
may be necessary at all new locations.
Should you experience problems please
refer to the fault finding paragraph.
Removing the Pinnacle
This may be necessary should you wish to
reduce the overall height of the antenna by
90mm.
1. Simply unscrew the Pinnacle and
remove. The antenna is designed to
remain watertight without the Pinnacle.
60 x 40
60 x 40
175 x 50
