74
feeding out the coaxial cable with plug
attached.
2. Push the Blanking Cap supplied into
place to cover the central hole.
FAULT FINDING
The following are some of the key areas we
suggest you check which generally sole the
most common problems encountered with
the operation of the Status antenna.
Coaxial Plugs
It is critical that all coaxial plugs in the
system are fitted correctly.
Coaxial Cable
Sharp bends, kinks and hot surfaces
can easily damage coaxial cable and
should be avoided. An inspection of
the cable routing is recommended to
ensure all is correct. Coaxial cable, if
placed in close proximity to electrical
cables, transformers or other pieces
of electrical equipment, may pick up
electrical interference causing
picture quality to deteriorate.
Pinnacle
The pinnacle is essential for the
optimum performance of the
antenna and therefore should be in
place when the antenna is in use.
2. To replace, simply screw in and tighten
BY HAND.
3. IMPORTANT - The Pinnacle is an
integral part of the antenna and critical to
its performance. When in use always
ensure the Pinnacle is fitted.

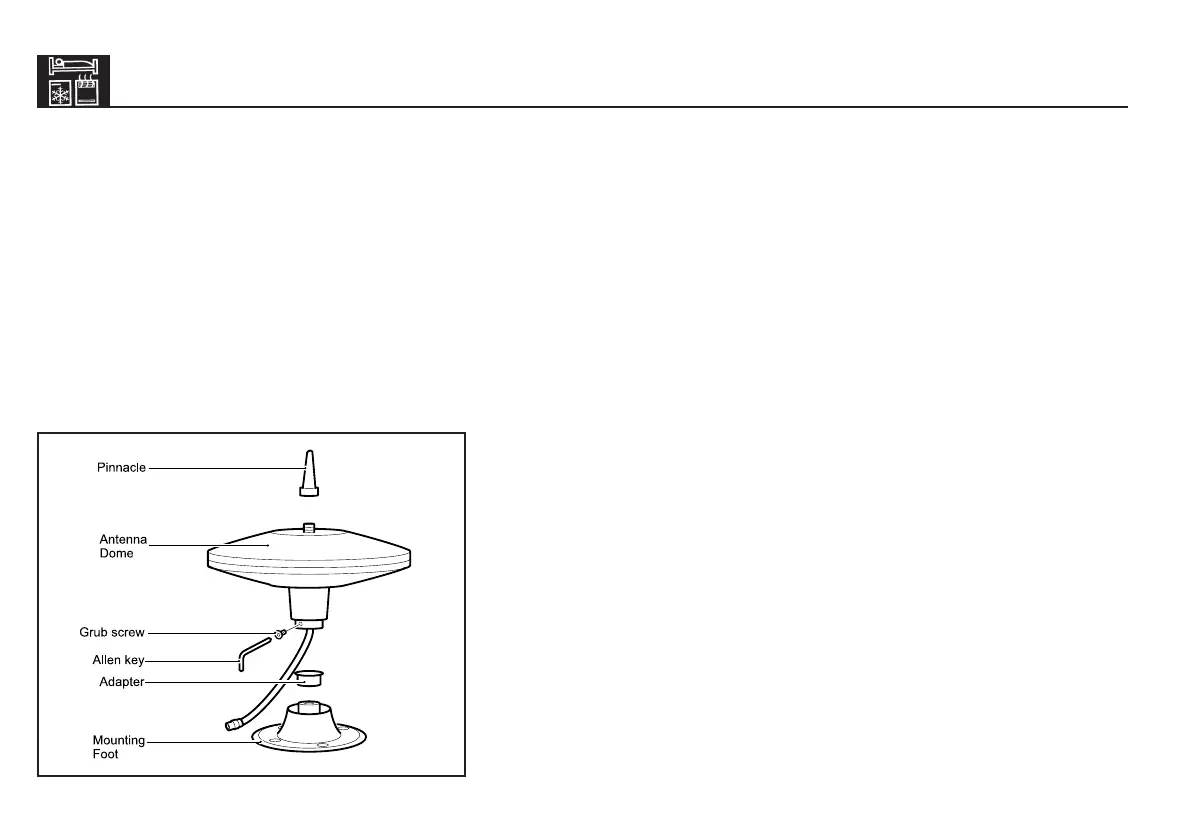

Removing the Antenna
A permanently fitted Status may be removed
if there are severe height restrictions, leaving
only the Mounting Foot in place.
1. Unplug the antenna from the Power
Pack. On the Adapter loosen the two
grub screws and lift off whilst carefully
Gain Switch
Situated below the LED light on the Power
Pack, this switch should be set to the normal
'NML' position for general use. The Low
setting may be used when situated close to
TV transmitters where strong signals may be
affecting the quality of the picture.
Red LED Light
Should the red LED on the Power Pack not
light, first try unplugging the cable connected
to the Antenna Dome from the 'ANT-IN'
socket. If the LED then illuminates the fault
lies with either the coaxial plug or the coaxial
cable, please refer to these areas described
earlier.
The Clubman and Delta ranges have the
new Status 530, a fully adjustable antenna
for height, direction and polarity.
When travelling adjust the antenna so
that it points to the rear of the vehicle to
reduce the possibility of damage.
For assistance contact your dealer or Grade
UK Ltd. Tel: 0115 986 7151.
ANTENNA
