Luxman D-105U Service Manual

D-105U

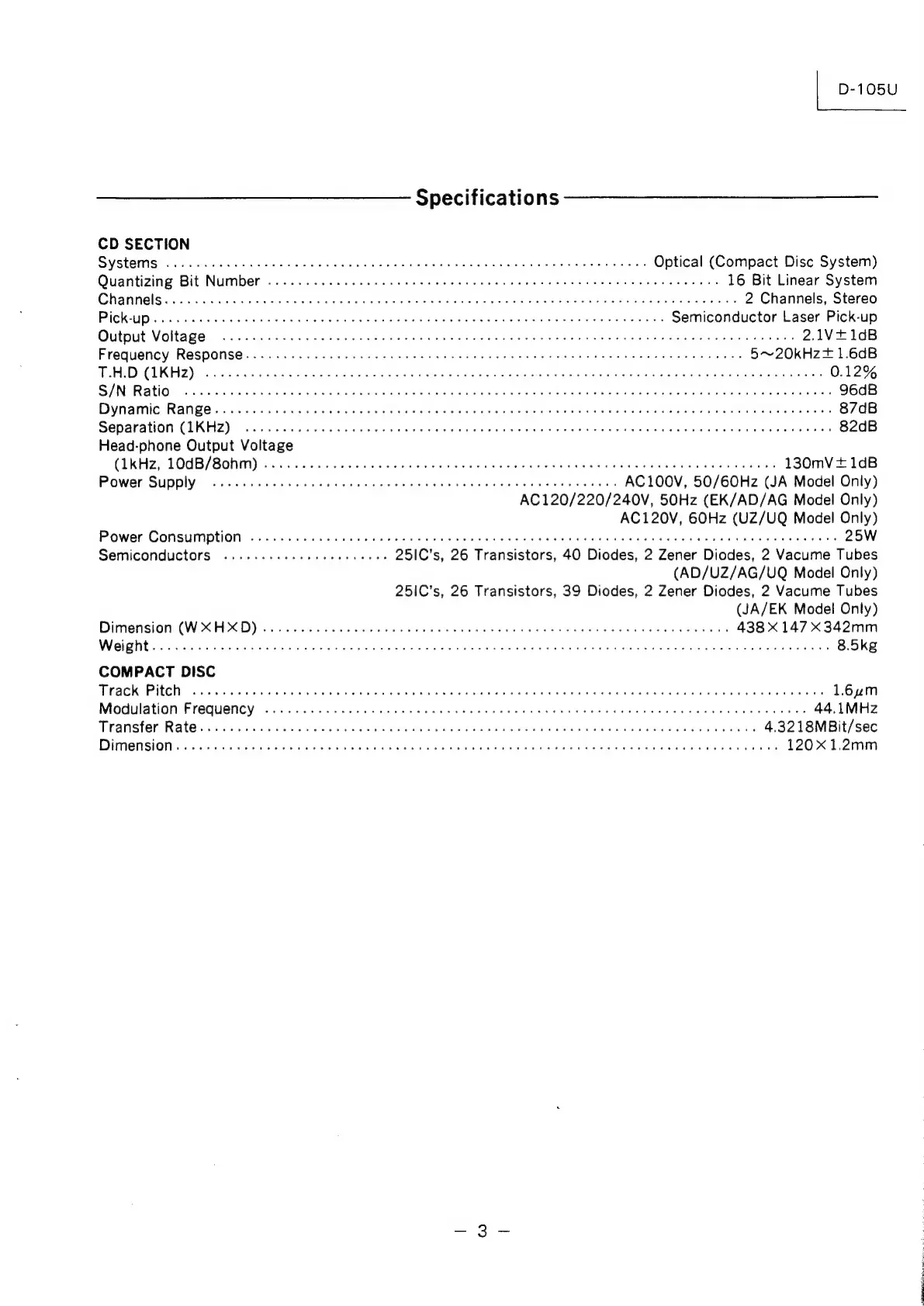

Specifications
CD SECTION
SYStEMS eater ele earl eu inhnensta etal Bahia ont ae ad Optical (Compact Disc System)
Ovantizine Bil NUMber 5 <5-ta-. ese ation mien el es Water ected ee NS Res waa 16 Bit Linear System
ClhiannelS:: wives ede Ria Mw ba damn eae hie tdindaaes NH eel a ees ete 2 Channels, Stereo
PICK-UPieee crores as tedaapiee dees metaltlee a epee tied yd slgts che ddd eee Ah Semiconductor Laser Pick-up
Oliteut VOawe: 21 seewnl ce cecal oemed ih ekees tara t aetenets Rete inher teae ib ae cerned man es ase: 2.1V+1dB
Frequency ReSPOnse...... 6. eee nnn enn eee eee n eee 5~20kHz+ 1.6dB
TAA CL He), eects Seah ca tee he cues cal tals al a tn ch nde raster ana onde ota bet dell ae 0.12%
SUN Ration ccvticoeh cctleia re eather a cucatitoare Auta aie nobles tn cdiccs ideatennet cease te ces eect MER Ged AS Br tea 2 ae, 96dB
DynamicsRange¢ <i se0 sida eck ee eae ee wh ha gend aie Piha we eS eGNG oh a ene a a ee 87dB
Separation: (LKH2Z) occ tanec de rea ee Faia ea bee Hig ie Dacia Geel eee Dat er Vie ashe Sane aie ee Sig aN 82dB
Head-phone Output Voltage
(CIKAZ: LOdB/80hM): sascices joteeee tl Soa tek PER es dil 55 4 Saeeaate eye Ga Be tee mks 130mV+ 1dB
Power:Supply.: 02 o.csscanty fenateenrnata rhs Peat acdsee si aeeee eae’: AC100V, 50/60Hz (JA Model Only)
AC120/220/240V, 50Hz (EK/AD/AG Model Only)
AC120V, 60Hz (UZ/UQ Model Only)
Power COnsumMption: <24 tow k sheet od fe Sais SOR oes Saw cues Dante owed Soe aa dona ine aig 25W
Semiconductors ..........c cece ee eeees 251C's, 26 Transistors, 40 Diodes, 2 Zener Diodes, 2 Vacume Tubes
(AD/UZ/AG/UQ Model Only)
251C’s, 26 Transistors, 39 Diodes, 2 Zener Diodes, 2 Vacume Tubes
(JA/EK Model Only)
Dimension.(WXHXD) cca lcsdke class eal ag Pade cease De a beer Mike bisa ees 438 X 147 X 342mm
Weighitic..cveisicrdae er ideein dc ewe aad sqa pa eeree fag ta re dete aroma aeasis al Sak U hae enoee gvmtnmaleata | 8.5kg
COMPACT DISC
Tack: PitCh> cccsiesis. oe.cenlestetaigetinis ehaterteweivts acnina ateagls gwd potandldos pee tate Ha se Su date ieee 1.64m
Modulation: Frequency.....v.c2- deen e ect eee ayaa s Eee eee hed ns bed Bae areatle aed cee eae 44.1MHz
Transfer: Rate cs-icpiscctacascsacse a tes a eeee eee cae scien haw Taw Ea san Weeden Goede wend Ba nets 4.3218MBit/sec
DEMON SI OR taki mek ths uote’ Sie tt Ged otal rate canada SMart l a ake at oe A Mari A 98 cedsd 120X 1.2mm

Luxman D-105U Specifications

General

Brand	Luxman
Model	D-105U
Category	CD Player
Language	English
