Names and Functions
1. Unbalanced analog output terminals
(LINE)
The RCA output terminals to provide unbalanced playback
signals of this unit.
Connect these terminals to the unbalanced input of a de-
vice such as a pre-amplifier with an RCA cable.
The output phase can be switched with the analog output
phase selection button (PHASE INVERT) on the front panel.
2. Balanced analog output terminals
(BAL LINE)
The XLR output terminals to provide balanced playback sig-
nals from this unit.
Connect these terminals to the balanced input of an output
device such as a pre-amplifier with a balanced XLR cable.
The output phase can be switched with the analog output
phase selection button (PHASE INVERT) on the front panel.
The following table shows the unit's XLR output terminals
pin configuration:
[Phase Normal]
1. GROUND
2. COLD (–)
3. HOT (+)
[Phase Inverted]
1. GROUND
2. HOT (+)
3. COLD (–)
3. Optical digital input terminals
(OPT-1, OPT-2)
When using this unit as a D/A converter, transmit digital sig-
nals from a CD player or the like that has a digital output
terminal to this unit using an optical digital cable.
The terminal supports the following signals.
Sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 176.4 kHz, 192 kHz
Quantization bit rate: 16-bit, 20-bit, 24-bit
This terminal is a shutter-type optical terminal. Direct the
cable connector correctly when inserting the cable into the
terminal. If the cable connector is inserted forcibly in the
wrong direction, the terminal may be deformed and the
shutter may not close even after disconnecting the cable.

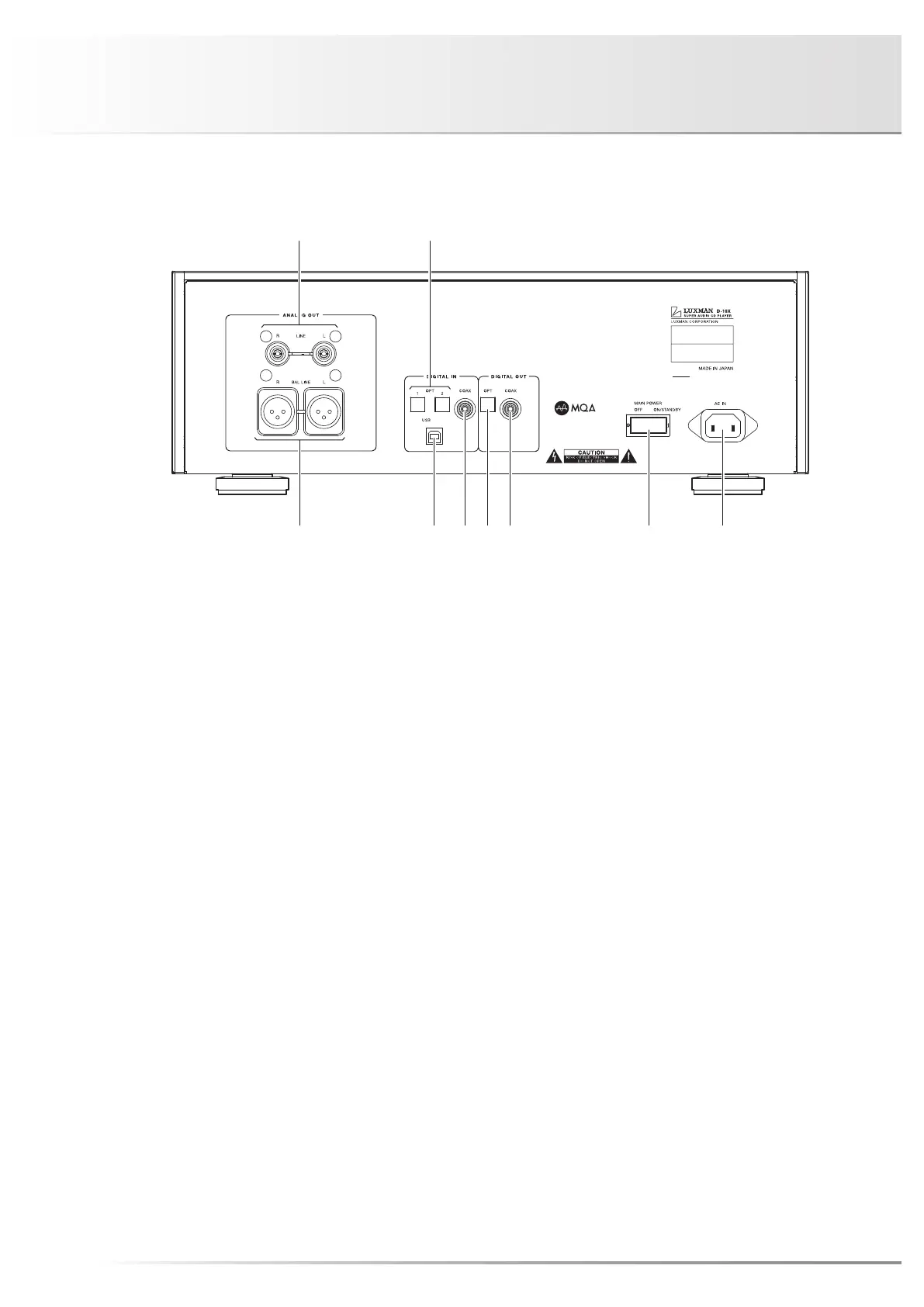

Rear panel
