Luxman DZ-112 Service Manual

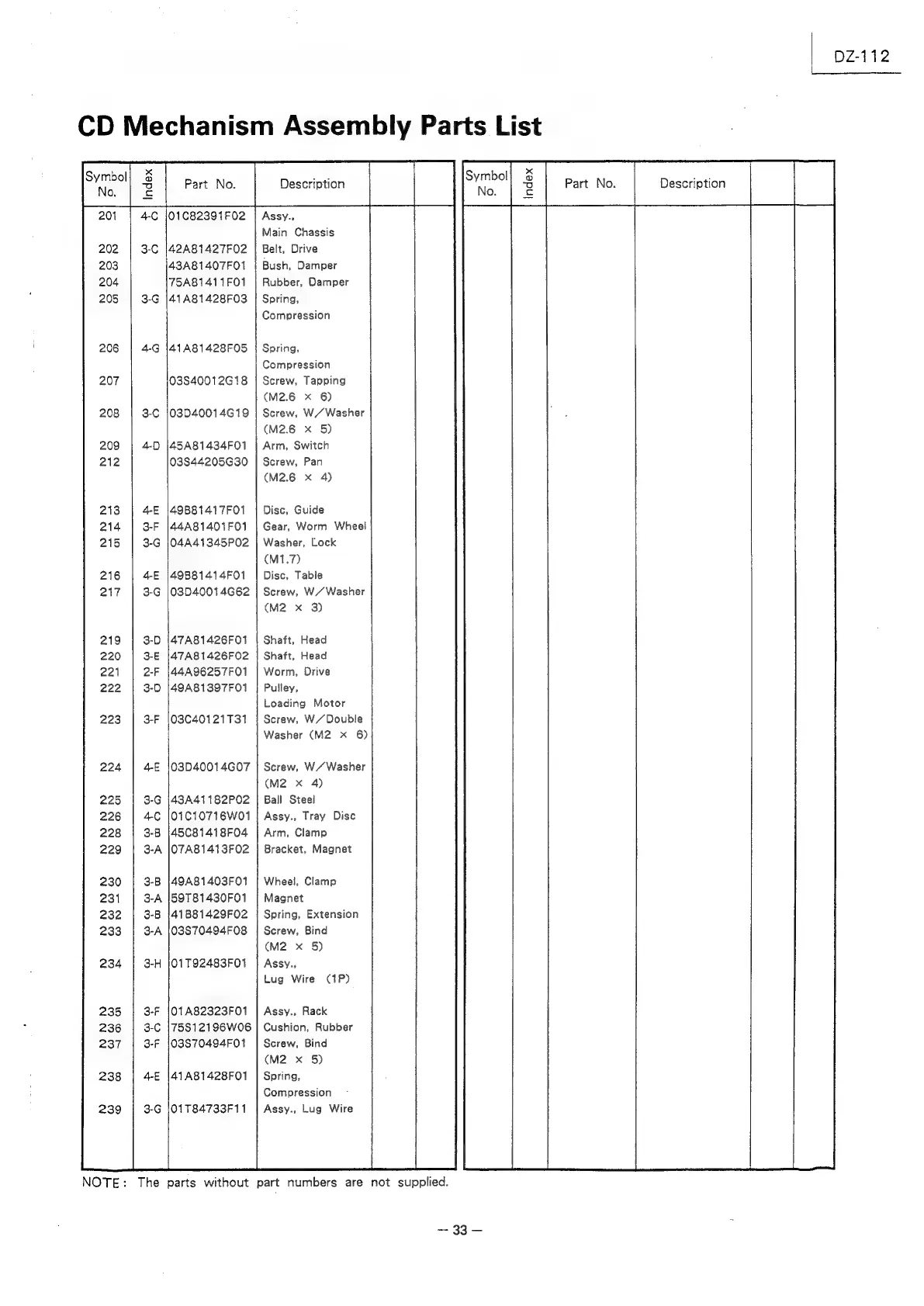

CD Mechanism Assembly Parts List
Symbol] 3 ve
3 Part No. Description
NOTE:
The
Part No.
01C82391F02
42A81427F02
43A81407F01
75A81411F01
41A81428F03
41A81428F05
03S$40012G618
03D40014G19
45A81434F01
03844205630
49B81417F01
44A81401F01
04A41345P02
49881414F01
03040014662
47A81426F01
47A81426F02
44A96257F01
49A81397F01
03C40121T31
03D40014G07
43A41182P02
01010716W01
45C81418F04
07A81413F02
49A81403F01
59T81430F01
41B81429F02
03870494F08
01T92483F01
01A82323F01
75812196W06
03870494F01
41A81428F01
01784733F11
Description
Assy.,
Main Chassis
Belt, Drive
Bush, Damper
Rubber, Damper
Spring,
Compression
Spring,
Compression
Screw, Tapping
(M2.6 x 6)
Screw, W//Washer
(M2.6 x 5)
Arm, Switch
Screw, Pan
(M2.6 x 4)
Disc, Guide
Gear, Worm Wheei
Washer, Lock
(M1.7)
Disc, Table
Screw, W/Washer
(M2 x 3)
Shaft, Head
Shaft, Head
Worm, Drive
Pulley,
Loading Motor
Screw, W/Double
Washer (M2 x 6)
Screw, W/Washer
(M2 x 4)
Ball Steel
Assy., Tray Disc
Arm, Clamp
Bracket, Magnet
Wheel, Clamp
Magnet
Spring, Extension
Screw, Bind
(M2 x 5)
Assy.,
Lug Wire (1P)
Assy., Rack
Cushion, Rubber
Screw, Bind
(M2 x 5)
Spring,
Compression
Assy., Lug Wire
parts without part numbers are not supplied.
DZ-112
