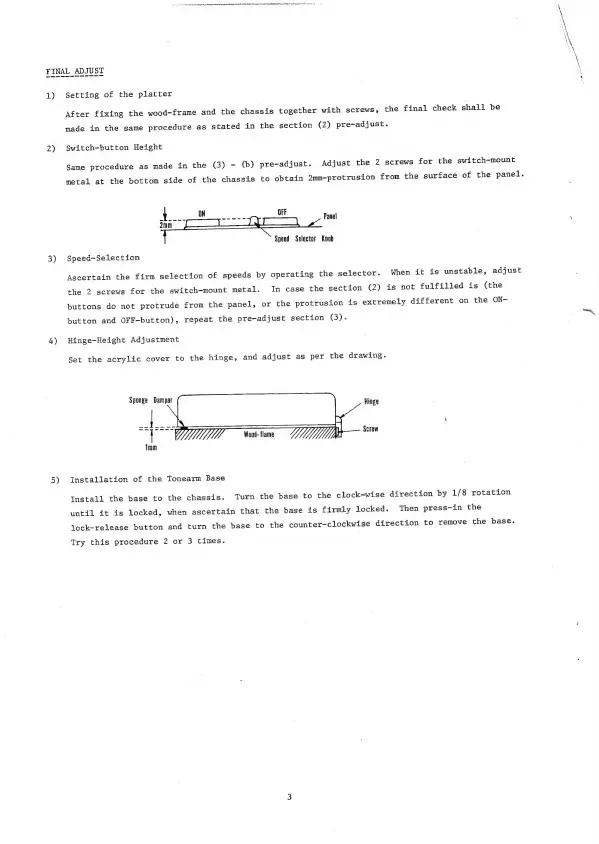

FINAL ADJUST
2)
3)
4)
5)
Setting of the platter
After
fixing
the
wood-frame
and
the
chassis
together
with
screws,
the
final
check
shall
be
made
in
the
same
procedure
as
stated
in
the
section
(2)
pre-adjust.
Switch-button Height
Same
procedure
as
made
in
the
(3)
-
(b)
pre-adjust.
Adjust
the
2
screws
for the
switch-mount
metal
at
the
bottom
side
of
the
chassis
to
obtain
2mm-protrusion
from
the
surface
of
the
panel.
Speed-Selection
Ascertain
the
firm
selection
of
speeds
by
operating
the
selector.
When
it
is
unstable,
adjust
the
2
screws
for
the
switch-mount
metal.
In
case
the
section
(2)
is
not
fulfilled
is
(the
buttons
do
not
protrude
from
the
panel,
or
the
protrusion
is
extremely
different
on
the
ON-
button
and
OFF-button),
repeat
the
pre-adjust
section
(3).
Hinge-Height
Adjustment
Set
the
acrylic
cover
to
the
hinge,
and
adjust
as
per
the
drawing.
Sponge Dampar Hinge
ie doe Woot flame sd
Installation of the Tonearm Base
Install
the
base
to
the
chassis.
Turn
the
base
to
the
clock-wise
direction
by
1/8
rotation
until
it is
locked,
when
ascertain
that
the
base
is
firmly
locked.
Then
press-in
the
lock-release
button
and
turn
the
base
to
the
counter-clockwise
direction
to
remove
the
base.
Try this procedure 2 or 3 times.
