Luxman R-113 - FM Tuner Schematic Diagram; Block Diagram

31 pages

Save Page as PDF

To Next Page

To Previous Page

Loading...

Contents2
Specifications2
Parts Locations and Disassembly Instructions3
Product View3
Adjustment Procedures4
Audio Section Adjustment4
AM Radio Adjustment4
FM Radio Adjustment5
Adjustment Locations6
Main PC Board View7

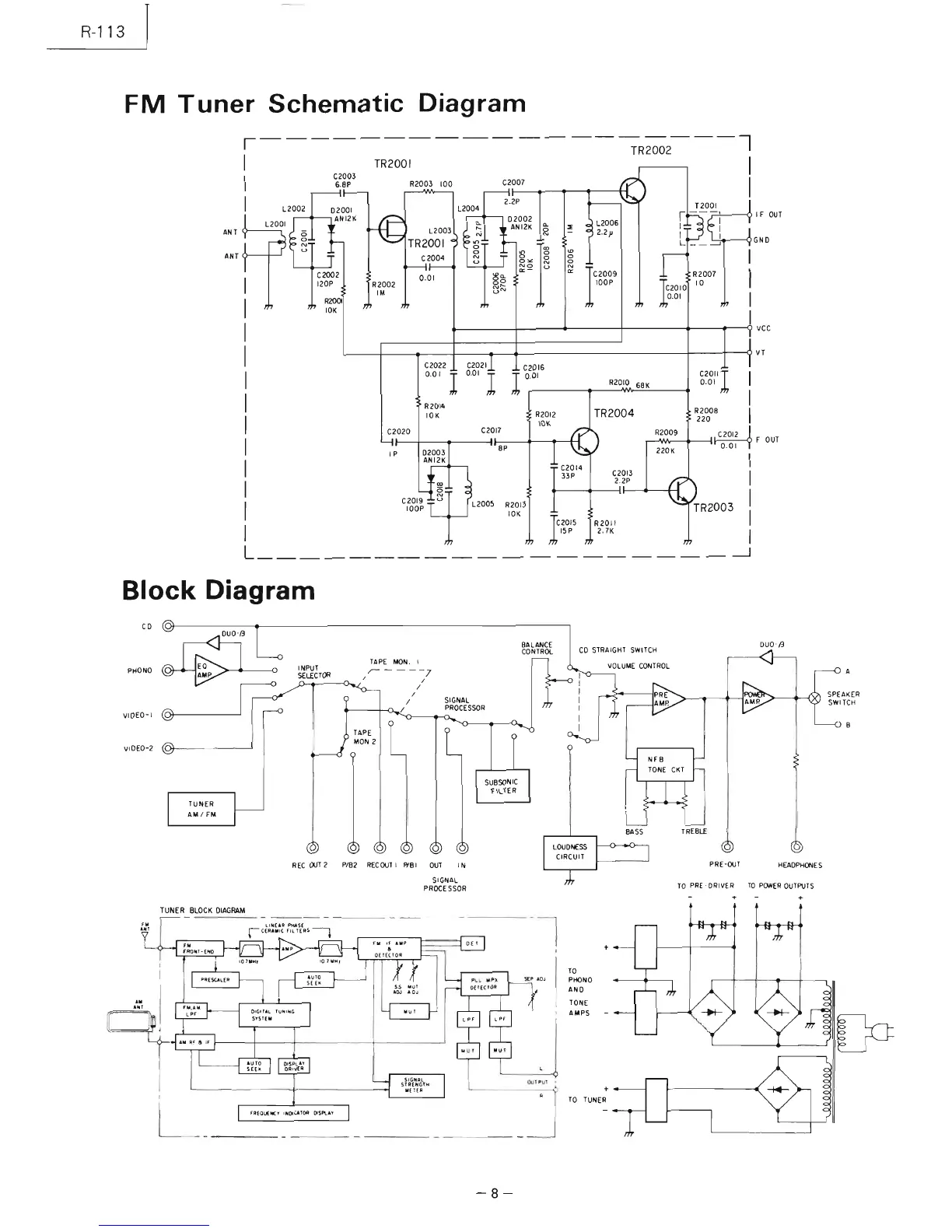

FM Tuner Schematic Diagram8
Block Diagram8
Parts Layout on PC Boards and Wiring Diagram9
Schematic Diagram11
Electrical Parts List13
Cabinet Assembly Parts List24
Exploded View (Cabinet)25
Packing Assembly Parts List26
Packing Method View26
Semi-Conductor Lead Identification27
