Transfer Switch
(red box)
#3 (blue)
#4 (white
with blue stripe)
U
L
®
UL924 LISTED
EMERGENCY LIGHTING
EQUIPMENT
73PK
LVS, Inc. 2555 Nicholson Street, San Leandro, CA 94577-4216
Phone: 510-352-9600 1-800-982-4587 Fax: 510-352-6707
www.lvscontrols.com

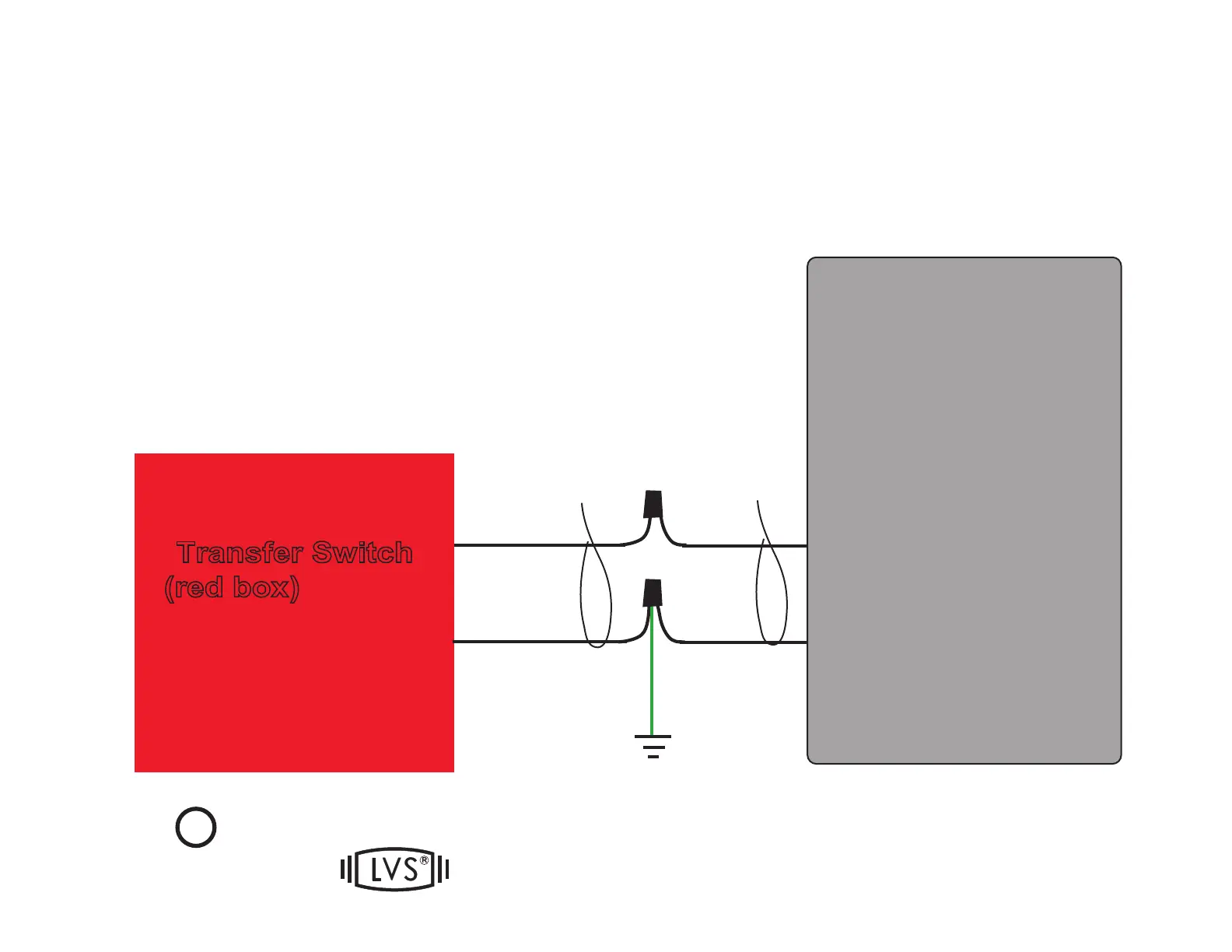

CEPS 277V Output Transformer Grounding
NOTE:
Because the provided output transformer is isolation type, it is recommended to ground the #4 Wire (277V
Neutral) (white wire with blue stripe) on the transfer switch.
ACME
TRANSFORMER
XFR B Leads
XFR B Leads
Ground Stud
black
white
XFR A Leads
XFR A Leads
TS-1000
