Sbach 342 • wingspan: 2,9 m • length: 2,7 m • engine: 100–170 cc • RTF weight: 15–16 kg
8

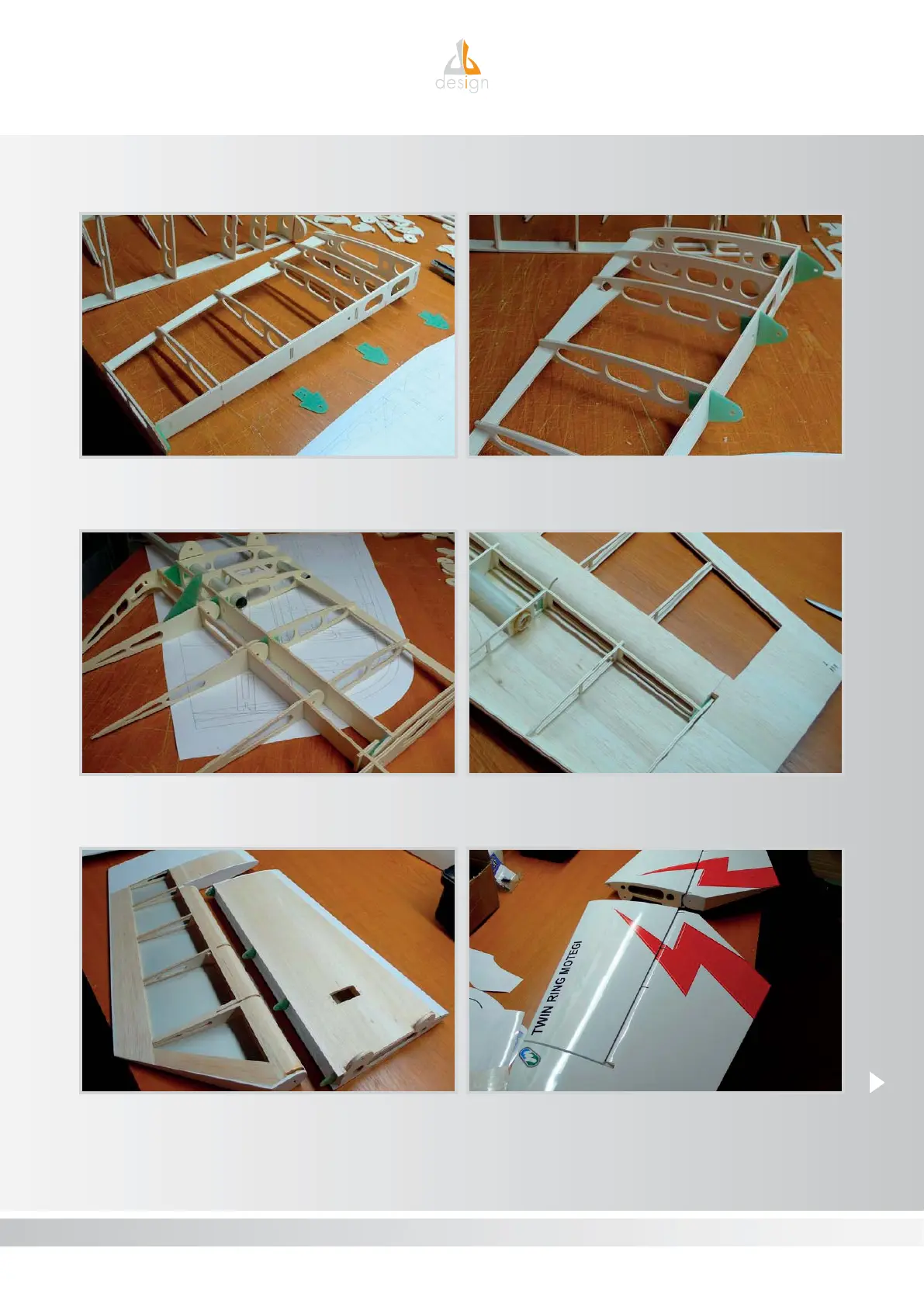

34. Balsa 2 mm covering
36. Finished elevator35. Cut the hole for servo on the bottom
33. Fit all next ribs
32. Using Epoxy glue the GFK hinges inside31. Put the ribs of elevator together
Elevator
