Lynx ionic-100 Quick User Guide

LYNX Pro Audio S.L. - Valencia, Spain - www.lynxproaudio.com -info@lynxproaudio.com

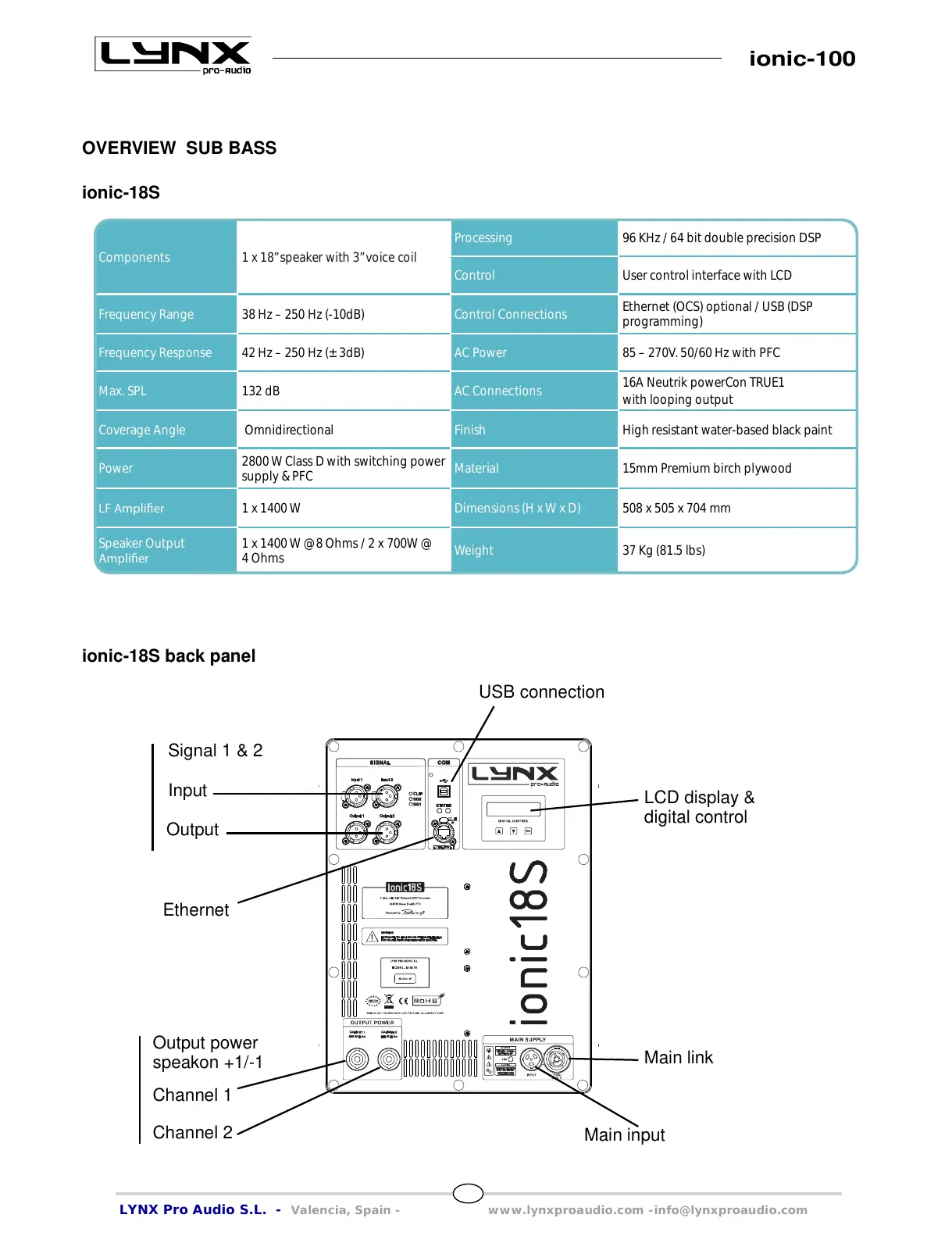

ionic-100
OVERVIEW SUB BASS
Components 1 x 18” speaker with 3” voice coil
Processing 96 KHz / 64 bit double precision DSP
Control User control interface with LCD
Frequency Range 38 Hz – 250 Hz (-10dB) Control Connections
Ethernet (OCS) optional / USB (DSP
programming)
Frequency Response 42 Hz – 250 Hz (± 3dB) AC Power 85 – 270V. 50/60 Hz with PFC
Max. SPL 132 dB AC Connections
16A Neutrik powerCon TRUE1
with looping output
Coverage Angle Omnidirectional Finish High resistant water-based black paint
Power
2800 W Class D with switching power
supply & PFC
Material 15mm Premium birch plywood
LF Ampli er 1 x 1400 W Dimensions (H x W x D) 508 x 505 x 704 mm
Speaker Output
Ampli er
1 x 1400 W @ 8 Ohms / 2 x 700W @
4 Ohms
Weight 37 Kg (81.5 lbs)
ionic-18S
ionic-18S back panel
USB connection
LCD display &
digital control
Input
Output
Ethernet
Output power
speakon +1/-1
Channel 2
Main input
Main link
Channel 1
Signal 1 & 2
