ionic-100

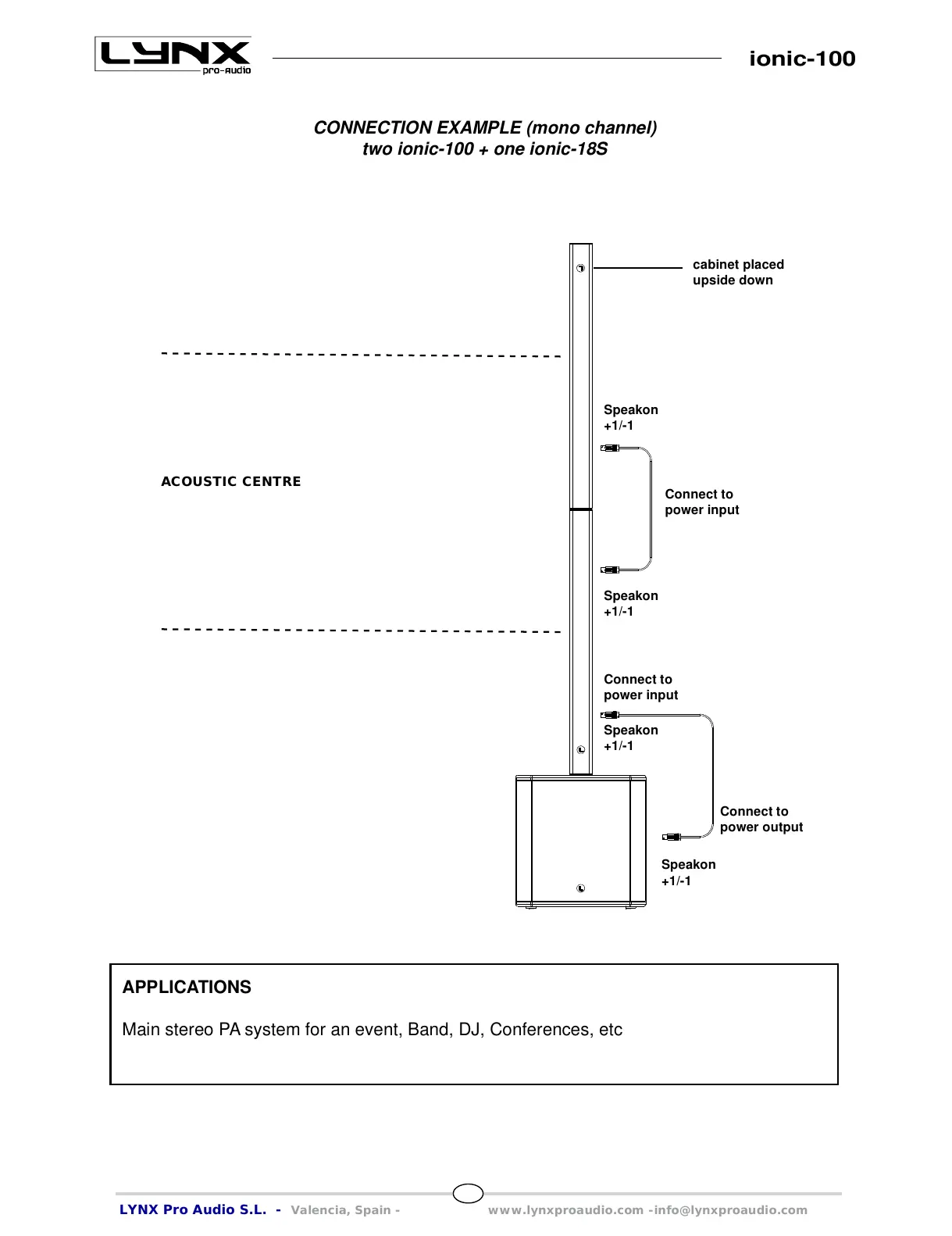

CONNECTION EXAMPLE (mono channel)
two ionic-100 + one ionic-18S
ACOUSTIC CENTRE
Connect to
power input
Speakon
+1/-1
Connect to
power output
Speakon
+1/-1
Speakon
+1/-1
Speakon
+1/-1
Connect to
power input
cabinet placed
upside down
APPLICATIONS
Main stereo PA system for an event, Band, DJ, Conferences, etc
