Lynx LBP - Side Burner Exploded Parts View

26
|
SIDE BURNER ACCESSORY CARE & USE/INSTALLATION

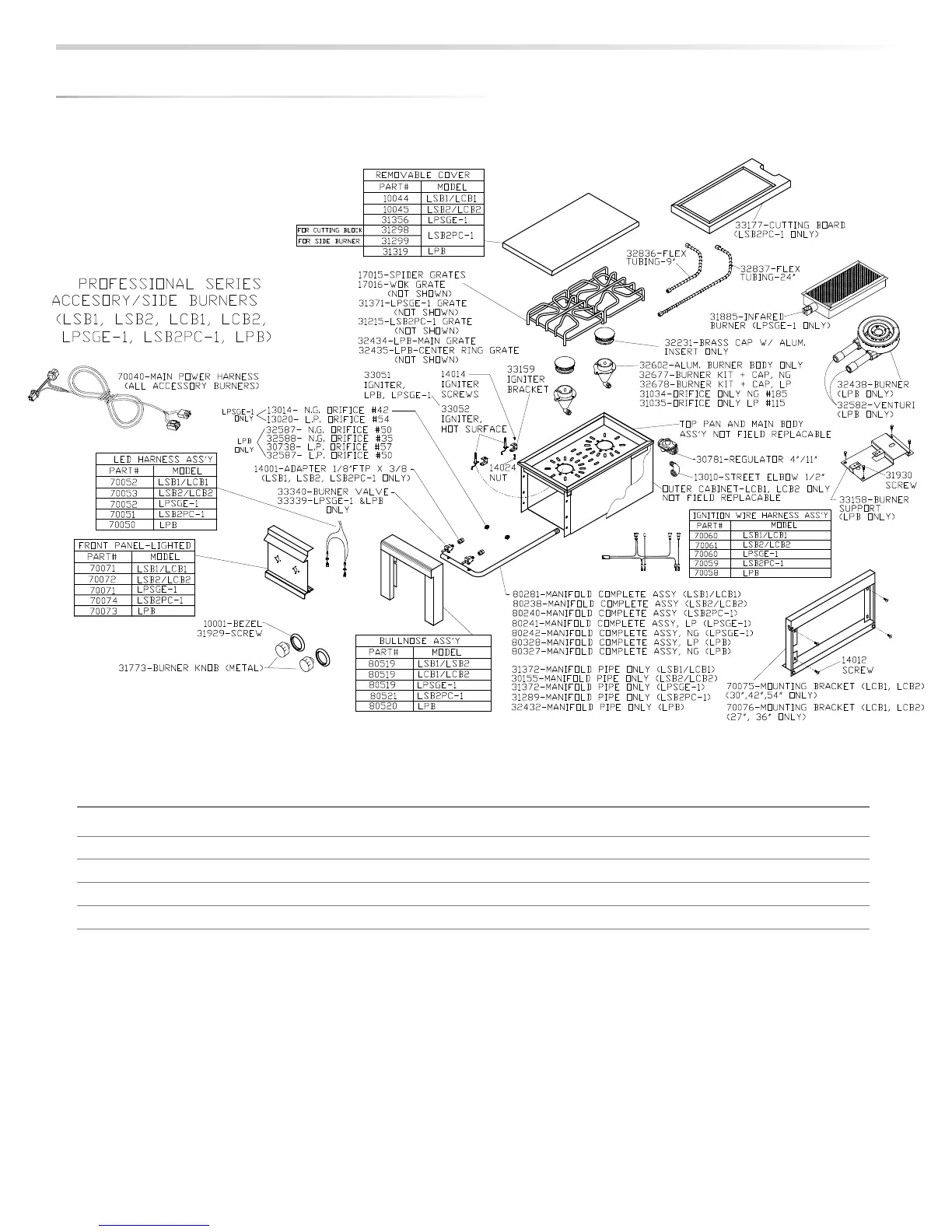

siDe Burner eXploDeD parts VieW
MODEL INNER BURNER OUTER BURNER OPEN TOP BURNER TOTAL INPUT
LPB 13,000 34,000 47,000 BTU/Hr
LSB2PC 2 @ 15,000 30,000 BTU/Hr
LCB1 1 @ 15,000 15,000 BTU/Hr
LCB2 2 @ 15,000 30,000 BTU/Hr
MODEL-SPECIFIC BTU OUTPUTS
