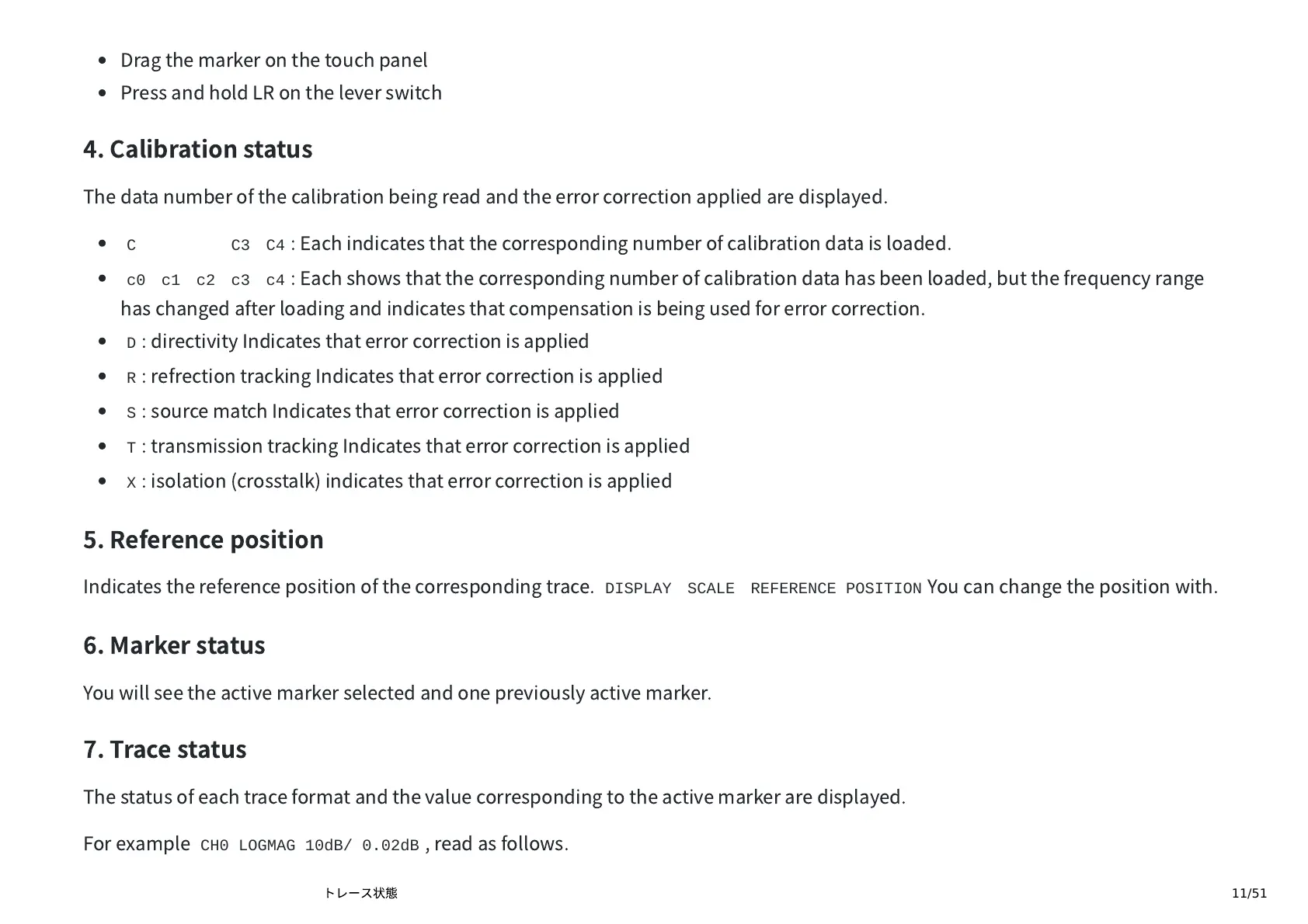

4.

Calibration

status

The

data

number

of

the

calibration

being

read

and

the

error

correction

applied

are

displayed.

C0

C1

C2

C3

C4

:

Each

indicates

that

the

corresponding

number

of

calibration

data

is

loaded.

c0

c1

c2

c3

c4

:

Each

shows

that

the

corresponding

number

of

calibration

data

has

been

loaded,

but

the

frequency

range

has

changed

after

loading

and

indicates

that

compensation

is

being

used

for

error

correction.

D

:

directivity

Indicates

that

error

correction

is

applied

R

:

refrection

tracking

Indicates

that

error

correction

is

applied

S

:

source

match

Indicates

that

error

correction

is

applied

T

:

transmission

tracking

Indicates

that

error

correction

is

applied

X

:

isolation

(crosstalk)

indicates

that

error

correction

is

applied

5.

Reference

position

Indicates

the

reference

position

of

the

corresponding

trace.

DISPLAY

SCALE

REFERENCE POSITION

You

can

change

the

position

with.

6.

Marker

status

You

will

see

the

active

marker

selected

and

one

previously

active

marker.

7.

Trace

status

The

status

of

each

trace

format

and

the

value

corresponding

to

the

active

marker

are

displayed.

For

example

CH0 LOGMAG 10dB/ 0.02dB

,

read

as

follows.
