diameter 600mm
•
Honey extractor’s weight – 21 kg
diameter 500 mm
Legs and beam ate powder-coated
Components of the honey extractor
with electric drive:
Drum with the engine installed
Assembling elements (list below)
Lid (2 pcs).
Plastic valve (c)
MDD controlling
•
Honey extractor’s legs (b)
Manual
Guarantee

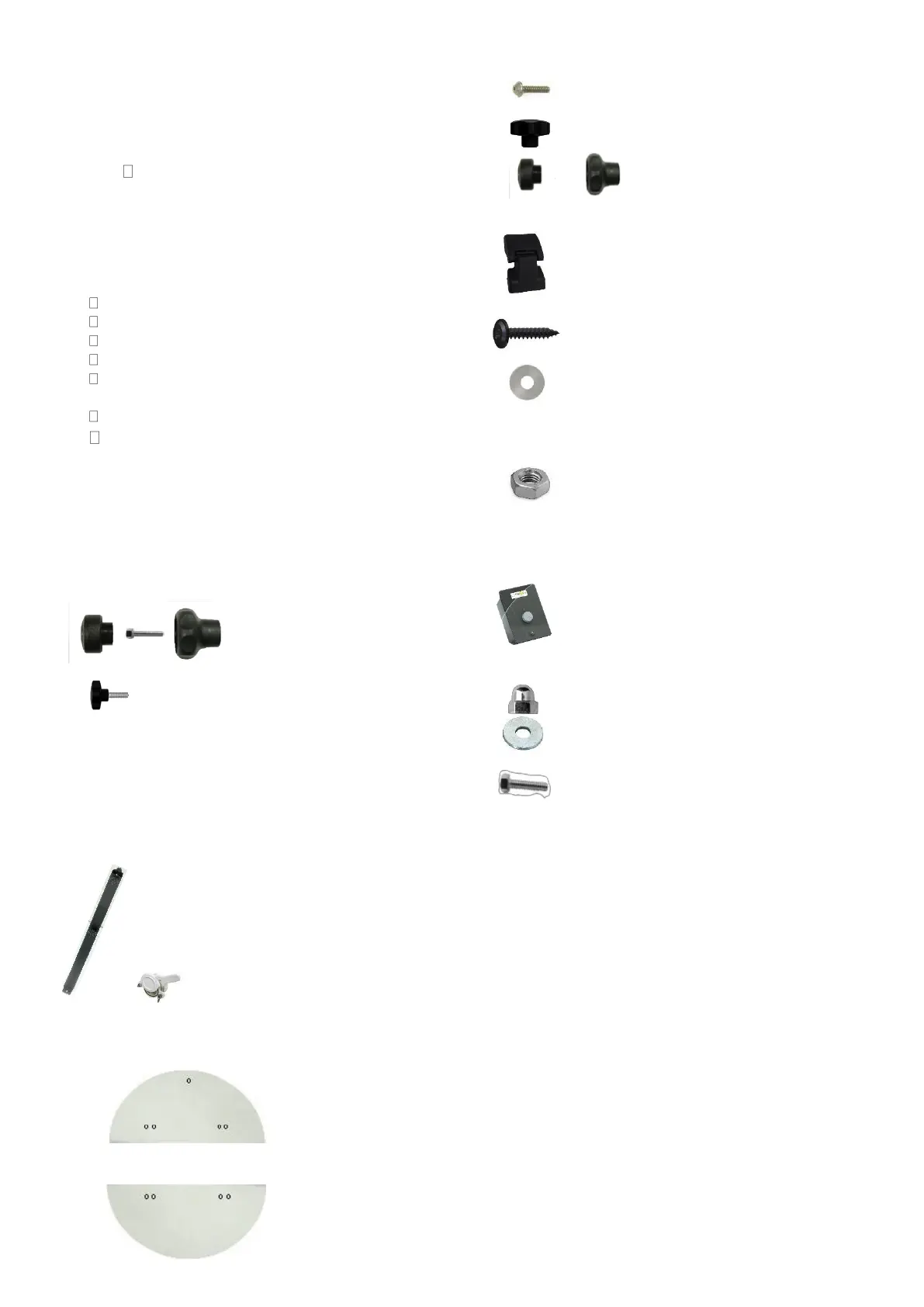

The list of assembling elements:
Leg fixing:
f. screw for screwing the handle to cover - 1pc
g. handle to lift the lid – 1 piece
h. lid hinge – 4 pcs
i. screw 4,2x19 – 16 szt
j. washer extended to hold the nuts
Plexiglas – 8 pcs
k. nut for conical Allen bolts for
Plexiglas and beam M5 – 16 pcs
Controller fixing:
l.honey extractors control unit
I1. Cap nut M8 – 2 pcs
I2. washer 8 – 2 pcs
I3. Bolt M8x25-2 pcs
a.leg fixing knob - 6 spcs
b. screw for knob 118x20
c. legs – 3 pcs
d . valve
Lid fixing:
e. Upper lid made of Plexiglas with five orifices - 1
pc
f. e1. Rear lid made of Plexiglas with four orifices
Assembling the Basic-series honey
extractor with electric drive
1. Take the drum with installed engine out of
the carton box
2. Take out the elements for self-assembling
3. Assemble the legs and the valve
4. assemble the Plexiglas
5. assemble the controlling unit
