Fixing the controlling unit
3.2.
Technical parameters of the
manual honey extractor
Drum of the extractor is made of stainless and
acid-resistant steel plate, thickness 0.6 mm.
The proper arrangement of the rabbets
reinforces the drum construction even more.
Basket design
Diagonal basket made of stainless and acid-
resistant rods, thickness 2 and 5 mm, arranged in
the way protecting the frames from honeycombs
breaking out during spinning. Meshing size 30x60
mm. The basket placed on the sliding-retaining
sleeve.
Manual drive with a brake mounted on the upper
beam of the extractor. Makes it possible to
operate the device when the access to electricity
is impossible. Manual drive casing is made of
powder-coated metal. Steel rolled gears transfer
the torque to the basket axis.
d.
c. a,b
Fixing the valve
Fixing the legs
Screwing the hinges to the beam
Lid
Transparent lid made of metaplex, thickness 3
mm, protects a user against the hazard of coming
into contact with a spinning basket and getting
dirty .
Drain valve-plastic, 6/4”
•
Drum height (without drive)-610mm.
•
Drum height, without drive, with legs-
950mm.
•
Extractor weight – 24.5 kg d= 600mm
•
Extractor weight –21 kg d= 500 mm
• Legs and beam powder-coated

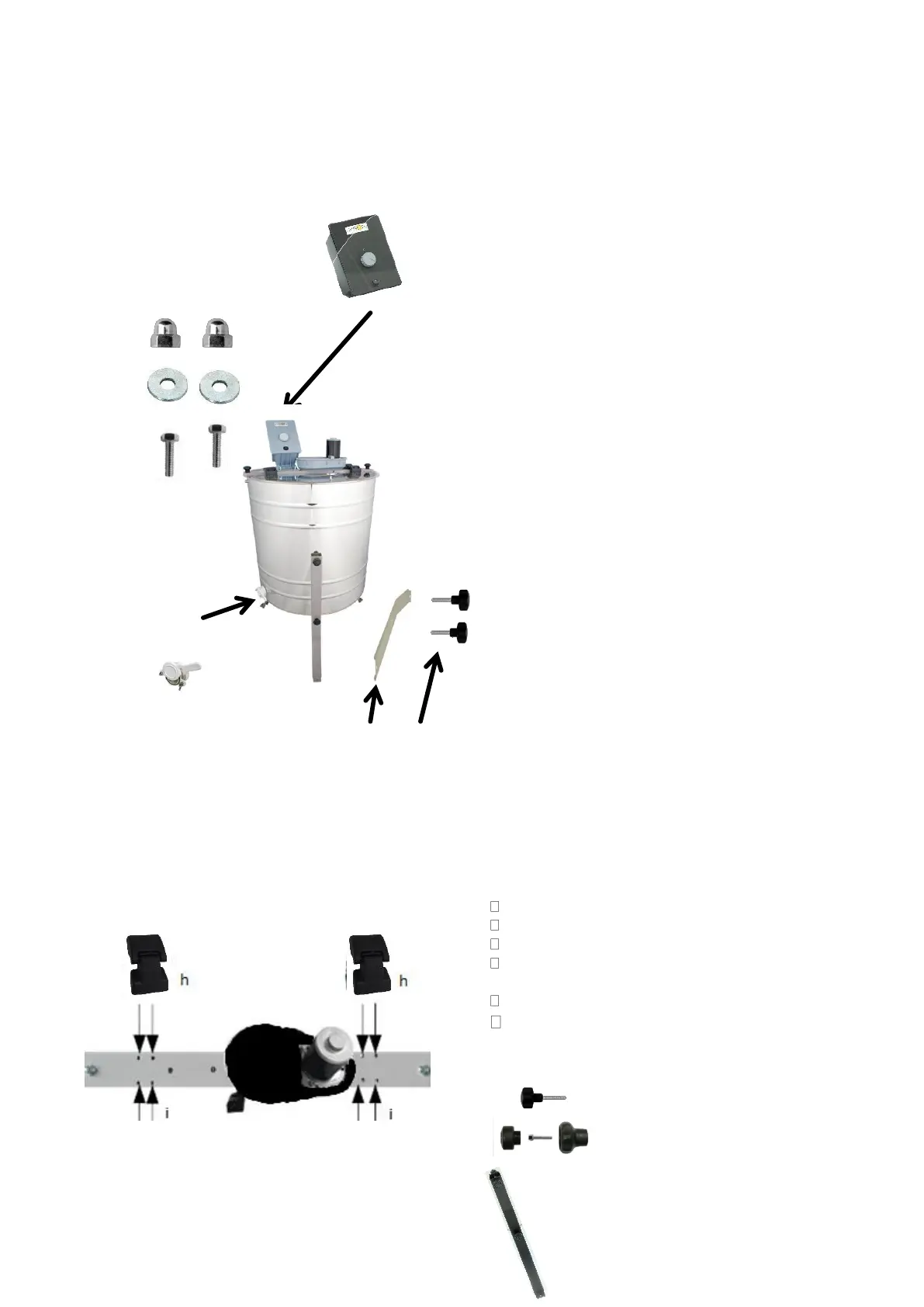

Components of the Basic-
series extractor with manual
drive
Drum with engine mounted
Assembling elements (list below)
lid 2 pcs
plastic valve
•
extractor’s legs
manual
guarantee
List of assembling elements:
Fixing the legs
a. knob to fix the legs - 6 pcs.
b. screw M8x20 to install
c. extractor’s legs – 3 pcs
