3.3.1. Technical parameters :
• Diagonal basket, made of stainless and acid
resistant steel rods, thickness of 2 mm and 5 mm,
spaced in the way to protect the frames against
comb breaking out during extraction. Size of the
mesh: 20x20 mm, the basket with additional
bearing in lower housings
• The drum made of stainless and acid-resistant steel
plate 0H18N9. Drum bottom in conical shape,
which allow for honey to drain freely, properly
reinforced and stiffened.
• Rim, legs, upper beam and manual drive powder
coated
• Transparent lid, made of metaplex, thickness 3mm
• Plastic hinges
• Safety lock mounted on the strip
• Electric drive mounted at the bottom. Engine:250W
/ 24V.
• Stainless flap valve 5,4”
• Controller supplied by 12V DC or 230 V AC - SDD-
2DP
• Manual drive with a brake mounted on the upper
beam, allows to operate the device when the
access to electricity is limited

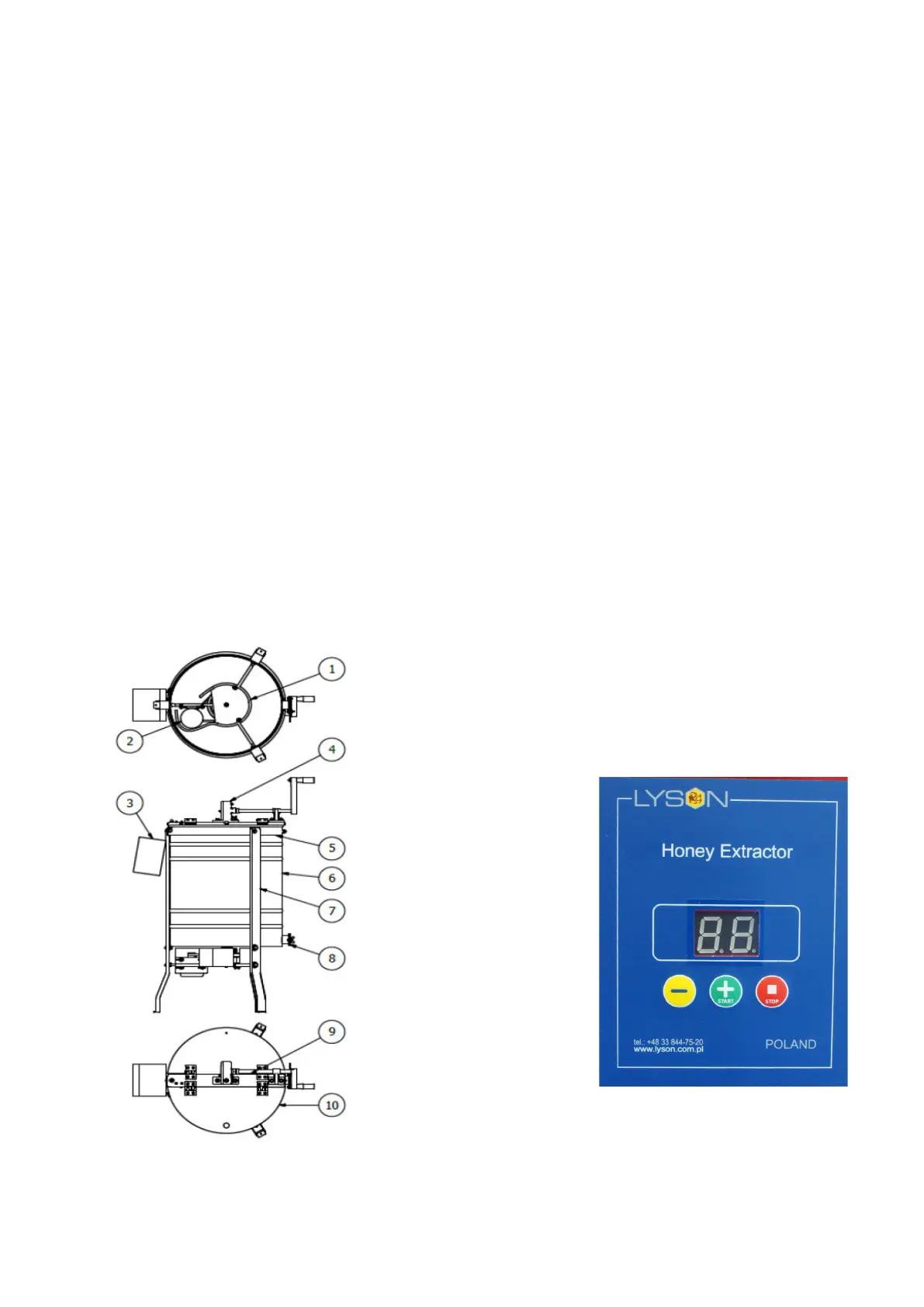

3.3.2. Diagram for manual and electric
honey extractors
LEGEND
1. Engine cover
2. Honey extractor engine 250W/24V
3. Honey extractor controller SDD
4. Honey extractor manual drive
5. Honey extractor rim
6. Honey extractor drum
7. Honey extractor leg
8. Honey extractor flap valve
9. Fastening strip with a lock
10. Honey extractor lids
4. Manual to handle the controller in radial and
diagonal honey extractors with electric and
combined manual and electric drives.
SDD-2DP system remains an advanced, DC engine rotation
regulator based on a microprocessor, which improves the
comfort and economy of honey extractor operation . Its
main features are:
• A possibility to precisely configure the ramp-up time
and speed
• Electronic overload protection .
• Function Auto Power OFF, which deactivates the
engine power supply after 15 minutes of inactivity
• Using the PWM technique combined with highly
effective power path and MOSFET technology
allowed to achieve high operational effectiveness
and relatively low electricity consumption.
• Clear and ergonomic operating panel allows to work
with the device in a comfortable manner.
CONTROLLING IN 3,4,5 – COMB
RADIAL AND DIAGONAL HONEY
EXTRACTORS WITH ELECTRIC AS
WELL AS MANUAL AND ELECTRIC
DRIVES
Controlling panel is equipped with navigating buttons
„PLUS”, „MINUS” and „STOP”.
4.1. Controller characteristics:
Regulator SDD-2DP has an option to individually
select the regulation characteristics – adjusts to the power
supply conditions and to the parameters of the engine
connected. Selection of the characteristics is based on
setting up the three parameters: the one responsible for the
lower limit of the engine rotational speed (L parameter),
