M-Audio Ozonic - System Requirements and Controls; Minimum System Requirements; Top Panel Controls and Descriptions

5
Minimum System Requirements*
IMPORTANT: The Ozonic is supported under Windows XP; it is not supported under Windows 98, 98SE or Windows ME or 2000. You must be
running Service Pack 1 (SP1) or later. Visit the Windows update web pages (http://windowsupdate.microsoft.com/) to make certain you have
the most current updates and fixes supplied by Microsoft.
On the Macintosh, the Ozonic is supported under Mac OS X version 10.2.8 or version 10.3.4 or later. Earlier versions of Mac operating systems
are not supported.
* M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than the above.
** G3/G4 accelerator cards not supported.
Controls and Connectors

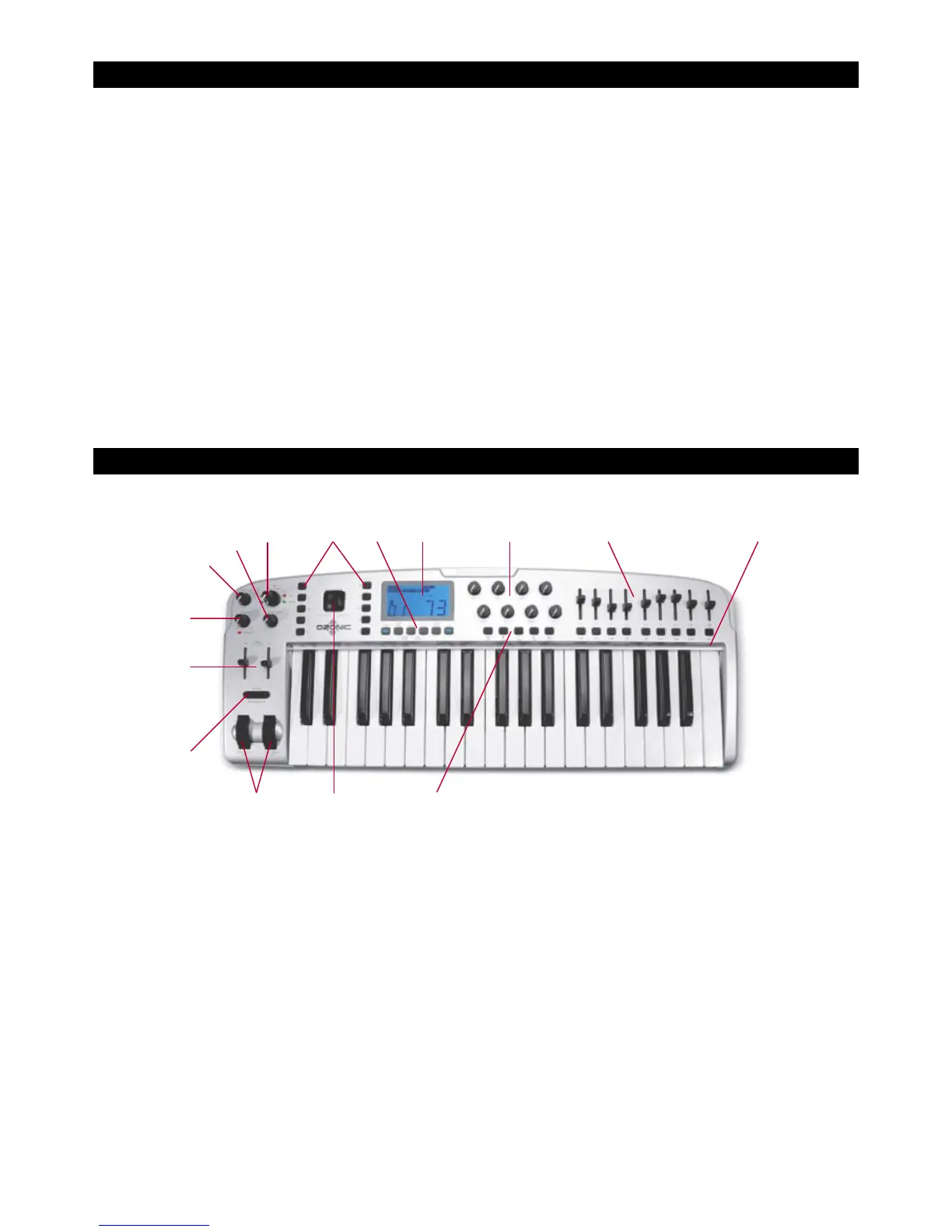

Top Panel Diagram
Top Panel Descriptions
1. Octave +/- Button:
allows you to shift the octave of the keyboard up or down to extend the range of the keybed
2. Output Level Sliders:
controls the volume level of both output pairs
3. Headphone Source Knob:
controls which audio output stream the headphones will monitor
4. Headphone Level Knob:
controls the headphone volume level
5. Direct Monitor Level Knob:
controls the amount of the input signal sent directly to the outputs
6. Input Gain Knob:
controls the mic and instrument gain for Inputs 1 & 2
7. Preset/Zone/Group Selector Buttons: 10 preset memory buttons for both Bank A and B allow you to select Zones and Groups
8. Real-Time Advanced Function Buttons: control the MIDI functions that you will use in real time; programming functions are on the
keybed
9. LCD Screen:
shows all MIDI activity
10. 8 Rotary Knobs:
8 MIDI-assignable knobs
11. 9 Faders:
9 MIDI-assignable sliders
12. Programming Functions:
advanced MIDI programming functions
13. Pitch Bend and Modulation Wheels:
control sound manipulation of pitch and modulation
14. The Joystick
15. 14 MIDI Assignable Buttons
7 8 9
15
10 11 12
6
5
4
3
2
1
13 14
Windows
< Pentium 3 – 800 MHz or higher
(CPU may be higher for laptops)
< 256 MB RAM
< DirectX 9.0b or higher
< Windows XP (SP1) or higher
(Windows 98, Me, NT, or 2000 not supported)
Mac OS
< Macintosh G3** 800/G4** 733 MHz or higher
(CPU may be higher for laptops)
< OS X 10.2.8 W/ 256 MB RAM
< OS X 10.3.4 or greater w/ 512 MB RAM
