Transport and storage 21/56
RE 93221-01-B/07.2013, A22VG Series 40, Bosch Rexroth AG
You can hoist the axial piston unit as shown in Fig. 4 with the eye bolt screwed into
the drive shaft.

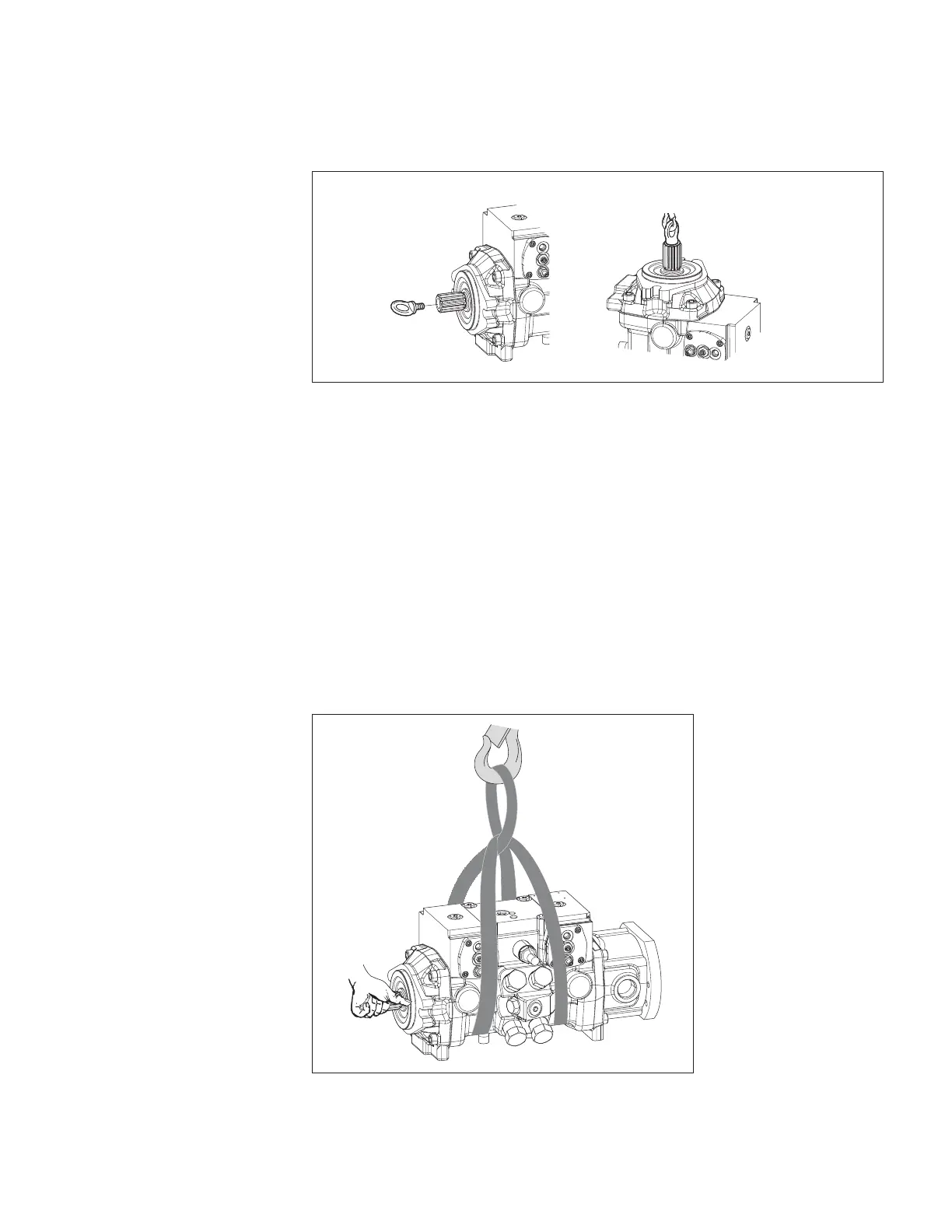

Fig. 4: Fixing the eye bolt
WARNING! Danger from suspended loads!
During transport with a lifting device, the axial piston unit can fall out of the lifting
strap and cause injuries.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit is securely fixated with the lifting strap.
▶ Only guide the axial piston unit by hand for fine positioning and to avoid
oscillations.
▶ Never stand under or put you hands under suspended loads.
▶ Place the lifting strap around the axial piston unit in such a way that it neither
passes over the attachment parts (e.g. valves) nor that the axial piston unit is
hung from attachment parts (see Fig. 5).
Fig. 5: Transport with lifting strap
Transport with lifting strap
