Mechanical Combination Lock
M-LOCKS BV Tel: +31 (0)314 376 876
Vlijtstraat 40 ver. 1.2 2017 12 11 Fax: +31 (0)314 376 878
NL-7005 BN Doetinchem 2 www.m-locks.com

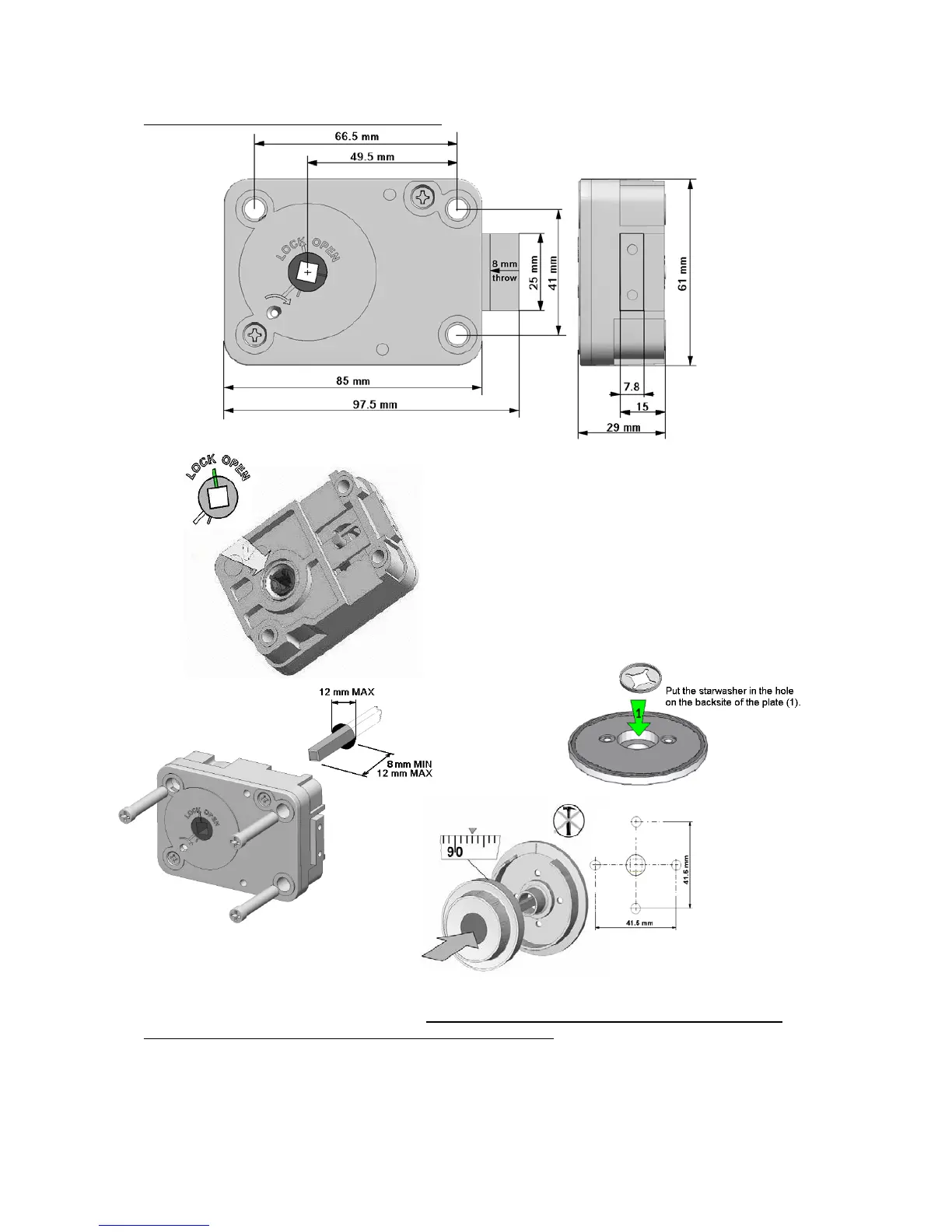

DIMENSIONS / MOUNTING INSTRUCTIONS
The Lock is delivered with the Bolt retracted and
ready for mounting. Do not move the cam (part
with square hole) or the bolt. During installation
the bolt must stay in retracted position and
the cam lined up as shown left.
Only use the delivered 3 mounting screws (3x M6 with US ¼” available on demand) and fasten
handtight. (Torque approximately 3,5 Nm).
With the lock in OPEN-position (bolt retracted) hold the
dial in a way that approximately “93” is under the opening index and push it with some pressure into
the lock. The shaft cannot be pulled out.
