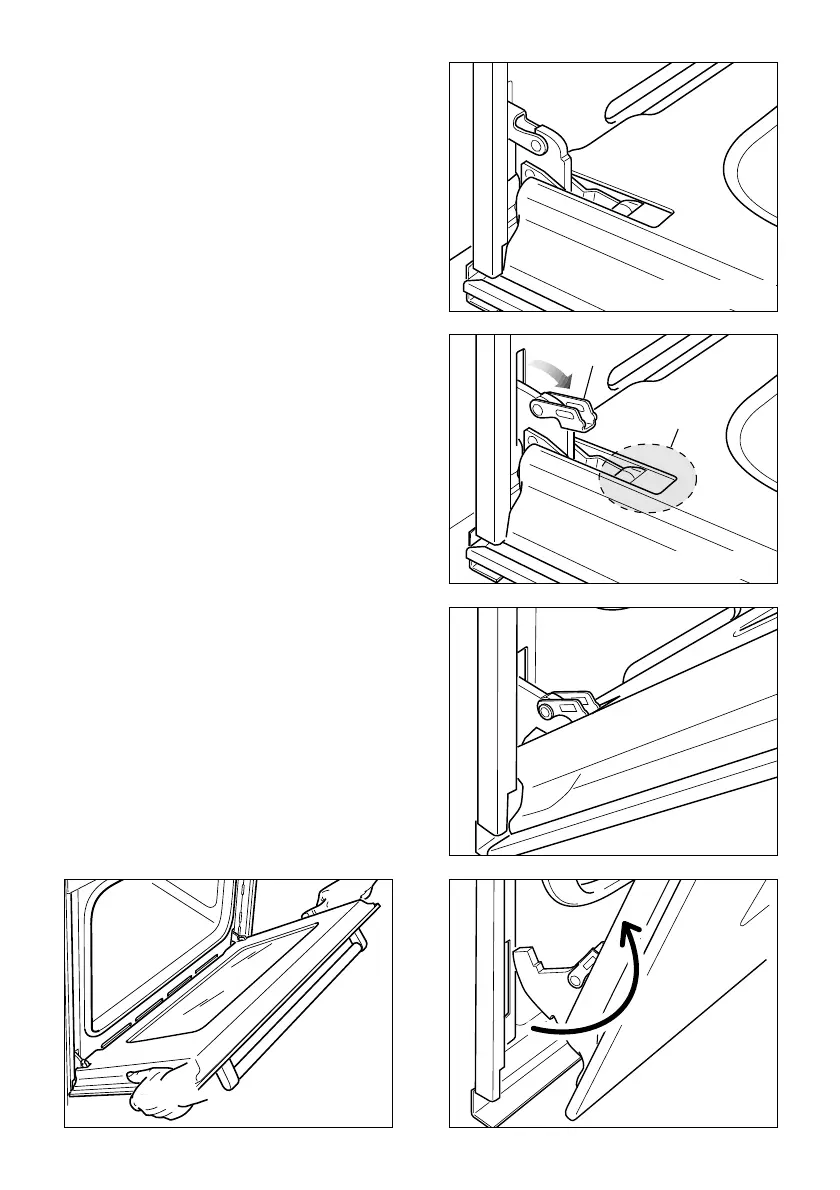

REMOVING THE OVEN DOOR
The oven door can easily be removed as
follows:
– Open the door to the full extent (fig.
4.4a).
– Open the lever “A” completely on the
left and right hinges (fig. 4.4b).
– Hold the door as shown in fig. 4.4.
– Gently close the door (fig. 4.4) until left
and right hinge levers “A” are hooked
to part “B” of the door (fig. 4.4b)
– Withdraw the hinge hooks from their
location following arrow “C” (fig. 4.4d).
– Rest the door on a soft surface.
– To replace the door, repeat the above
steps in reverse order.
