76
319,5
113,5

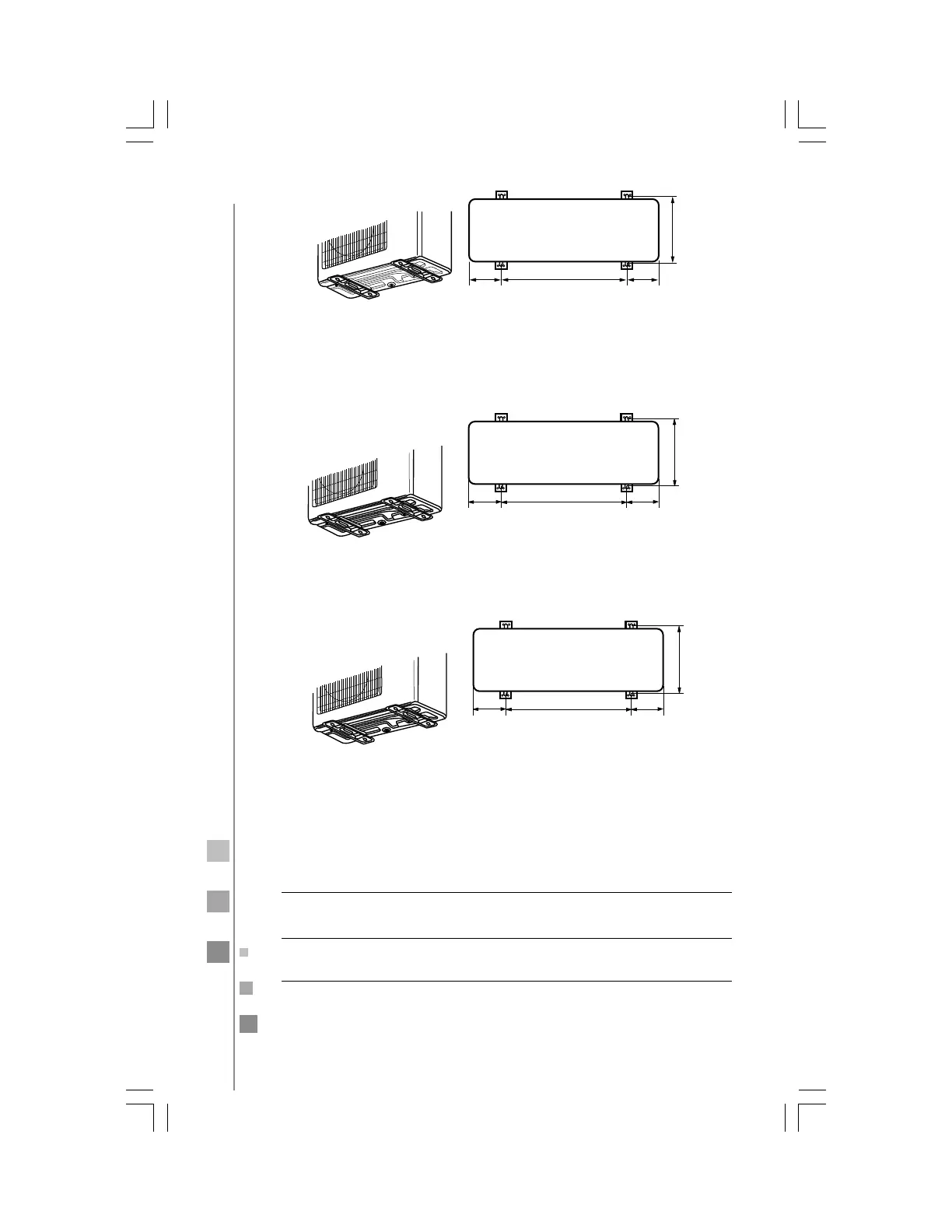

Outdoor unit floor fixing dimensions.
Units in mm
583 113,5
For 24 000 BTU/h systems
317
130
Outdoor unit floor fixing dimensions.
Units in mm
500 150
For 24 000 BTU/h systems
selection of pipes
Liquid pipe
(diameter)
Gas pipe
(diameter)
9000 and some
12000 BTU
systems
24000 BTU
systems
6,35 mm (1/4") 6,35 mm (1/4")
9,52 mm (3/8") 15,9 mm (5/8")
NOTE: The thickness of the pipe must be 0,8 mm at least.
18000 and
some 12000
BTU systems
6,35 mm (1/4")
12,7 mm (1/2")
In order to know the pipe diameter of the acquired model, check
the model label located on one side of the unit.
256
140
Outdoor unit floor fixing dimensions.
Units in mm
500 140
For 9 000 BTU/h, 12 000 BTU/h
and 18 000 BTU/h systems
