mabe MMI18CDBWCA6M8 - Outdoor Unit Overview

50

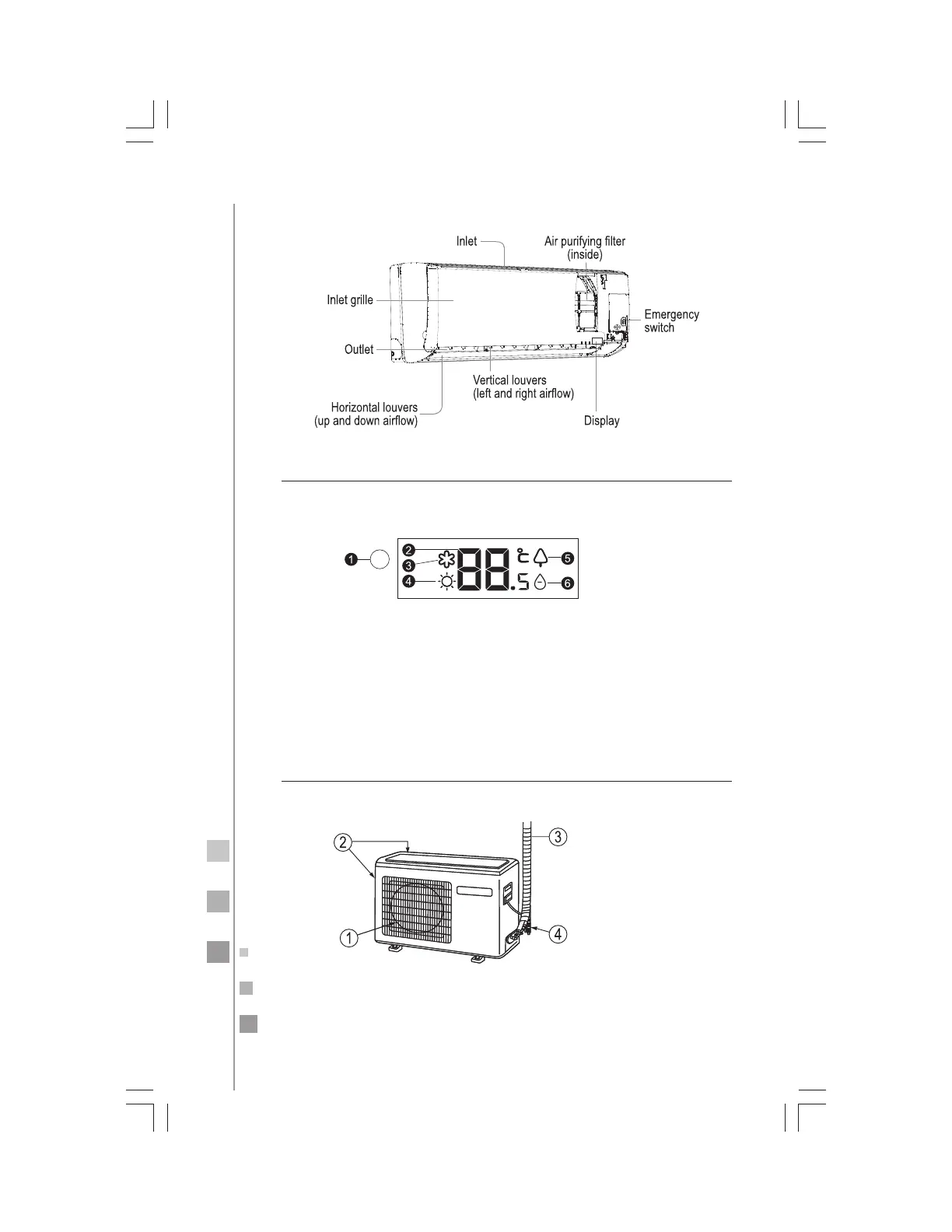

display board
display board A
1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal,
display the set temperature.
3. COOL display
4. HEAT display
5. HEALTH display
6. DRY display
outdoor unit
1. Outlet
2. Inlet
3. Connecting piping and electrical wiring
4. Drain hose
