76
selection of pipes
Liquid pipe
(diameter)
Gas pipe
(diameter)
some 12000 BTU
systems
6,35 mm (1/4")
9,52 mm (3/8")
NOTE: The thickness of the pipe must be 0,8 mm at least.
18000,24000 and
some 12000
BTU systems
6,35 mm (1/4")
12,7 mm (1/2")
In order to know the pipe diameter of the acquired model, check
the model label located on one side of the unit.

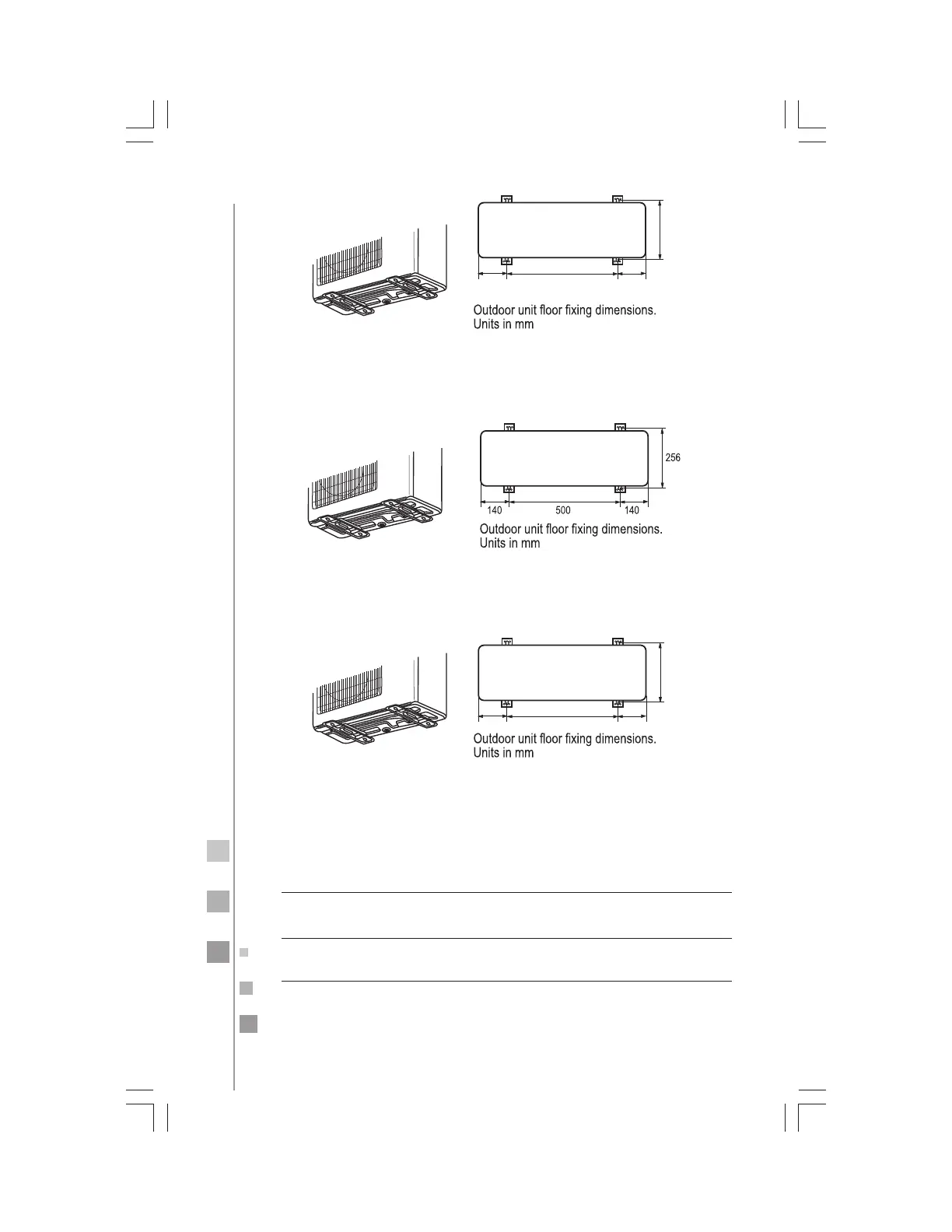

130
160
510
313
For 18 000 BTU/h and some 12 000 BTU/h system
For some 12 000 BTU/h
114.2
114.2
590
324
For some 24 000 BTU/h
