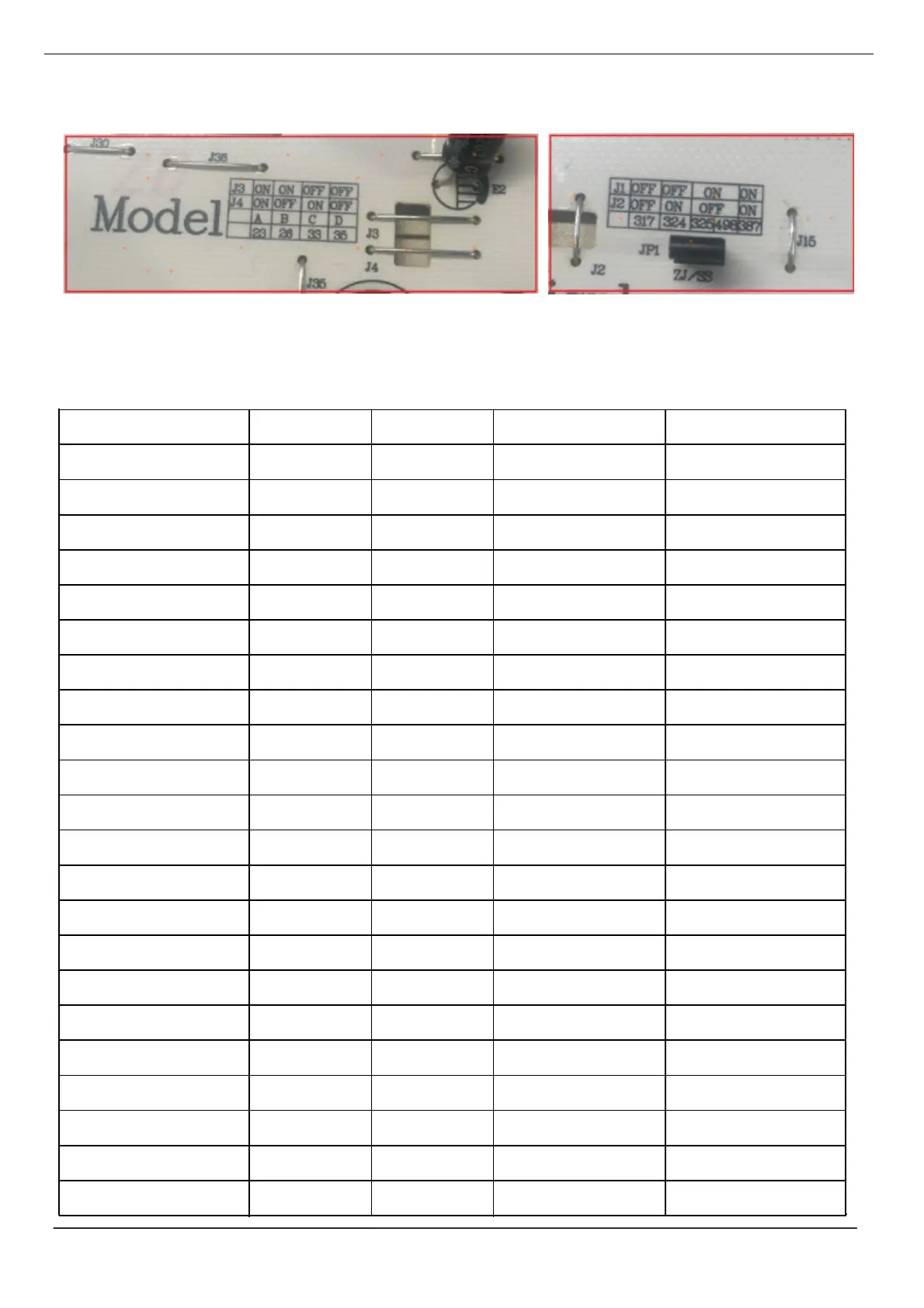

mabe N Series - Route on;off; DIP Switch Settings; Model-Specific Jumper Configurations

Customer Model Display PCB PCB Route on/off Display Route on/off
MMT12CDBSCCEI8 NJ Silver 0011800323C
26 J4 ON J8 OFF
317 J11 ON J33 OFF
MMI12CDBWCCEI8 NM 0011800743
35 J3 OFF J4 OFF
387 J1 ON J2 ON
MMI18CDBWCCEI8 NM 0011800742
26 J3 ON J4 OFF
387 J1 ON J2 ON
MMI24CDBWCCEI8 NM 0011800742
35 J3 OFF J4 OFF
387 J1 ON J2 ON
MMT12CDBWLCCEI8 NR 0011800323C
26 J4 ON J8 OFF
498 J11 ON J3 OFF
MMT12CABWCAMI8 NM 0011800491K
32 J1 ON J2 OFF
387 J3 OFF J4 OFF
MMT12CDBWCAMI8 NM 0011800323N
26 J1 OFF J2 ON
387 J3 OFF J4
OFF
MMT12CABWLCAMI8 NR 0011800491K
32 J1 ON J2 OFF
498 J3 OFF J4 ON
MMT12HABWLCAMI8 NR 0011800491J
32 J1 ON J2 OFF
498 J3 OFF J4 ON
MMT12CDBWLCAMI8 NR 0011800323N
26 J1 OFF J2 ON
498 J3 OFF J4 ON
MMT12HDBWLCAMI8 NR 0011800323K
26 J4 ON J8 OFF
498 J11 ON J3 OFF
MMT12HABWCAMI8 NM 0011800491J
32 J1 ON J2 OFF
387 J3 OFF J4 OFF
MMT12HDBWCAMI8 NM 0011800323K
26 J4 ON J8 OFF
387 J11 ON J33 ON
MMT18CDBWCAMI8 NM 0011800323W
23 J4 ON J8 ON
387 J11 ON J33 ON
MMT18HDBWCAMI8 NM 0011800323A
26 J4 ON J8 OFF
387 J11 ON J33 ON
M
MT24CDBWCAMI8 NM 0011800323G
35 J4 OFF J8 OFF
387 J11 ON J33 ON
MMT24HDBWCAMI8 NM 0011800323H
26 J4 ON J8 OFF
387 J11 ON J33 ON
MMI12CDBSCCEI8 NJ Silver 0011800743
35 J3 OFF J4 OFF
317 J1 OFF J2 OFF
MMI24CDBSCCEI8 NJ Silver 0011800742
35 J3 OFF J4 OFF
317 J1 OFF J2 OFF
MMI12CDBWCAMI8 NM 0011800743C
23 J3 ON J4 ON
387 J1 ON J2 ON
MMI18CDBWCAMI8 NM 0011800742
26 J3 ON J4 OFF
387 J1 ON J2 ON
MMI18HDBWCAMI8 NM 0011800744
23 J3 ON J4 ON
387 J1 ON J2 ON
Route on/off
Domestic air conditioner
47
9.Route on/off
Model Display
Notes:
1.When you change the indoor PCB,you might need to cut the jumper,depends the model.The old
(faulty) PCB can be your reference.
2."ON" means the jumper is connected, "OFF" means we need to cut the jumper.
