What’s in the Box Tools and Supplies
• MAC 520 DAB Head Unit
• Double DIN Half Sleeve Install Bracket
• Custom Cosmetic Trim Ring
• Hardware Bag
• Power / Speaker Harness with ISO connectors
• A/V Input/Output Harness
• External Microphone
• Owner’s Manual
• Installation Guide
You will need these tools and supplies for installation:
• Torx type, fat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw driver, socket
wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to
installation.
Replacing the Fuse
The fuse is located next to the receptacle for the Power / Speaker Harness. When replacing the fuse, use a new
15A replacement fuse. Using a fuse with an improper rating could damage the unit and cause a fre.
ISO-DIN Installation
This unit is designed to ft into a 2.0 DIN
dashboard opening, found in many impor-
ted cars. The unit has threaded holes in the
chassis side panels which may be used with
the original factory mounting brackets of some
Toyota, Nissan, Mitsubishi, Isuzu, Hyundai
and Honda vehicles to mount the radio to the
dashboard. Please consult with your local car
stereo specialty shop for assistance on this
type of installation.
1. Remove the existing factory radio from the
dashboard or center console mounting.
Save all hardware and brackets as they will
be used to mount the new radio.

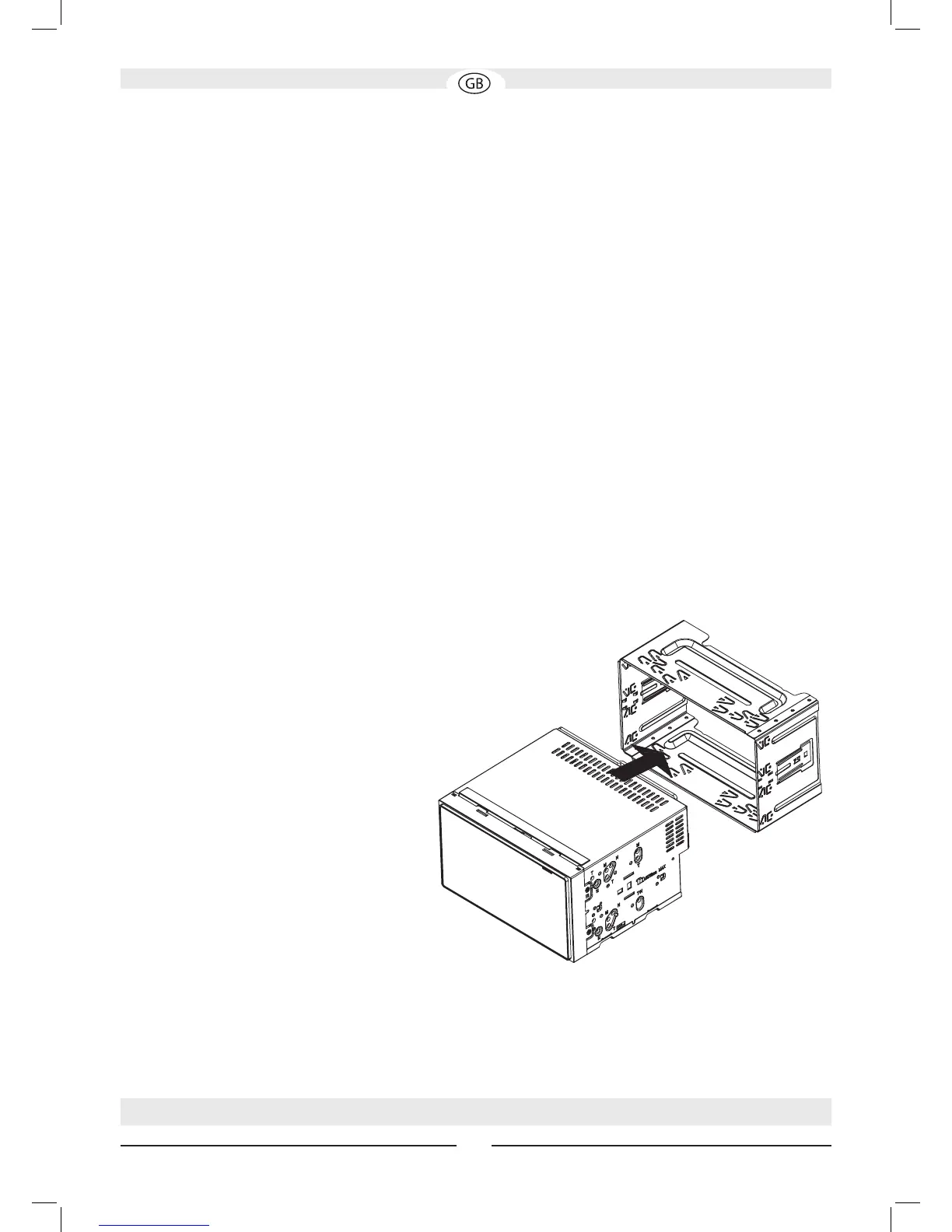

2. Remove the factory mounting brackets and
hardware from the existing radio and attach
them to the new radio.
CAUTION! Do not exceed M5 X 6MM
screw size. Longer screws may damage
components inside the chassis.
WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions.
