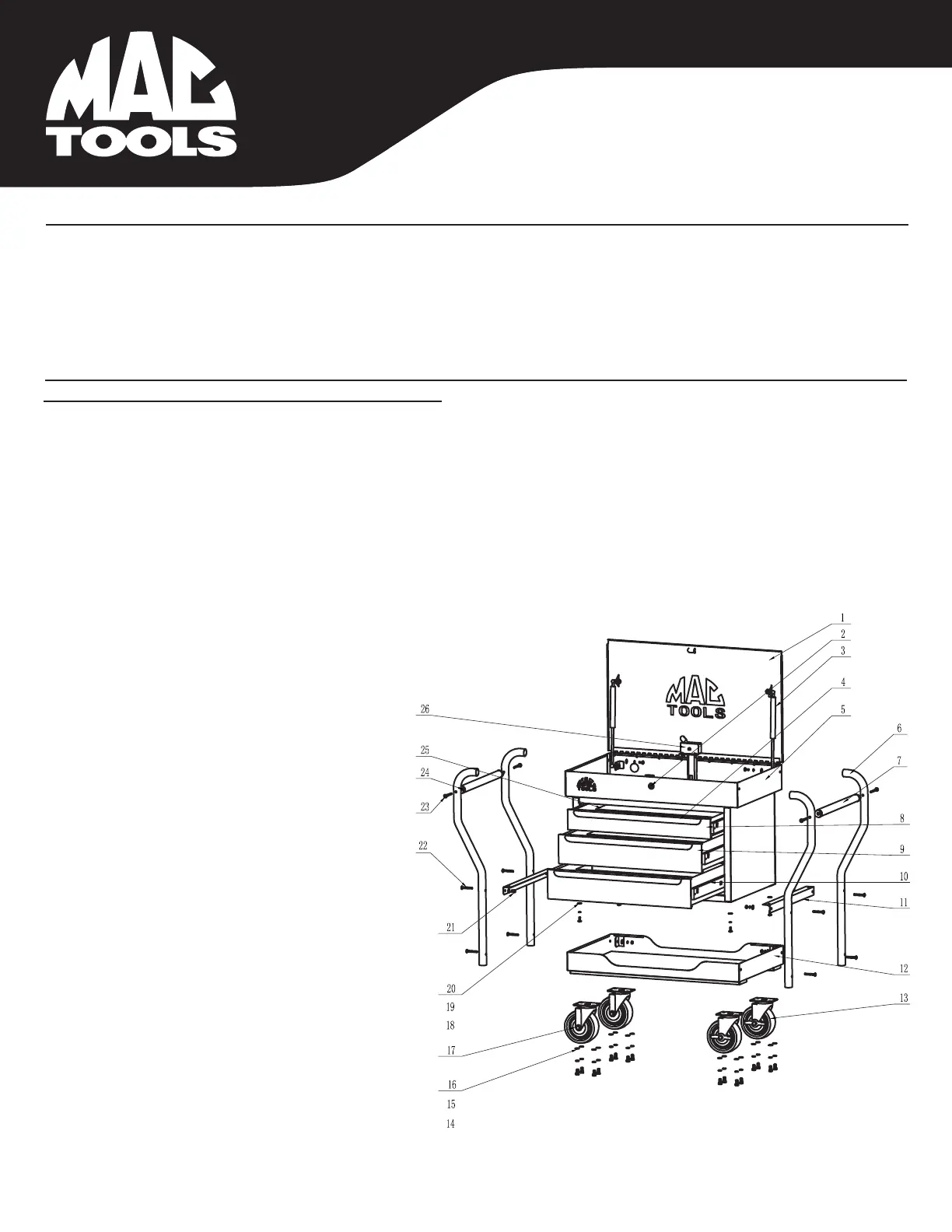

PARTS LIST AND PARTS DRAWING
Item No.Part No. No. Req'd Description
1 MB303LIDR 1 Lid - Red
MB303LIDBK 1 Lid - Black
MB303LIDBL 1 Lid - Blue
MB303LIDOR 1 Lid - Orange
MB303LIDLG 1 Lid - Lime Green
2 RS303LKBK 1 Lock Kit - Black
3 RS303GPBK 2 Gas Piston - Black
4 RS303DPTBK 3 Drawer Pull - Textured Black
5 1 Cart body
6 RS303TLTBK 1 Tube Leg - Textured Black (4 pc set)
7 RS303PHTBK 2 Push Handle - Textured Black (incl #24)
8 MB3033D 1 3-1/2" Drawer - Red
MB3033DBK 1 3-1/2" Drawer - Black
MB3033DBL 1 3-1/2" Drawer - Blue
MB3033DOR 1 3-1/2" Drawer - Orange
MB3033DLG 1 3-1/2" Drawer - Lime Green
9 MB3035D 2 4-1/2" Drawer - Red
MB3035DBK 2 4-1/2" Drawer - Black
MB3035DBL 2 4-1/2" Drawer - Blue
MB3035DOR 2 4-1/2" Drawer - Orange
MB3035DLG 2 4-1/2" Drawer - Lime Green
10 RSRBSLIDEC2 3 Roller Bearing Slides
11 RS303SBR 2 Support Beam - Red
RS303SBBK 2 Support Beam - Black
RS303SBBL 2 Support Beam - Blue
RS303SBOR 2 Support Beam - Orange
RS303SBLG 2 Support Beam - Lime Green
12 RS303BTR 1 Bottom Tray - Red
RS303BTBK 1 Bottom Tray - Black
RS303BTBL 1 Bottom Tray - Blue
RS303BTOR 1 Bottom Tray - Orange
RS303BTLG 1 Bottom Tray - Lime Green
13 RS323UCLC 2 5"x1.5" Swivel Locking Caster
14 * 16 Hex Screw (M8x16)
15 * 16 Spring Spacer (8.5x1.5)
16 * 16 Spacer (8.5x1.5)
17 RS323UCNLC 2 5x1.5” Swivel Non-locking Caster
18 ** 4 M6x12 Inner hexagon head screw - Black
19 ** 16 8 Spacer - Black
20 ** 16 8 Spring Spacer - Black
21 ** 8 M6 Nut - Black
22 ** 8 M6x45 Round Head Bolts - Black
23 RS303HK2 4 Push Handle Hardware Kit (M6x50) Screws - Black
24 RS303PHC 4 Push handle Cover (incl w/#7)
25 RS3035ELK 1 EVA Liner Kits (5 pc set)
26 RS303LMR 1 Lock Mechanism - Red
RS303LMBK 1 Lock Mechanism - Black
RS303LMBL 1 Lock Mechanism - Blue
RS303LMOR 1 Lock Mechanism - Orange
RS303LMLG 1 Lock Mechanism - Lime Green
27 ** 4 M6x25 Inner hexagon head screw - Black
not shown
RS303LMLK 1 Product Label Kit
Also available:
* RS89UCCBBK – Caster Hardware Kit (incl #14, 15 & 16) - Black
** RS303HK1 – Leg & Frame Hardware Kit (incl #18, 19, 20, 21, 22 & 27)
UC3919-3DRW-BK/UC3919-3DRW-BL
UC3919-3DRW-LG/UC3919-3DRW-OR
UC3919-3DRW-RD
-BK, -BL, -LG, -OR, -RD
3 DRAWER UTILITY CART
Problem: Drawers appear not to fit, do not slide in accurately and bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the mounting slots on all drawers. They potentially could fall out of position in shipment or
during assembly. Remove the drawer that is out of position. The drawer is removed by the two clips on the roller bearing slides.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
