MSCD18-Li-2
Getting Started . . .
Before you start
Inserting

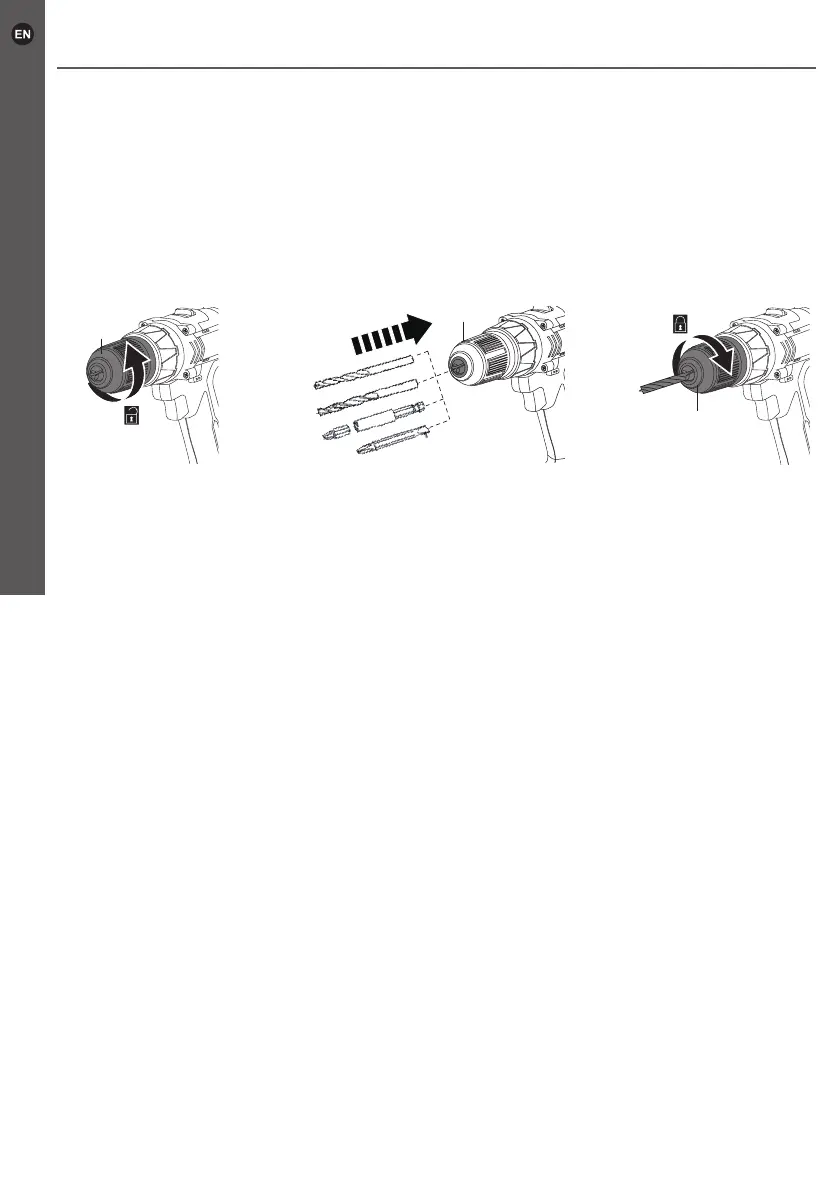

> Turn the chuck sleeve (2) anticlockwise until the chuck jaws are opened wide enough
to insert the drill bit (Fig. 1).
> Insert the drill bit all the way to the stop (Fig. 2). If using a 25 mm driver bit, insert it
into the socket of a bit holder.
> Turn the chuck sleeve (2) clockwise until the drill bit is properly fastened in the chuck
jaws (Fig. 3).
2
Fig. 1 Fig. 2 Fig. 3
2
2
Removing / Replacing
> Turn the chuck sleeve (2) anticlockwise until the chuck jaws are opened wide enough
to remove the bit.
> Remove the bit and insert a new one as described above if desired.
