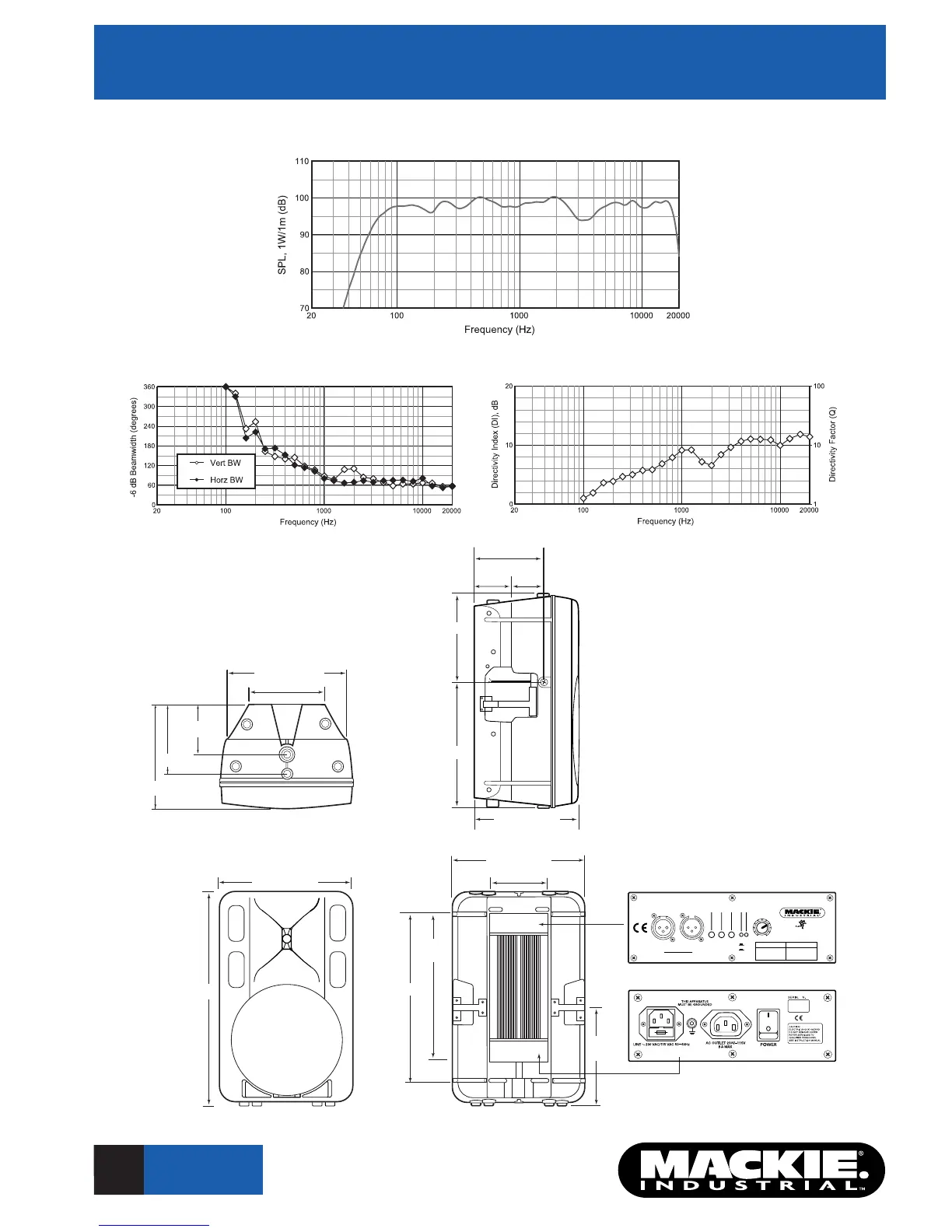

Mackie ART400A - ART400 A System Performance and Dimensions; Frequency Response and Beamwidth; Directivity Index; Physical Dimensions and Connections

5
O F 6 PA G E S
ART400A
Two-Way Active Speaker System
Frequency response is measured on-axis at a distance referenced back to
1m at 1-watt drive. Shown as a half space (2π) enviroment.
Directivity Index
Beamwidth vs. Frequency
17.88" (454mm)
14.77" (375mm)
29.15" (740mm)
8.26" (210mm)
10.47" (266mm)
8.11" (206mm)
11.85" (301mm)
17.28" (439mm)
10.47" (266mm)
BOTTOM
REARFRONT
SIDE
20.35"
(517mm)
25.31" (643mm)
11.96"
(304mm)
8.26" (210mm)
5.11"
(130mm)
5.35"
(136mm)
INPUT
MUSICLINE/MIC
OUTPUT
VOICE
OPERATE
LIMIT.
ON
OFF
ON
OFF
LINE
MIC
