7
Quick Start Guide
Quick Start Guide
1. Line Cord Power cord for power connection.
2. Power Switch Turns the monitor on and o.
The front LED will illuminate when powered.
3. Inputs Connect a line-level signal from a computer,
mixer or other signal source.
4. Powered Speaker Position Select Switch Select if
the powered monitor is to be positioned on the lef side
(switch up) or right side (switch down) of your desktop.
5. Wire Terminals (±) Connect black (–) and red (+)
speaker wires from the powered monitors ± spring
clips to the passive monitor’s ± spring clips.
6. Phones Output Connect stereo headphones here.
7. Volume Knob Adjusts the overall output level
and also turns the monitor on and o.
8. Bluetooth Press and hold to pair with a Bluetooth device,
press quickly to connect to last connected Bluetooth
device, or press quickly while connected to Bluetooth
device to pause/play audio. The Bluetooth may disconnect
when aected by Electrostatic Discharge [ESD]. Manually
reconnect the Bluetooth connection.
1. Cable de alimentación Cable de alimentación para
la conexión a la corriente eléctrica.
2. Interruptor de encendido Le permite encender y apagar
este monitor. El piloto frontal se iluminará cuando la unidad
esté encendida.
3. Entradas Conecte una señal de nivel de línea desde
un ordenador, mesa de mezclas u otra fuente de señal.
4. Interruptor Powered Speaker Position Select
Elija con él si este monitor autoamplificado va a ser
colocado en el lado izquierdo (interruptor arriba)
o en el derecho (interruptor abajo) de la base o escritorio.
5. Terminales para cable (±) Conecte los cables de altavoz
negro (–) y rojo (+) desde las pinzas con resorte ±
del monitor autoamplificado a las correspondientes
pinzas con resorte del pasivo.
6. Phones Conecte aquí unos auriculares stereo.
7. Mando Volume Ajusta el nivel de salida global
y también le permite encender y apagar el monitor.
8. Bluetooth Mantenga pulsado este botón para sincronizar
esta unidad con otro dispositivo Bluetooth, púlselo
rápidamente para realizar la conexión al último dispositivo
Bluetooth al que estuvo conectado o púlselo rápidamente
mientras está conectado a un dispositivo Bluetooth para
activar la pausa/reproducir el audio. La conexión Bluetooth
puede desconectarse si se ve afectada por una descarga
de electrostática [ESD]. En ese caso, reconecte
manualmente la conexión Bluetooth.

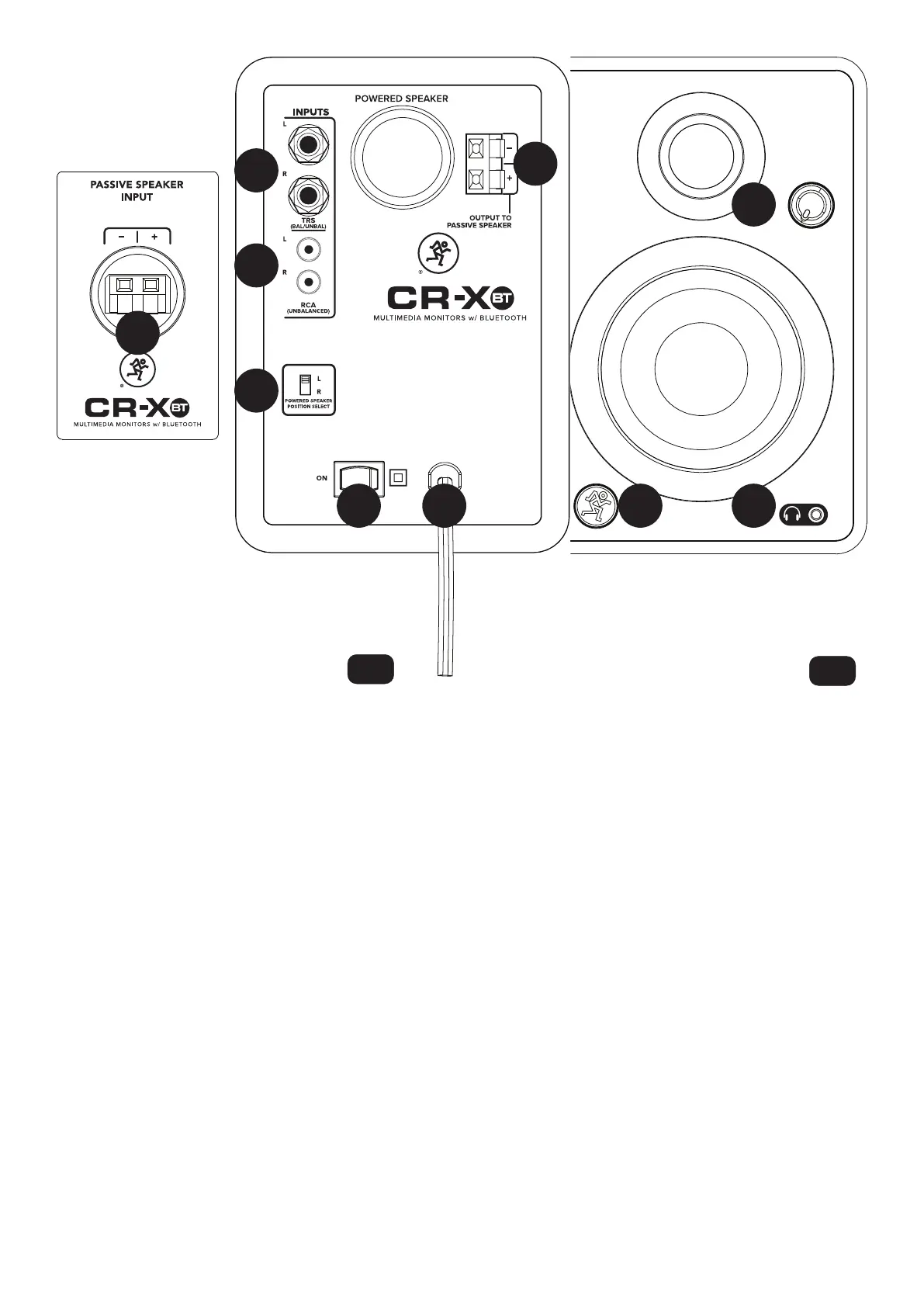

Front & Rear Panel Descriptions –
EN
ES FR DE
Descripción del panel frontal y trasero –
EN
ES
FR DE
1 6
7
2
3
5
5
3
4
8
