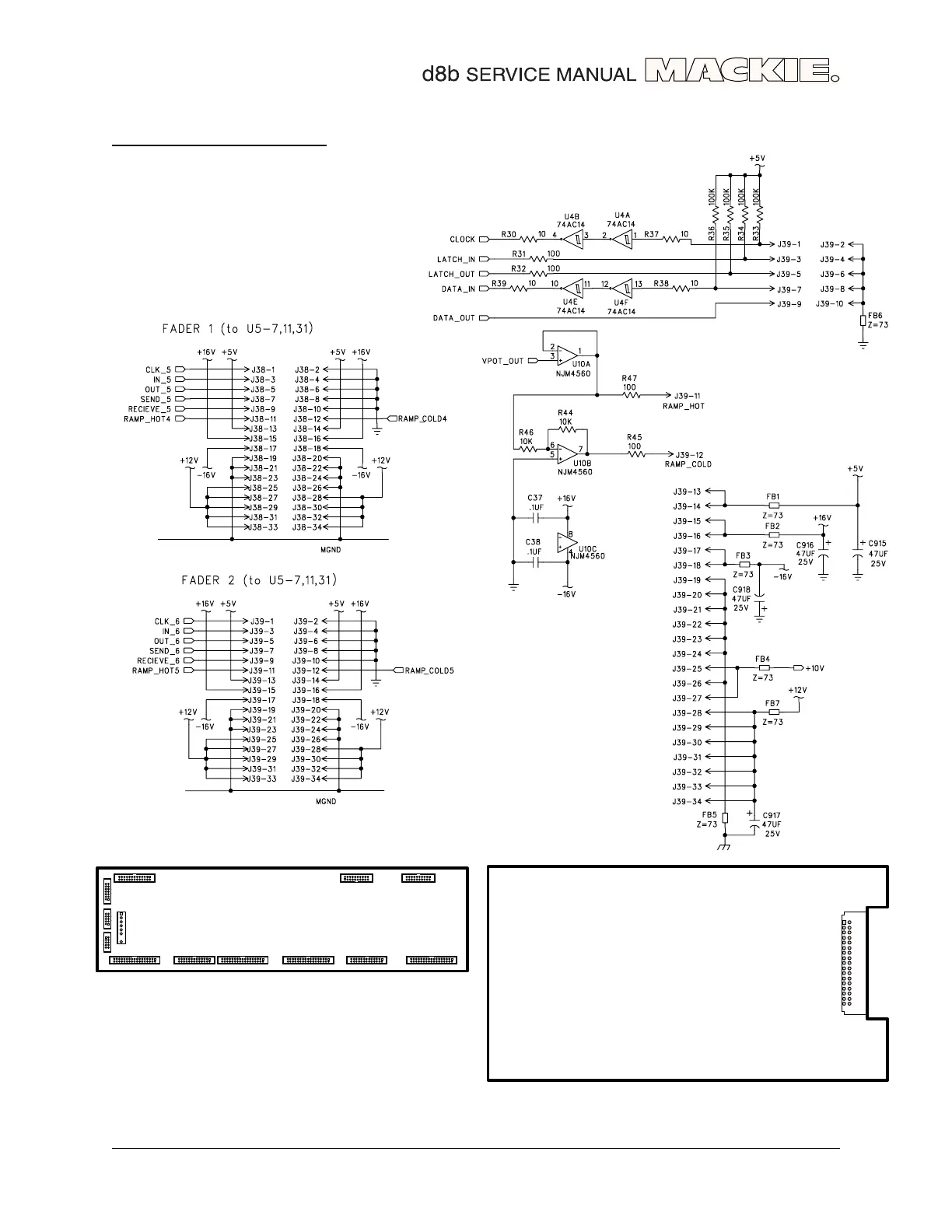

C-27
CONNECTORS
CONNECTORS
J39
8X FADER
124
J35 J36 J40 J39 J37 J38
J31J32
J28
J27
J41
J26
J34
BRAIN 136
MGND=MOTOR GROUND
originating all the way back from the Remote CPU's power supply
J38 and J39
Note that J38 on the Brain
board, connects to J39 on
Fader 1.
J39 on the Brain board
connects to J39 on Fader 2.
